AgiBot D1 Ultra
Description

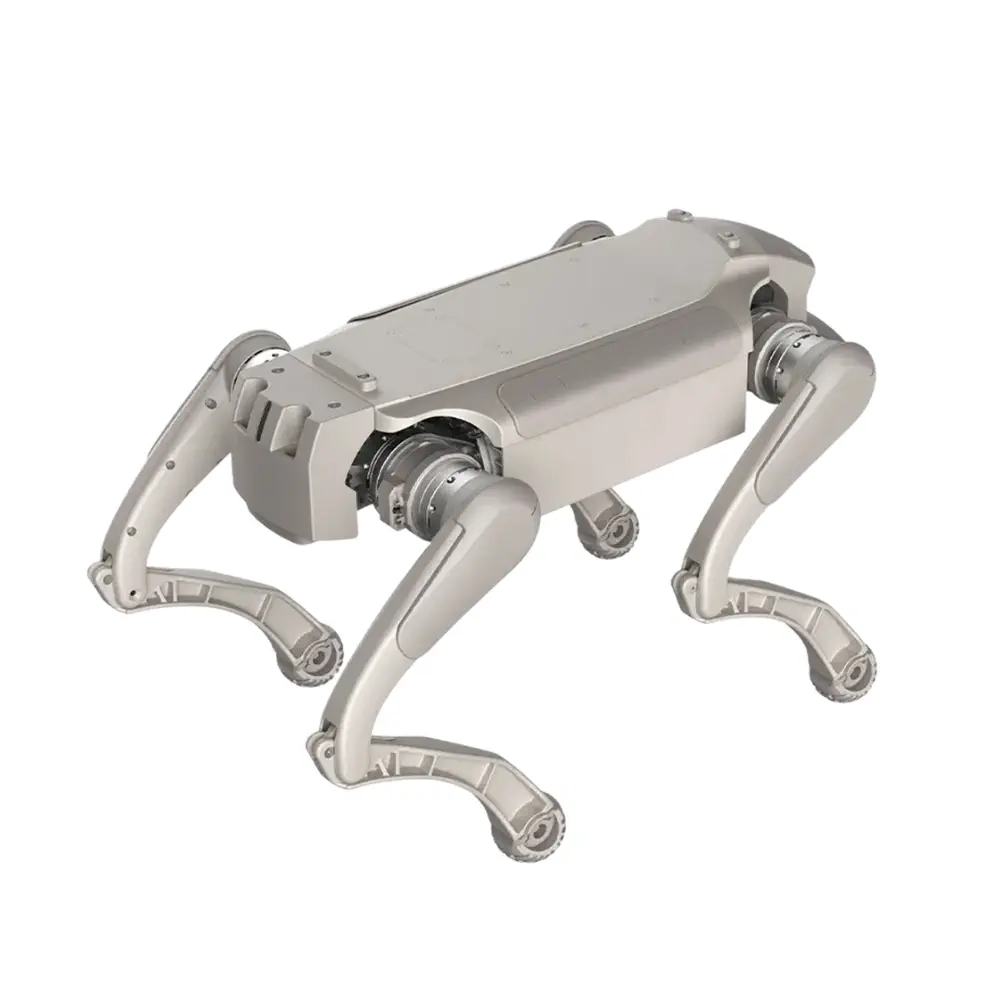

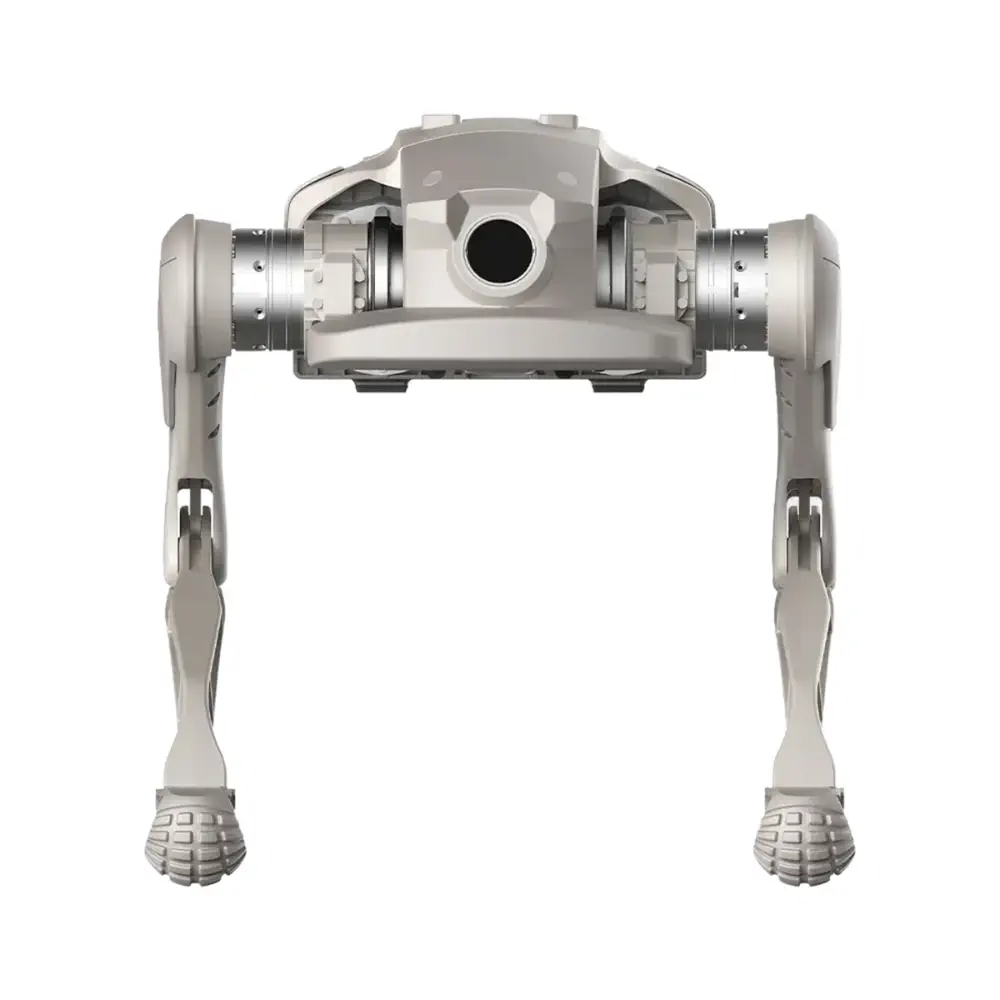

- AgiBot D1 Ultra Industrial Quadruped Robot Dog
- IP54-rated weatherproof chassis built for harsh and demanding field environments
- RL-based reinforcement learning gait control for autonomous all-terrain locomotion
- Open SDK with Ethernet, USB, 12V/24V power, SBUS, and UART expansion interfaces
- Up to 3.7 m/s speed, 8 kg static payload, and 6 km unloaded operational range
- 200-hour stable operating time in extreme environments with dual-encoder joints
AgiBot D1 Ultra Industrial Quadruped Robot Dog is a ruggedized compact quadruped robot developed by AGIBOT for deployment in demanding field, industrial, and specialized operational contexts. Unlike the D1 Pro and EDU platforms, it is engineered around a higher ingress protection rating and a structural design built to withstand splashing, damp, muddy, and sandy environments over extended operating periods. Its reinforcement learning-based gait control system enables autonomous adaptation to complex terrain, maintaining self-balancing, disturbance rejection, and anti-tipping stability without operator input. The D1 Ultra is purpose-built for applications including security inspection, emergency response, special operations, and field data collection where environmental durability is a baseline requirement.
The platform's high-torque joint motors deliver consistent performance under heavy loads and repeated impact cycles, with a dual-encoder control architecture that requires no zero-position calibration at startup. An open SDK and a full suite of standardized expansion ports make the D1 Ultra compatible with a wide range of third-party modules including LiDAR, depth cameras, RTK positioning, 4G/5G connectivity, and image transmission systems. URDF modeling support enables pre-deployment testing and algorithm validation within Isaac Sim and MuJoCo simulation environments. As an autonomous robot platform rated for sustained use in extreme conditions, the D1 Ultra is designed for operators, integrators, and organizations that require a field-deployable quadruped with both robust mobility and open development access.
Application Scenarios
Scientific Research and Education
Security Patrol
SPECS
| Specification | Details |
|---|---|
| Brand Model | AGIBOT D1 Ultra |
| Product Positioning | Compact yet Powerful — Industry Grade |
| Application Scenarios | Emergency rescue, security, inspection, education, entertainment |
| Standing Dimensions | 630mm × 360mm × 420mm |
| Folded Dimensions | 670mm × 435mm × 145mm |
| Operation And Control Capabilities | Standard RL-based operation and control |
| Maximum Speed | 3.7m/s |
| Effective Payload | 5kg |
| Range/Mileage | 6 ± 1 km |
| Protection Level | IP54 |
| Stable Operating Time in Extreme Environments | 200h |
| Joint Motor Peak Torque | About 48N·m |
| Joint Control Mode | Dual encoding |
| Expansion Interface | Ethernet port, USB port, power port, SBUS port, UART port |
| Supported Expansion | 3D radar, depth camera, RTK, 4G module, image transmission module, follow-up module, application layer loading, etc. |
