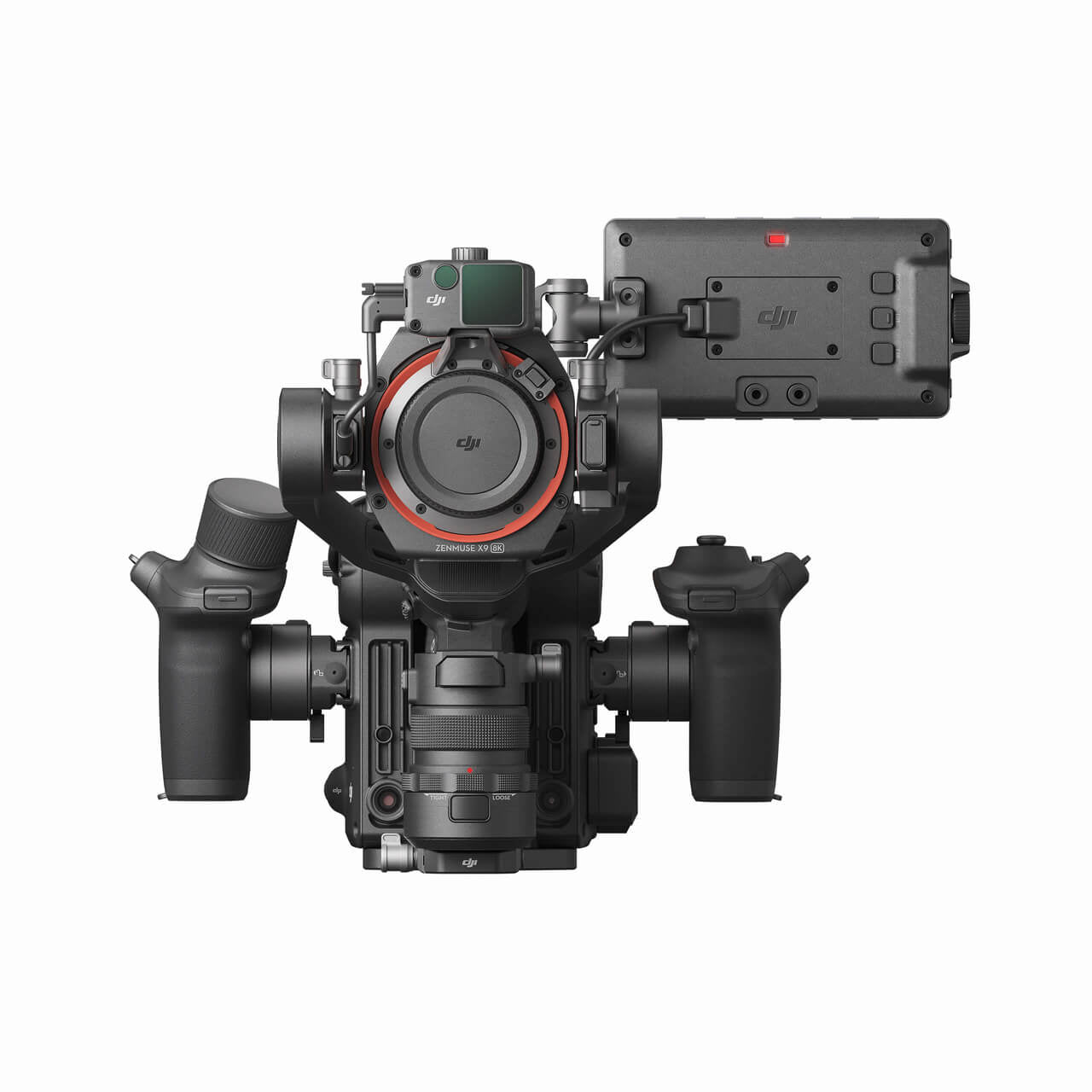

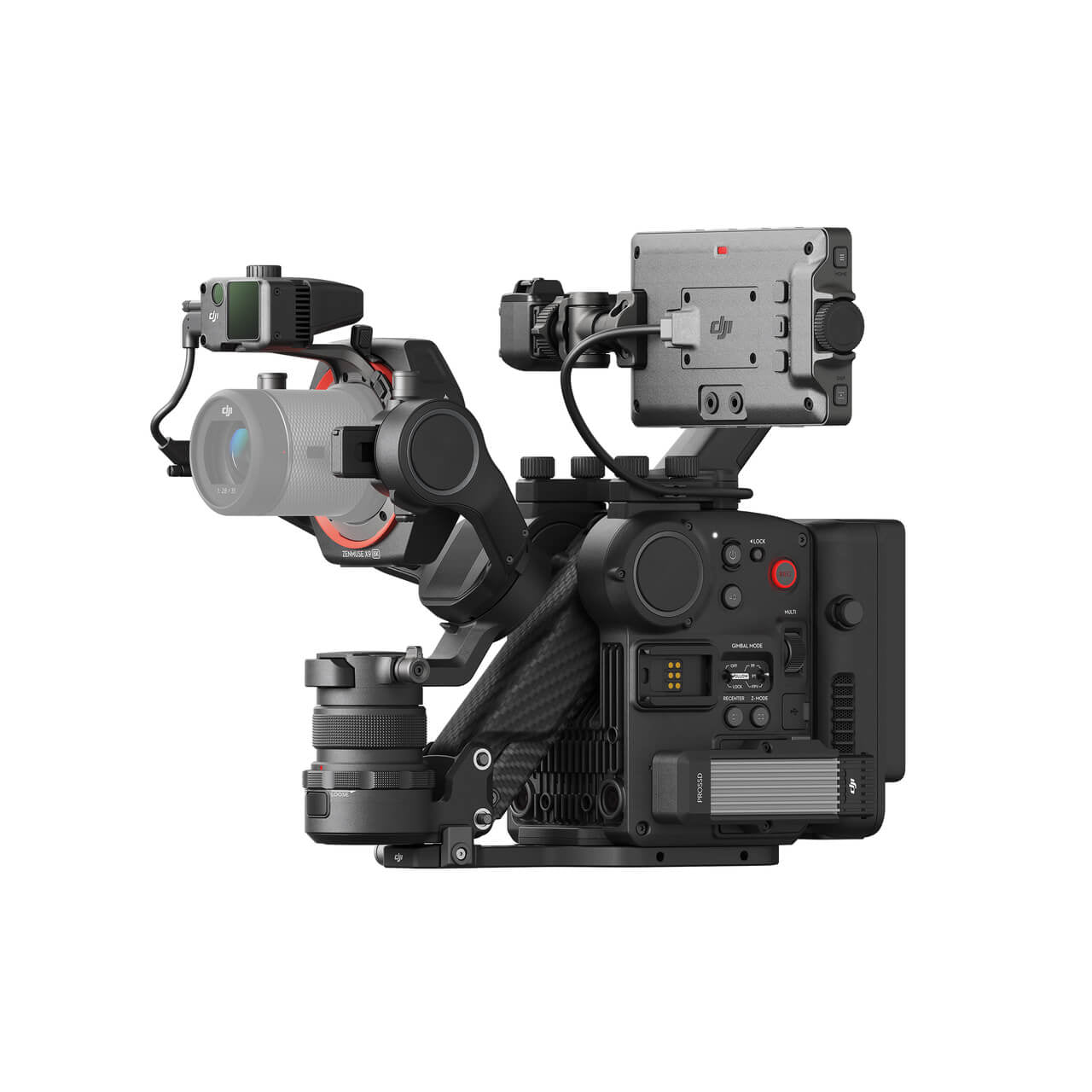

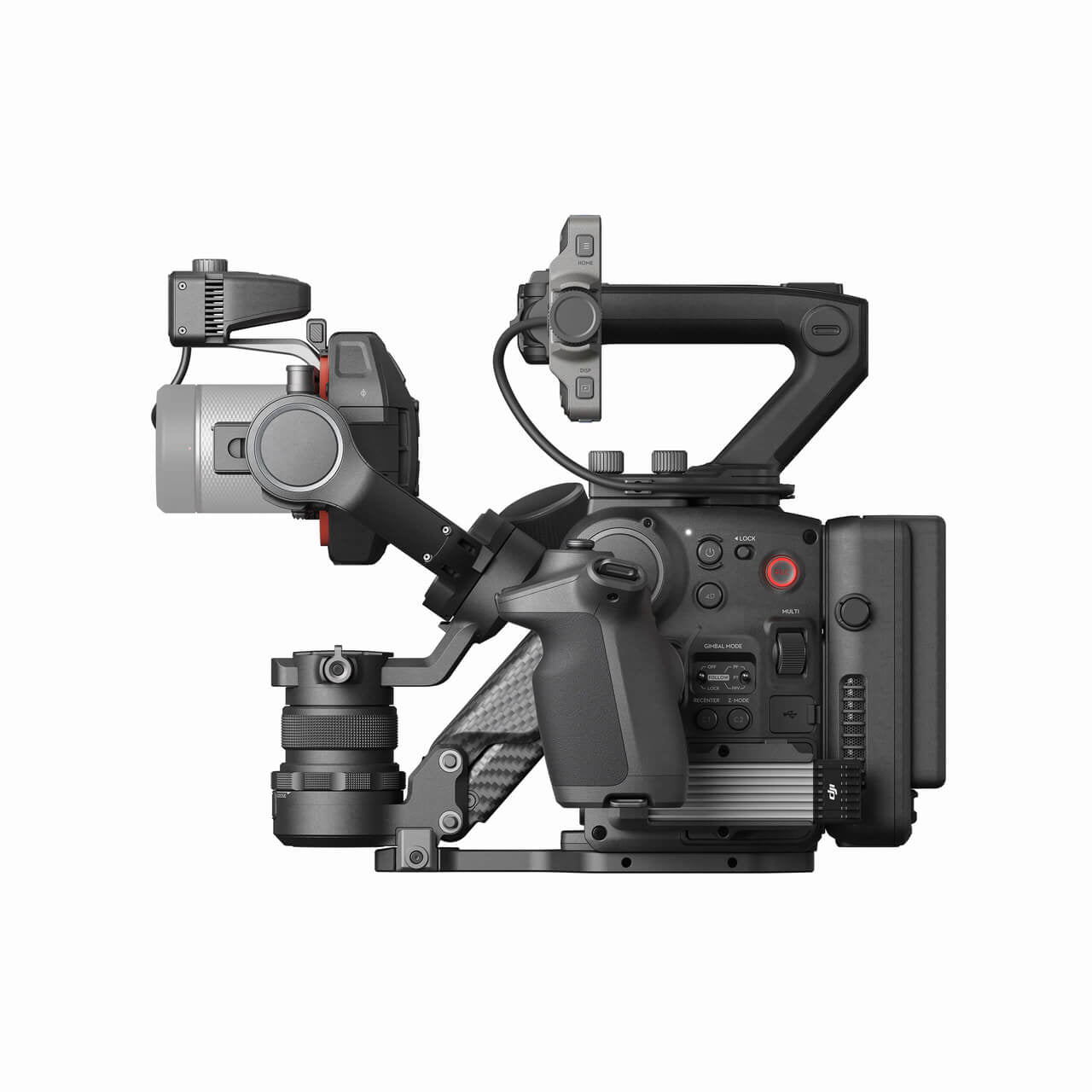

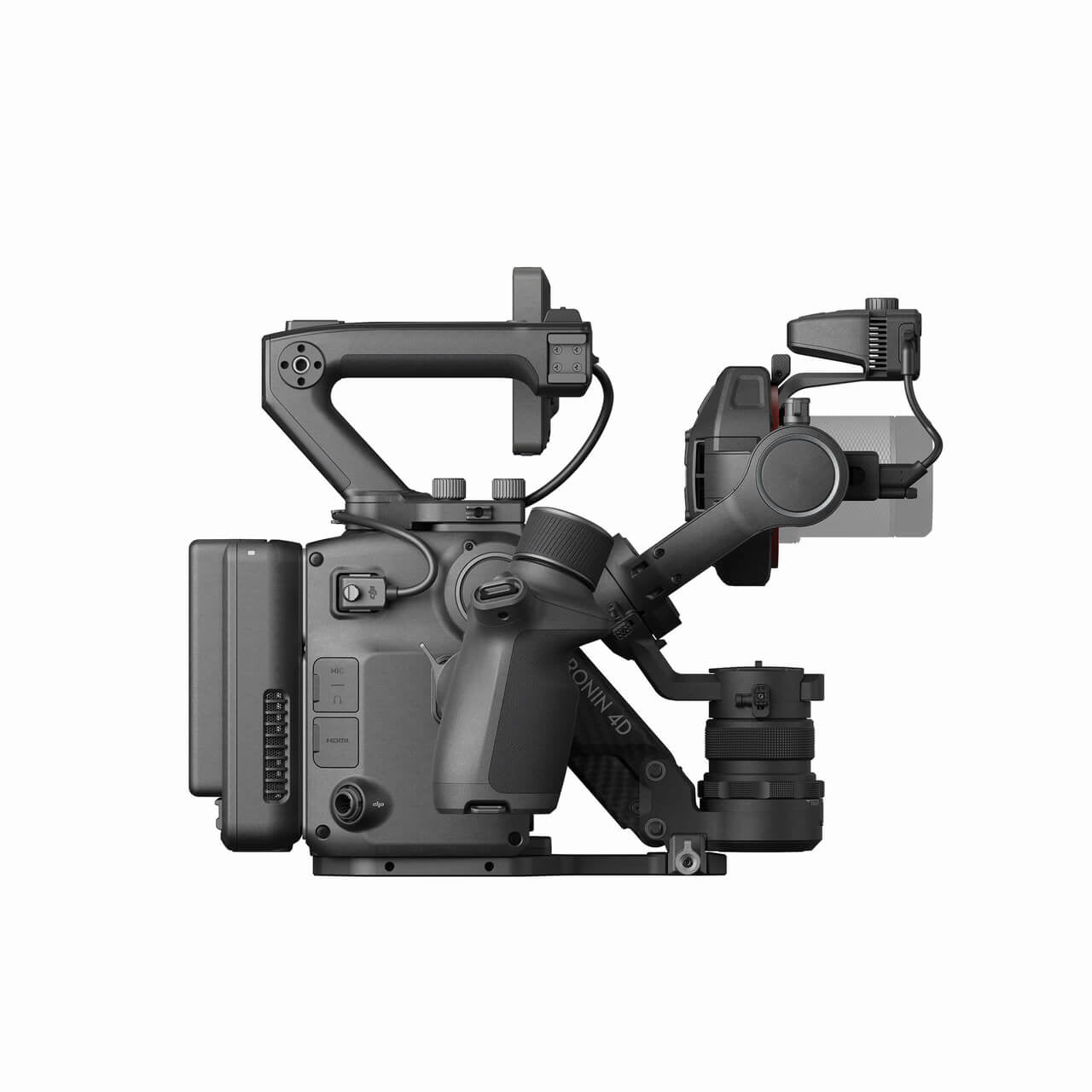

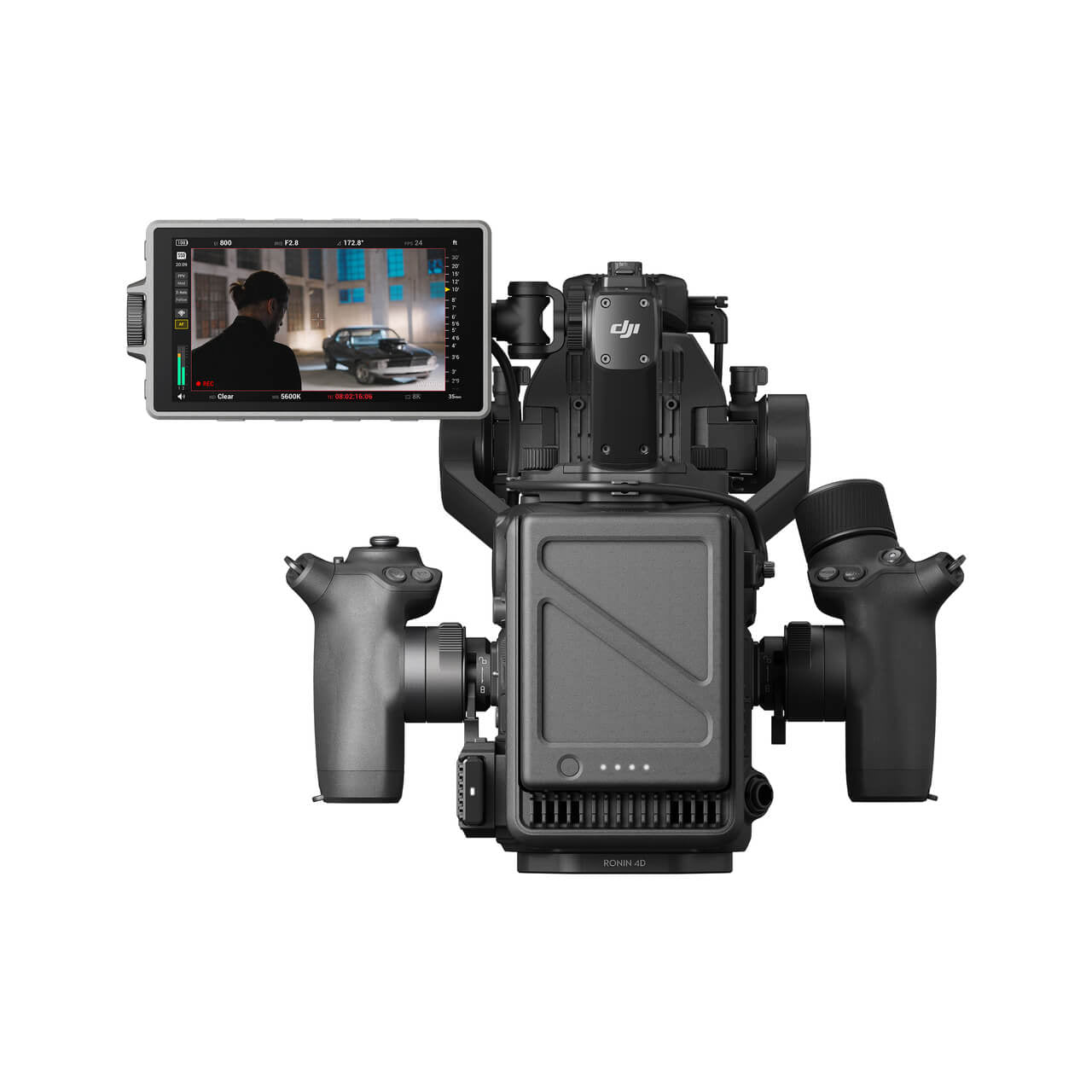

DJI Ronin 4D-8K
Key Features
- Highly Integrated Modular Design
- Full-Frame Gimbal Camera
- 8K/75fps Internal RAW Recording
- 4-Axis Active Stabilization
- LiDAR Focusing
- Wireless Transmission and Control System

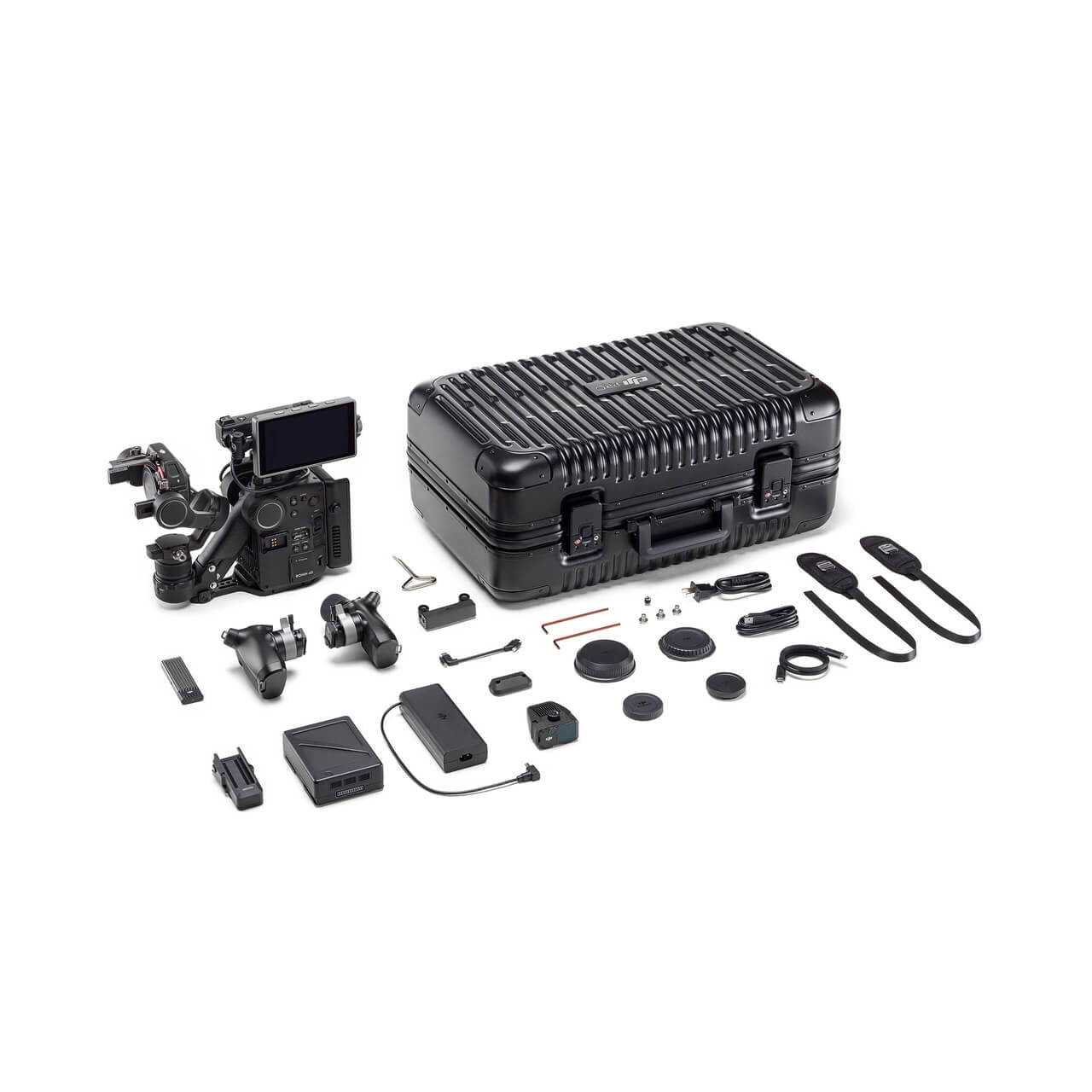

In the Box
- Zenmuse X9-8K Gimbal Camera × 1
- Main Body × 1
- LiDAR Range Finder × 1
- DL Mount × 1
- Left Hand Grip × 1
- Right Hand Grip × 1
- Top Handle × 1
- High-Bright Main Monitor × 1
- PROSSD 1TB × 1
- PROSSD Mount × 1
- TB50 Battery Mount × 1
- Power Adapter × 1
- TB50 Charging Adapter × 1
- AC Power Cable × 8
- USB-A to USB-C Cable × 1
- USB-C to USB-C Cable × 1
- Base Plate × 1
- Hand Grip Extended Control Sticks × 1
- 3mm Ball-End Hex Key × 1
- 1.5mm Ball-End Hex Key × 1
- 10mm 1/4"-20 Screw × 3
- Flat Head Screwdriver × 1
- DL Mount Body Cap × 1
- X9 Gimbal Base Cap × 1
- DX Mount Body Cap × 1
- DX Mount Lens Cap × 1
- Ronin 4D Gimbal Base Cap × 1
- TB50 Intelligent Battery × 1
- LiDAR Range Finder/Focus Motor Cable × 1
- Left Hand Grip Strap × 1
- Right Hand Grip Strap × 1
- Ronin 4D Carrying Case × 1
- X9 Counterweight (106g) x 1
Take a Closer Look
-
Full-frame 8K/60fps & 4K/120fps
Zenmuse X9 supports internal recording of Apple ProRes RAW, ProRes 4444 XQ, ProRes 422 HQ, ProRes 422 LT, and H.264 video, [1] and up to 8K/60fps and 4K/120fps full-frame video recording. It also supports the ACES workflow.
-
Dual-native ISO 800/4000 [2]
X9-8K defaults to EI 320/1600. With Dynamic Range Expansion on, X9-8K can support EI 800/4000, while X9-6K supports EI 800/5000, allowing it to capture footage with exquisite detail and minimal noise.
-
Built-In 9-Stop Physical ND Filters
X9 has 9-stop built-in physical ND filters (ND 2 to ND 512, or ND 0.3 to ND 2.7) that can be quickly and easily switched thanks to a motorized internal system.
-
DL/E/L/PL/M Interchangeable Lens Mount
X9 supports DJI's proprietary DL mount, as well as Leica L, Leica M, Sony E, ARRI PL, and more. [3] Lenses compatible with these mounts can also be used with X9. [4]
-
Autofocus on Manual Lenses
With the LiDAR focusing system and focus motor, autofocus is available even on manual lenses. [4] In Automated Manual Focus mode, [5] the focus wheel will rotate in sync as the focus point changes, but cinematographers can take manual control at any point.
-
4-Axis Active Stabilization on Par with a Dolly
The Z-Axis effectively eliminates vertical camera shake and works with visual sensors and ActiveTrack Pro to let you create smooth, stable footage effortlessly.
-
Up to 20,000-foot Wireless Transmission and Control Range [6]
O3 Pro Video Transmission Technology adds DFS frequency bands and enables 1080p/60fps video transmission. It supports one transmitter with multiple receivers and can remotely control gimbal, focusing, and camera settings.
