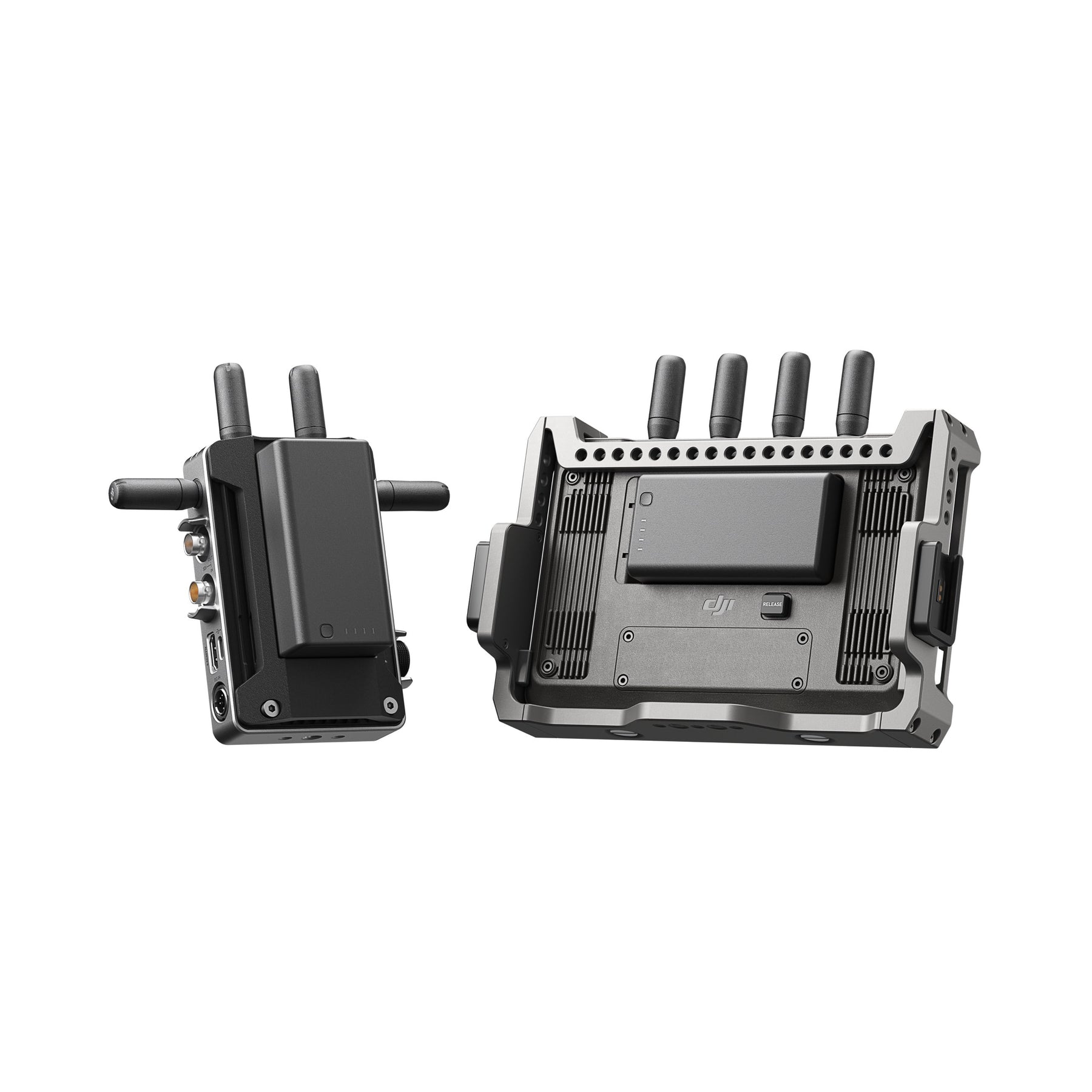

DJI Transmission Combo

• 20,000ft 1080p/60fps Transmission
• Seamless Auto Frequency Hopping
• End-to-End Ultra-Low Latency
• Integrated Wireless Receiver
• Gimbal/Focus/Camera Control
• Independent Recording and Playback

Specs
Specifications
Weight
Video Transmitter Weight: Approx. 350 g / 0.77 lbs (excluding antennas)
High-Bright Remote Monitor Weight: Approx. 727 g / 1.6 lbs (excluding antennas)
Dimensions
Video Transmitter: 127×87×26 mm (L×W×H, excluding antennas)
High-Bright Remote Monitor: 213×135×51 mm (L×W×H, excluding antennas)
Operating Frequency
Non DFS Frequency Band:
2.4000-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz

DFS Frequency Band:
5.250-5.350 GHz
5.470-5.600 GHz
5.650-5.725 GHz"
Transmitter Power (EIRP)
2.4000-2.4835 GHz:
<33 dBm (FCC)
<20 dBm (SRRC/CE/MIC)

5.150-5.250 GHz:
<23 dBm (FCC/SRRC/MIC)

5.250-5.350 GHz:
<30 dBm (FCC)
<23 dBm (SRRC/MIC)

5.470-5.600 GHz, 5.650-5.725 GHz:
<30 dBm (FCC)
<23 dBm (CE/MIC)

5.725-5.850 GHz:
<33 dBm (FCC/SRRC)
<14 dBm (CE)
Max Bandwidth
40 MHz
Max Bitrate
50 Mbps
Power Consumption
11 W
Power Supply Voltage
6 to 18 V
Output Voltage
Power Output Port: 6 to 18 V
Operating Time
Video Transmitter: 3 hours 40 minutes [1]
High-Bright Remote Monitor: 2 hours [1]
Input Video Format
3G SDI: YCbCr 4:2:2 10-bit
HDMI RGB 4:4:4
1080p: 23.98/24/25/29.97/30/50/59.94/60fps
1080i: 50/59.94/60fps
720p: 50/59.94/60fps
Output Video Format
3G SDI: YCbCr 4:2:2 10-bit
1080p: 23.98/24/25/29.97/30/50/59.94/60fps
1080i: 50/59.94/60fps
720p: 50/59.94/60fps
Input Audio Format
SDI embedded, HDMI embedded
Output Audio Format
PCM
Video Transmission System
O3 Pro
Max Video Bitrate
50 Mbps
Video Transmission Latency
68 ms [2]
100 ms [3]
Video Coding Format
H.264
Max Transmission Distance
6 km (FCC) [4]
4 km (CE/SRRC/MIC) [4]
Max Bandwidth
40 MHz
Operating Temperature
-10° to 45° C (14° to 113° F)
Mirror Control Mode Supported Camera Models
ZV1/A7 III/A7S III/A7M III/A7R III/A7R IV/A7 IV/FX3/A7S II/A6600/A6400 and all Sony cameras that support BRAVIA (HDMI control).
