Zenmuse P1
- Accuracy without GCPs: 3 cm horizontally / 5 cm vertically
- 3 km² covered in a single flight
- 45 MP Full-frame Sensor
- 3-axis Stabilized Gimbal, supports Smart Oblique Capture
- Global Mechanical Shutter, Shutter Speed 1/2000 Seconds
- TimeSync 2.0 - synchronization at the microsecond level

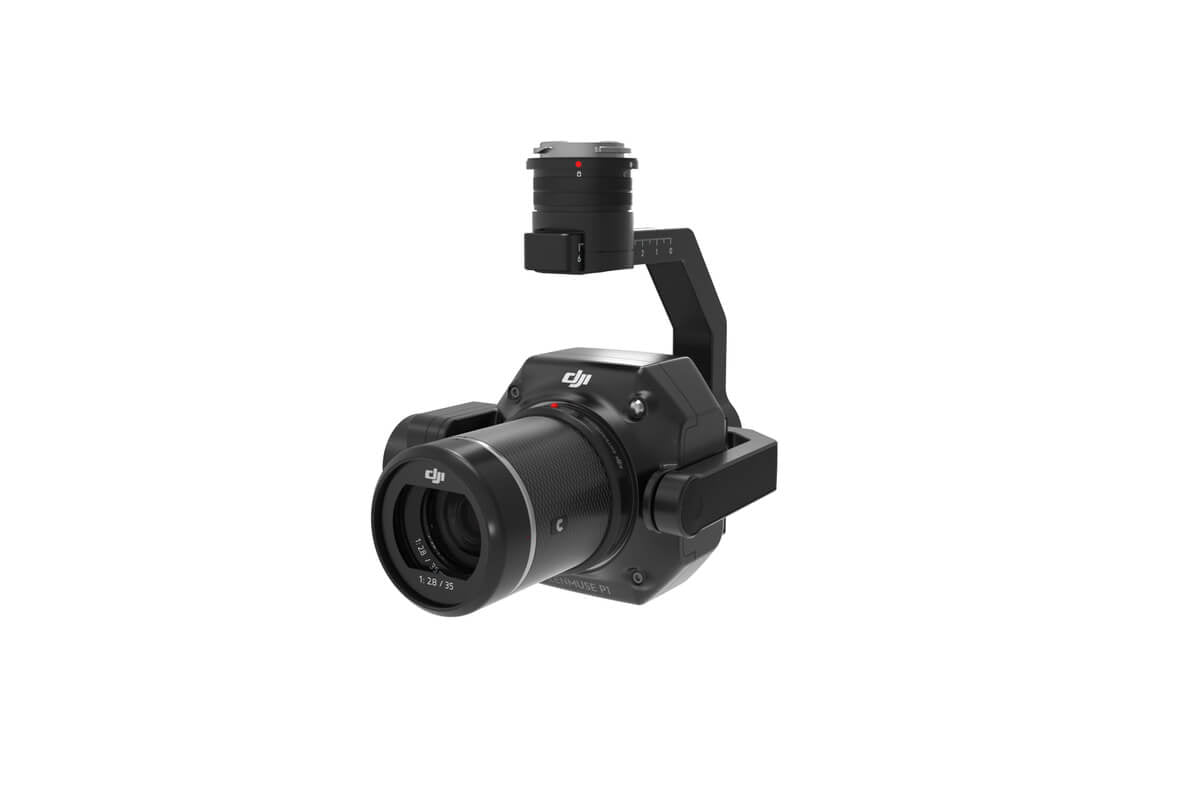

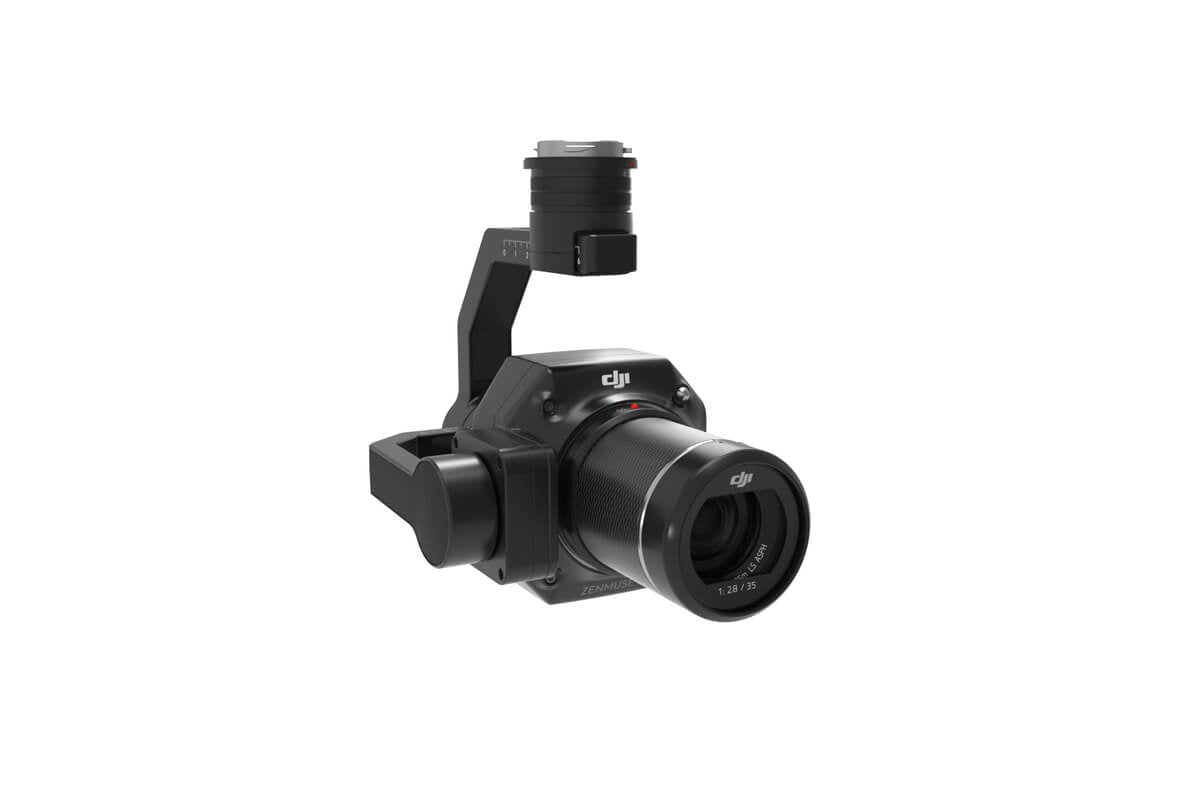

The Zenmuse P1 integrates a 45 MP full-frame sensor with interchangeable fixed-focus lenses on a 3-axis stabilized gimbal. Designed for photogrammetry flight missions, it takes efficiency and accuracy to a whole new level with features like Smart Oblique Capture and Real-time Mapping. Compatible with Matrice 300 RTK and DJI Terra.
Accuracy without GCPs: 3 cm horizontally / 5 cm vertically
3 km² covered in a single flight
45 MP Full-frame Sensor
3-axis Stabilized Gimbal, supports Smart Oblique Capture
Global Mechanical Shutter, Shutter Speed 1/2000 Seconds
TimeSync 2.0 - synchronization at the microsecond level
Gimbal and Camera × 1
SD Card (128GB) × 1
Storage Case × 1
Camera Body Cap × 1
Lens Rear Cap × 1
Lens Cleaning Cloth × 1
Dimensions: 198×166×129 mm
Weight: Approx. 800 g
IP Rating: IP4X

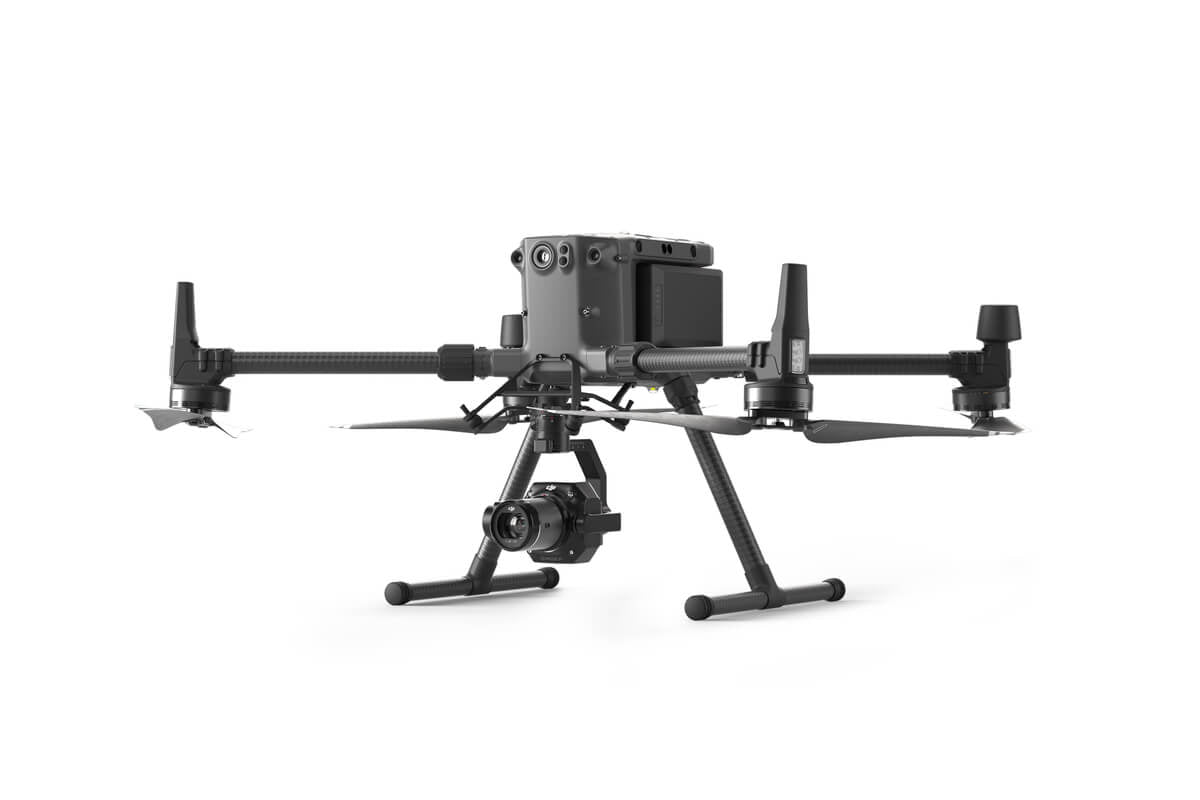

Supported Aircraft: Matrice 300 RTK
Power: 20 W
Operating Temperature Range: -20° to 50° C (-4° to 122° F)
Storage Temperature Range: -20° to 60° C (-4° to 140° F)
Absolute Accuracy: Horizontal: 3 cm, Vertical: 5 cm
Shutter Speed: Mechanical Shutter Speed: 1/2000 -1 s, Electronic Shutter Speed: 1/8000-1 s
Matrice 300 RTK
