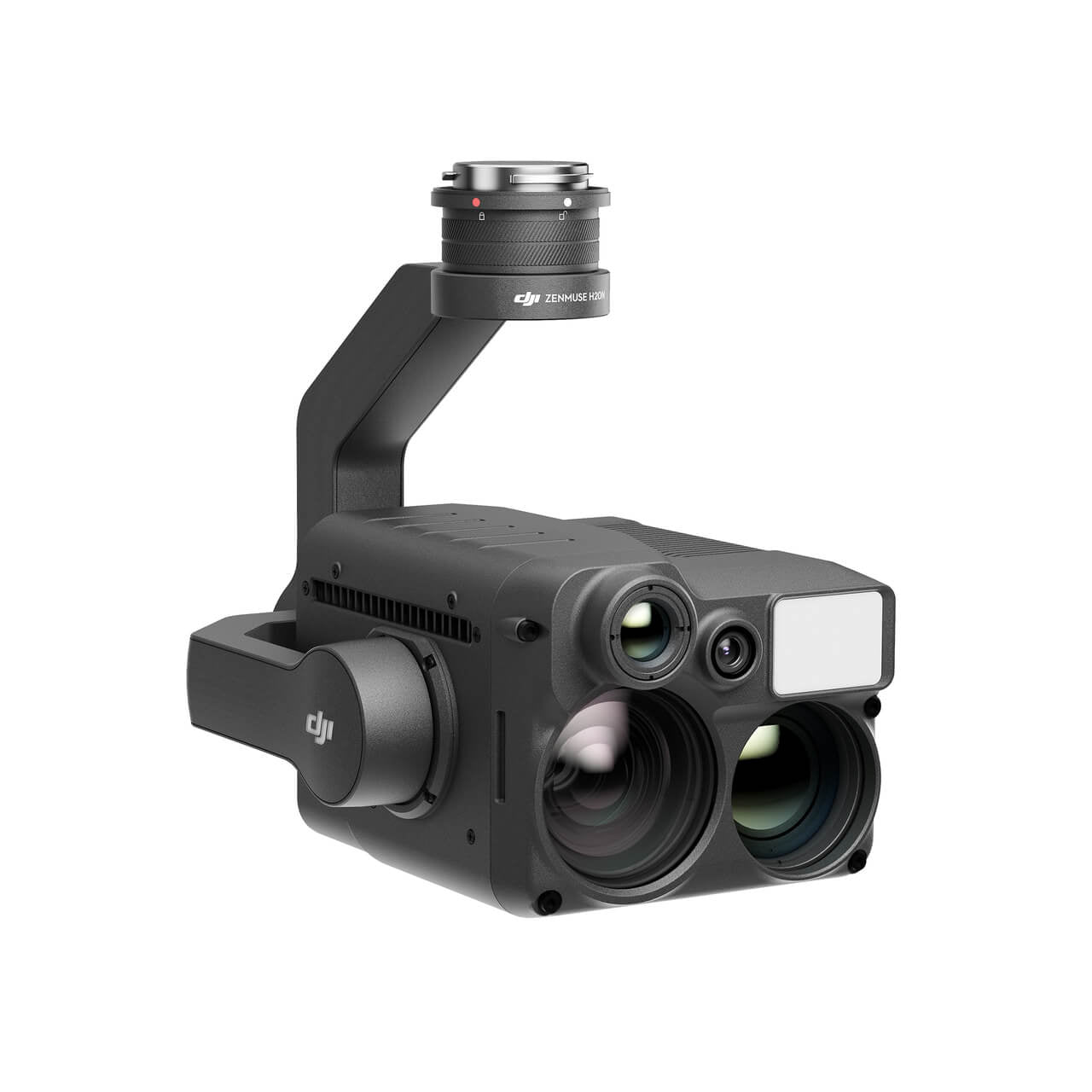

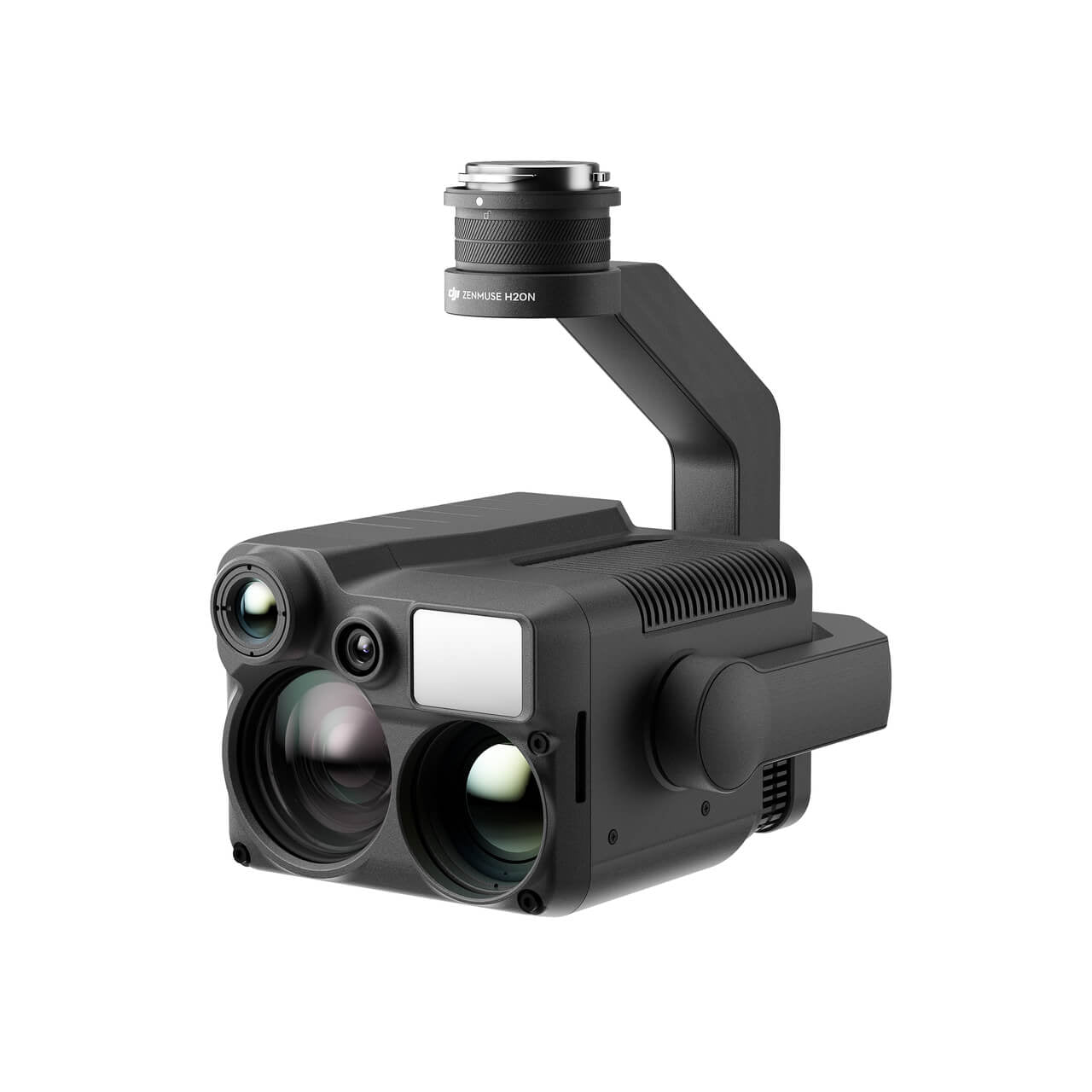

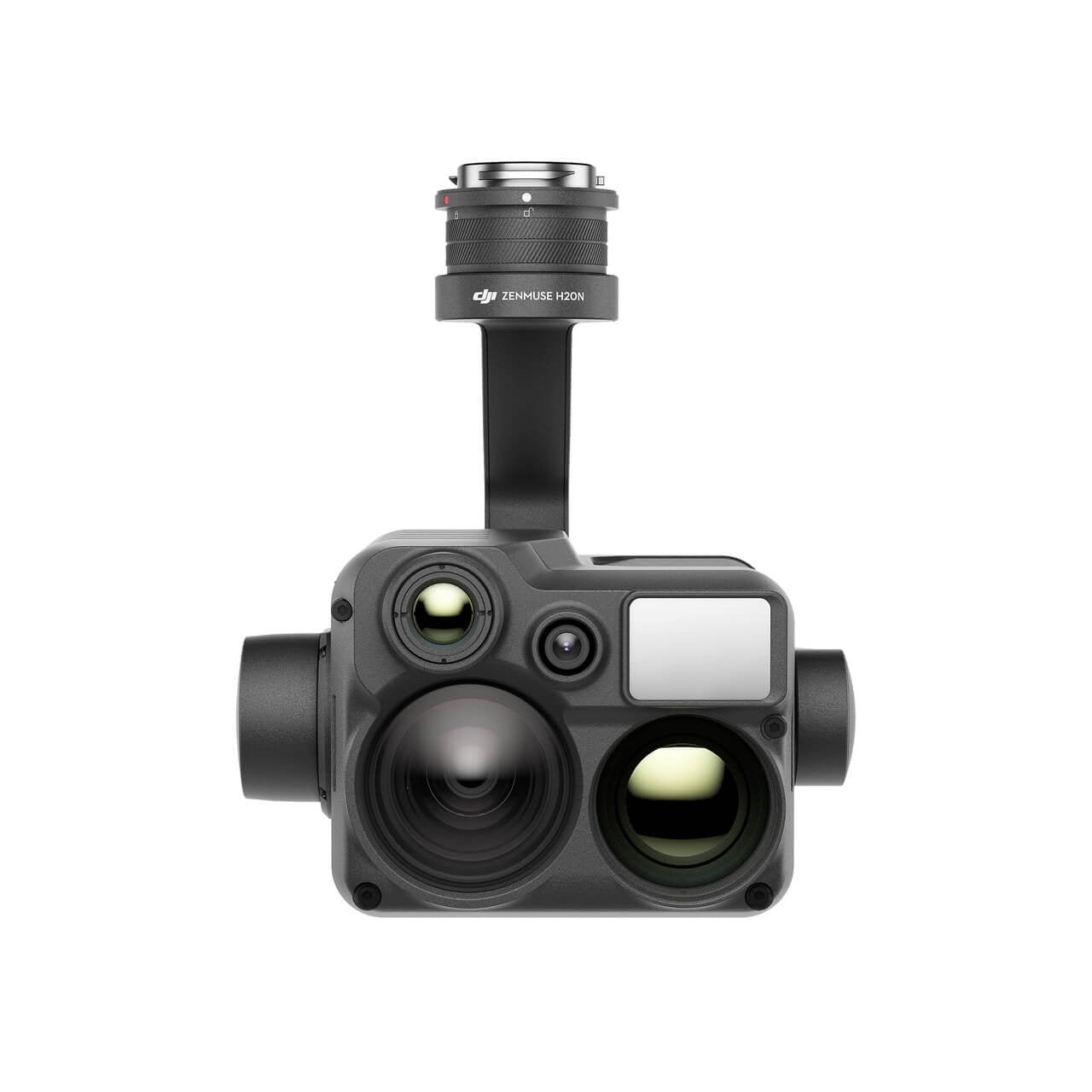

Zenmuse H20N

• Starlight Night Vision
• 20× Hybrid Optical Zoom
• 640×512 px Thermal Camera,
• Laser Rangefinder 1200 m Max Range
• Synchronized Split-Screen Zoom
• Intelligent Night Scene Enhancement

Whats Included:

• Gimbal and Camera × 1
• MicroSD card（32GB）× 1
• Storage Case × 1
• Lens Cleaning Cloth × 1

Specs
General
Product Name
Zenmuse H20N
Dimensions
178x135x161 mm
Weight
878±5 g
Protection Rating
IP44
Laser Safety
Class 1M (IEC 60825-1:2014)

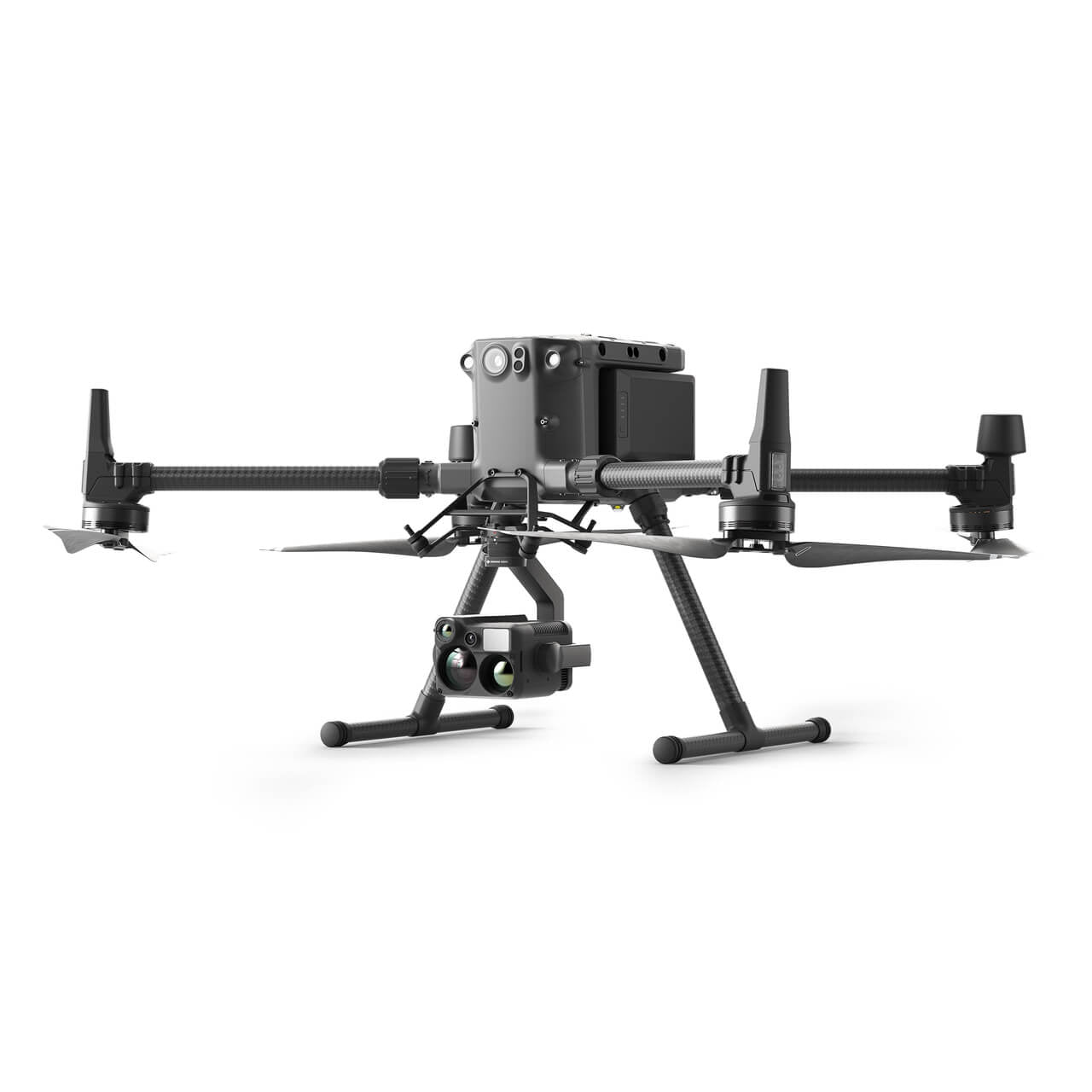

Supported Aircraft
Matrice 300 RTK
Gimbal
Angular Vibration Range
±0.01°
Mount
Detachable
Zoom Camera
Sensor
1/1.8" CMOS; Effective Pixels: 4M
Lens
Focal Length: 6.8-119.9 mm (equivalent: approximately 32.7-574.5 mm)
Aperture: f/2.8-f/11 (day); f/1.6-f/11 (night)
Focus: 1 m to ∞ (wide); 8 m to ∞ (tele)
Wide Camera
Sensor
1/2.7" CMOS; Effective Pixels: 2M
Lens
DFOV: 73.6°
Focal Length: 4.5 mm (equivalent: approximately 29 mm)
Aperture: f/2.8
Focus: 1 m to ∞
Tele Infrared Thermal Camera
Thermal Imager
Uncooled VOx Microbolometer
Lens
DFOV: 12.5°
Focal Length: 44.5 mm (equivalent: approximately 196 mm)
Aperture: f/1.2
Focus: 45 m to ∞
Wide Infrared Thermal Camera
Thermal Imager
Uncooled VOx Microbolometer
Lens
DFOV: 45.5°
Focal Length: 12 mm (equivalent: approximately 53 mm)
Aperture: f/1.0
Focus: 5 m to ∞
Laser Range Finder
Wavelength
905 nm
Maximum Power
3.5 mW
Single Pulse Width
6 ns
Measuring Accuracy
± (0.2 m + target distance x 0.15%)
Measuring Range
3-1,200 m (0.5 x 12 m vertical surface with 20% reflectivity)
Storage
Supported microSD Cards
Supports a UHS-I Speed Grade 3 microSD card with a capacity of up to 128 GB
Supported File System
exFAT
Environment
Operating Temperature
-20° to 50° C (-4 to 122°F)
Storage Temperature
-20° to 60° C (-4 to 140°F)
