•For Matrice 300 RTK Drones
•Provides Piloting & Gimbal Control
•Up to 9.32 Mile Range via OcuSync
•Stream Drone Footage on 5.5" FHD Display
•Return-to-Home & Flight Mode Functions
•HDMI Port to Output Drone Footage
•Up to 4.5 Hours of Operation
•Supports Dual-Band Wi-Fi 5 (802.11ac)
•Supports Bluetooth 4.2
•Neck Lanyard Included

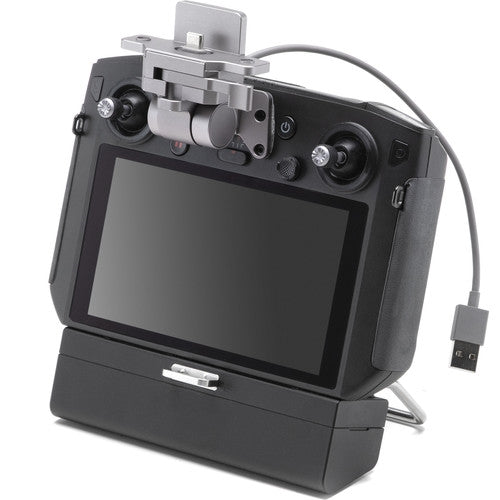

Pilot your Matrice and its gimbal camera with this Smart Controller Enterprise for Matrice 300 RTK from DJI. Compatible with the Matrice 300 RTK drone, this controller utilizes OcuSync technology to transmit instructions from up to 9.32 miles away. It can also receive and display drone camera footage on a built-in 5.5" FHD (1920 x 1080) display. The controls provide twin sticks and buttons to operate an array of functions, such as RTH, flight pause, and flight mode selection.
Output drone footage to an external display via the remote's HDMI port
Up to 2.5 hours of operation via the built-in battery, or up to 4.5 hours when used with the included WB37 external battery
Wireless support for Bluetooth 4.2 and dual-band Wi-Fi 5 (802.11ac)
Go hands-free when needed while still keeping the remote at the ready with the included lanyard
Built-in storage slot for an included extra pair of control sticks
Integrated carry handle
Resolution: 1920 x 1080
Brightness: 1000 cd/m2
|Maximum Transmission Distance
NCC / FCC: 9.32 Miles / 15 km
CE / MIC: 5 Miles / 8 km
SRRC: 5 Miles / 8 km
2.4 to 2.4835 GHz: 29.5 dBm (FCC), 18.5 dBm (CE), 18.5 dBm (SRRC), and 18.5 dBm (MIC)
5.725 to 5.850 GHz: 28.5 dBm (FCC), 12.5 dBm (CE), and 20.5 dBm (SRRC)
Built-In Battery: Up to 2.5 Hours
Built-In Battery with WB37 Battery: Up to 4.5 Hours
Type: 18650 Li-Ion
Capacity: 5000 mAh
Battery Life: Up to 2.5 Hours
Voltage: 7.2 V
Charge Type: Supports USB Charger Rated 12 V / 2 A
Rated Power: 17 W
Charge Time: Up to 2 Hours 15 Minutes (Using a USB Charger Rated 12 V / 2 A)
|External Battery Compatibility
Model: WB37 Intelligent Battery
Capacity: 4920 mAh
Battery Life: Up to 4.5 Hours (With Built-In Battery)
Voltage: 7.6 V
Up to 2 Hours and 15 Minutes
100 to 240 VAC
|Ports and Slots
Protocol: Bluetooth 4.2
Operation Frequency Range: 2.4 to 2.4835 GHz
Transmitter Power (EIRP): 4 dBm (FCC), (CE), (SRRC), and (MIC)
Protocols: Wi-Fi Direct, Wi-Fi Display, Wi-Fi 5 (802.11ac), and Wi-Fi with 2x2 MIMO
Operation Frequency Range: 2.4 to 2.4835 GHz, 5.15 to 5.25 GHz, and 5.725 to 5.850 GHz
Transmission Power (EIRP) 2.4 to 2.4835 GHz: 20.5 dBm (FCC) (MIC), 18.5 dBm (CE) and (SRRC)
Transmission Power (EIRP) 5.15 to 5.25 GHz: 14 dBm (FCC), (CE), (SRRC), and (MIC)
Transmission Power (EIRP) 5.725 to 5.85 GHz: 18 dBm (FCC) (SRRC), and 12 dBm (CE)
GPS and GLONASS
Power Supply Voltage/Current (USB Type-A): 5 V / 1.5 A
-4 to 104oF / -20 to 40oC
Less Than One Month: -22 to 140oF / -30 to 60oC
One Month to 3 Months: -22 to 113oF / -30 to 45oC
3 Months to 6 Months: -22 to 95oF / -30 to 35oC
Over 6 Months: -22 to 77oF / -30 to 25oC
41 to 104oF / 5 to 40oC
|Item Dimension (L"xW"xH")
8 x 5 x 8
