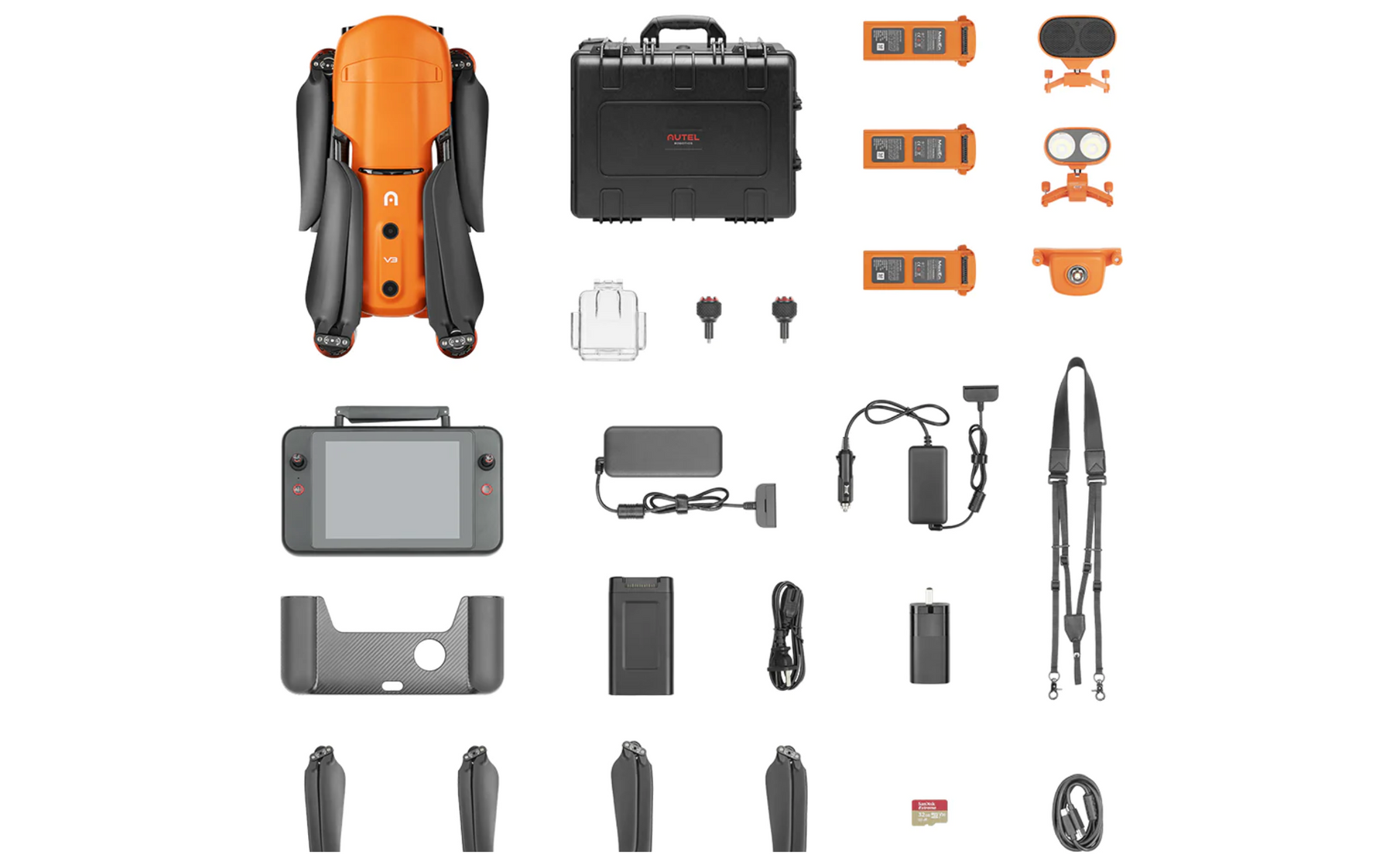

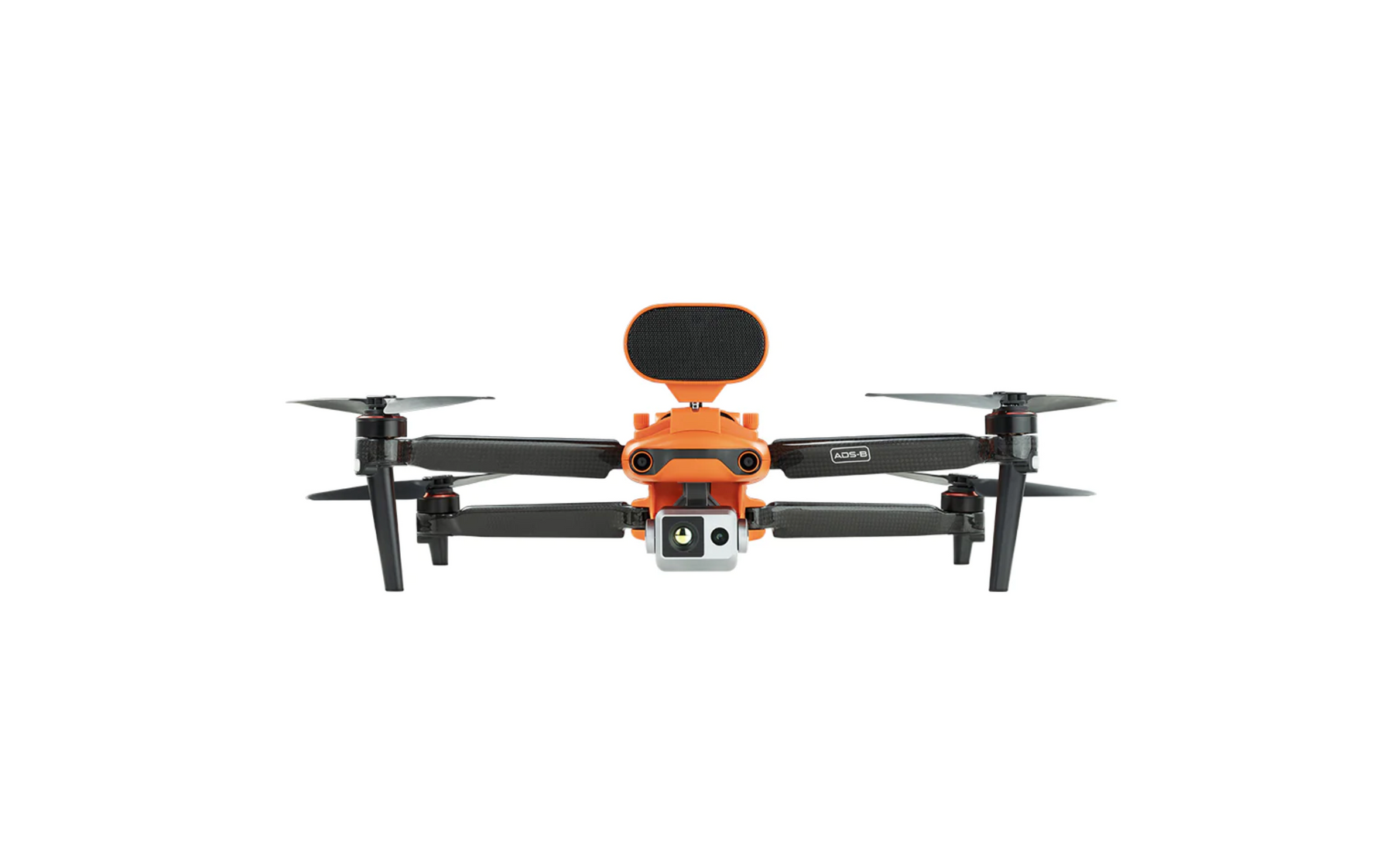

Autel EVO II Dual 640T Enterprise Bundle V3

Key Features:

• Dual Camera design with a thermal imaging sensor

• Thermal imaging sensor has a resolution of up to 640x512
• Support 10 Thermal color palettes, 30Hz refresh rate and Picture-in-Picture mode
• 13mm lens and 16x digital zoom capable of recognizing subjects at up to 100m
• Radiometric Temperature Detection
• With an expanded selection of accessories
• 360° obstacle avoidance with 19 groups of sensors
• 7.9" Smart Controller V3
• Dynamic Track 2.1
• Industry-leading 42 minutes flight time
• Transmission range of 9 miles
• 44 mph Max Speed


Aircraft
Takeoff Weight(Without Accessories) EVO II Dual 640T Enterprise：2.51 lbs (1136.5 g)
Max takeoff weight 2000 g
Diagonal Length 16.8 inches (427 mm)
Size(L*W*H) 245*130*111mm（folded）
506*620*111mm（unfolded）
Max Service Ceiling Altitude 4.3 miles (7000 m) MSL
Max Ascent Speed 18 mph (8 m/s) (Ludicrous)
Max Descent Speed 9 mph (4 m/s) (Ludicrous)
Max Level Flight Speed 45 mph (20 m/s) (Ludicrous)
Max angular velocity 120°/s
Max tilt angle 33° (Ludicrous)
Max Flight Time (no wind) 42 min（without accessories）
Max Hovering Time (no wind) 38 min（with strobe）
29 min（with spotlight）
34 min（with loudspeaker）
36 min（with RTK module）
Operating Temperature Range 14℉ to 104℉ (-10℃ to 40℃)
Max Wind Speed Resistance 39 - 46 mph (17-20 m/s)
Operating Frequency 2.400 GHz - 2.4835 GHz；
5.725GHz - 5.850 GHz
Hovering accuracy When RTK is enabled and working normally:
Vertical: ±0.1 m; Horizontal: ±0.1 m
Vertical: ±0.1 m (when the visual positioning is working normally);
±0.5 m (when GPS works normally)
Horizontal: ±0.3 m (when the visual positioning is working normally);
±1.5 m (when GPS works normally)
Internal storage 8GB
SD storage max. support 256GB (UHS-3 or Class 10)

Gimbal

Gimbal 3-axis stabilization
Mechanical range Tilt: -135° to +45°;
Pan: -100° to +100°
Controllable rotation range Tilt: -90° to +30°;
Pan: -90° to +90°
Max control speed (Tilt) 300°/s
Angular Vibration Range ±0.005°

Sensing System

Sensing system type Omnidirectional sensing system
Forward Accurate measurement range: 0.5-18 m
Effective sensing speed: <12m/s
Viewing angle: Horizontal: 60°, Vertical: 80°
Backward Accurate measurement range: 0.5-16 m
Effective sensing speed: <12m/s
Viewing angle: Horizontal: 60°, Vertical: 80°
Upward Accurate measurement range: 0.5-10 m
Effective sensing speed: <5m/s
Viewing angle: Horizontal: 65°, Vertical: 50°
Downward Accurate measurement range: 0.5-10 m
Effective sensing speed: <5m/s
Viewing angle: horizontal: 100°, vertical: 80°
Left and right Accurate measurement range: 0.5-10 m
Effective sensing speed: <5m/s
Viewing angle: horizontal: 65°, vertical: 50°
Operating Environment Forward, Backward and Sides:
Surface with clear pattern and adequate lighting (lux > 15)
Upward:
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.)
Downward:
Surface with clear pattern and adequate lighting (lux > 15)
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.)

Thermal Camera


Sensor Uncooled VOx Microbolometer
Lens FOV H33°V26°
Focal length 13mm
Zoom 1-16x
Sensor resolution 640*512
Pixel size 12μm
Wavelength range 8 - 14μm
Temperature range High gain mode: -20° to +150°
Low gain mode: 0° to +550°
Temperature measurement accuracy ±3℃ or ±3% of reading (whichever is greater)
@Environmental temperature-20℃~60℃
Accurate temperature
measurement distance 2-20 meters
Video resolution 640x512@30fps
Video format MOV / MP4 (Support H.264/H.265)
Camera resolution Infrared mode: 640*512
Picture-in-picture mode: 1920*1080, 1280*720
Photo mode Single shot
Burst shooting: 3/5 frames, 3 is the default
Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s
Photo format JPG (with irg file)

Visual Camera

Sensor 1/1.28"(0.8") CMOS; 50M effective pixels
Lens FOV: 85°
35 mm format equivalent focal length: 23 mm
Aperture: f/1.9
Focus range: 0.5 m to infinity (with auto focus)
ISO range Video: 100-64000
Photo: 100-6400
Shutter speed Photo mode: 1/8000 ~ 8s
Other: 1/8000 ~ 1/frame rates
Zoom 1-16x (up to 4x lossless zoom)
Photo mode Single shot/Burst shooting/AEB/Time Lapse/HDR imaging
Maximum photo size 8192*6144（4:3）
4096*3072（4:3）
3840x2160（16:9）
Image Format JPG (default) / DNG / JPG+DNG
Video format MOV / MP4
Video resolution 3840x2160P60/P50/P48/P30/P25/P24
2720x1528P60/P50/P48/P30/P25/P24
1920x1080P60/P50/P48/P30/P25/P24
Max bitrate 120Mbps
Supported file system FAT32/exFAT


Remote Controller & Transmission

Operating frequency 902-928MHz (FCC Only)
2.400-2.4835GHz
5.725-5.850GHz (non-Japan)
5.650-5.755GHz (Japan Only)
Transmission power FCC：≤33dBm
CE：≤20dBm@2.4G，≤14dBm@5.8G
SRRC：≤20dBm@2.4G，≤33dBm@5.8G/5.7G
Max Transmission Distance (unobstructed, free of interference) FCC：15km
CE：8km
Display screen 2048x1536 60fps
Battery 5800mAh
Operating time ~3 hours (Max. Brightness)
~4.5 hours (50% Brightness)
Charging time 90 minutes
Internal Storage ROM 128GB


Battery

Capacity 7100 mAh
Voltage 11.55 V
Battery type LiPo 3S
Energy 82 Wh
Weight 365 g
Charging temperature range 5℃ to 45℃
Storage temperature and humidity -10~30℃，65±20%RH
Recommended storage temperature 22-28℃
Max charging power 93W
Charging time 90 minutes



Charger

Input 100-240 V, 50/60 Hz, 1.5A
Output 13.2 V ⎓ 5 A
5V⎓3A 9V⎓2A 12V⎓1.5A
Voltage 13.2±0.1V
Rated power 66W

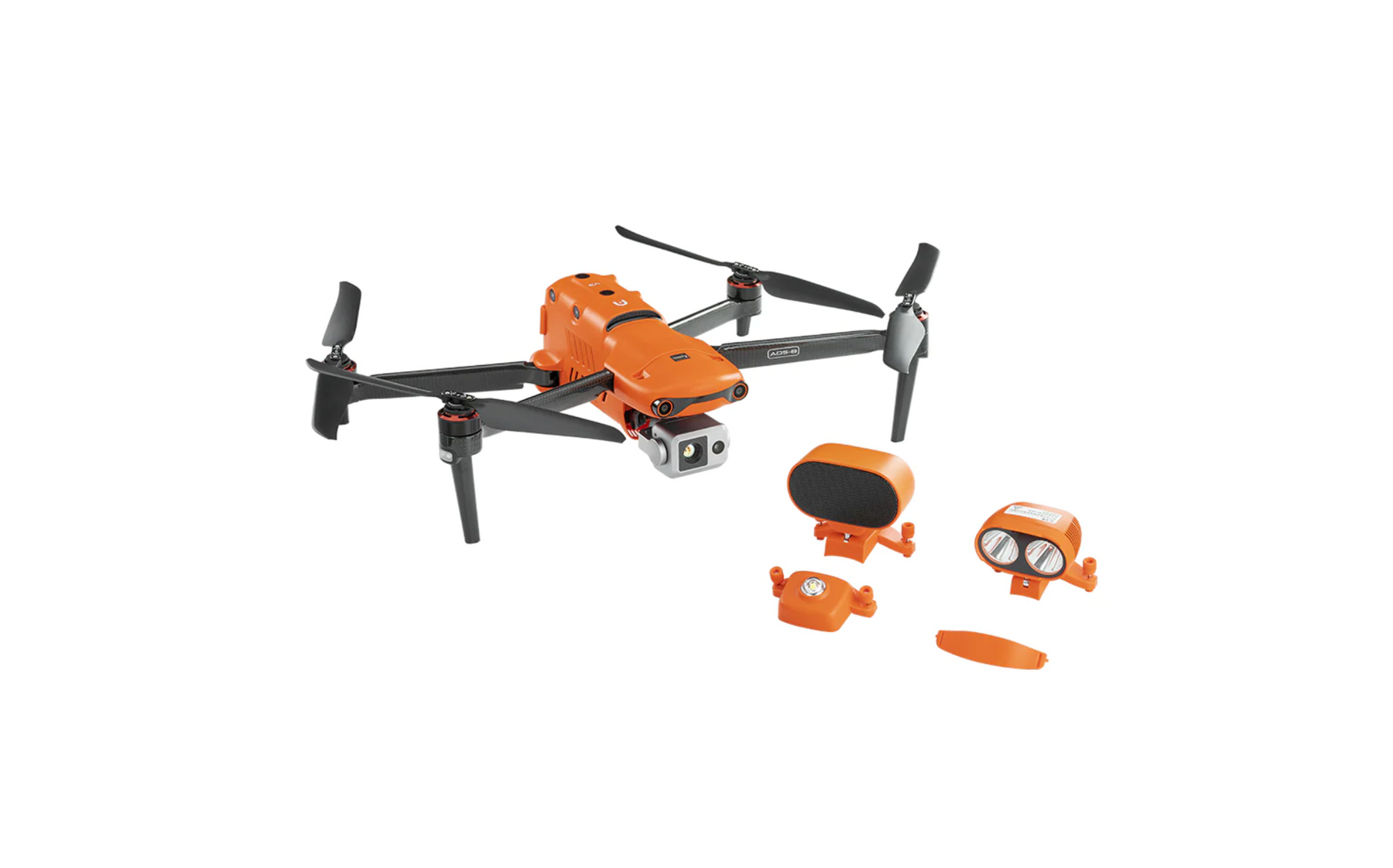

Accessories

Strobe Dimensions：39*72*34 mm
Weight：19.5 g
Connections：Floating Connectors
Power：Avg. 1.6W
Controllable Range：5000 m
Light intensity：Min 50cd；Max 486cd；Avg. 290cd

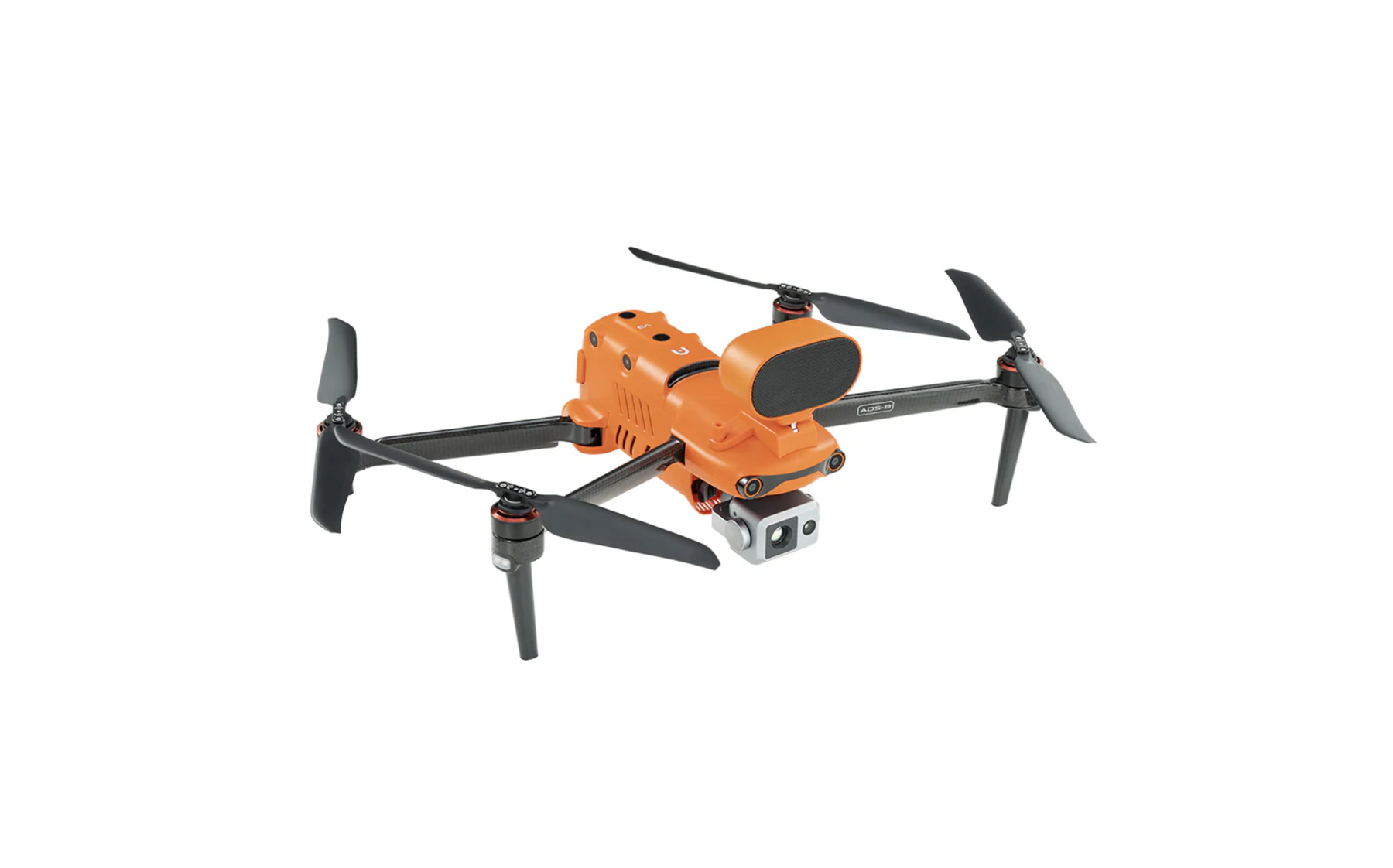

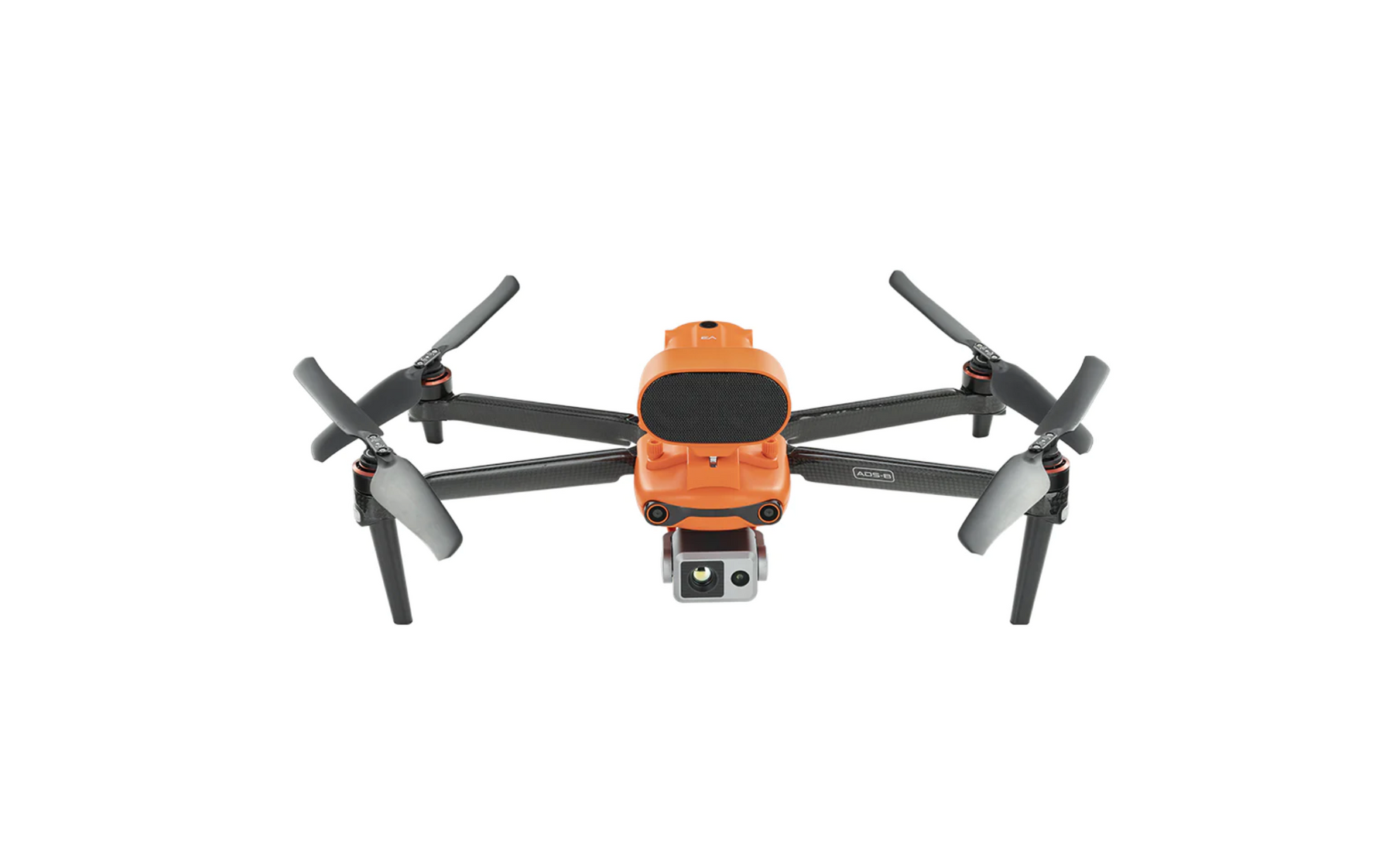

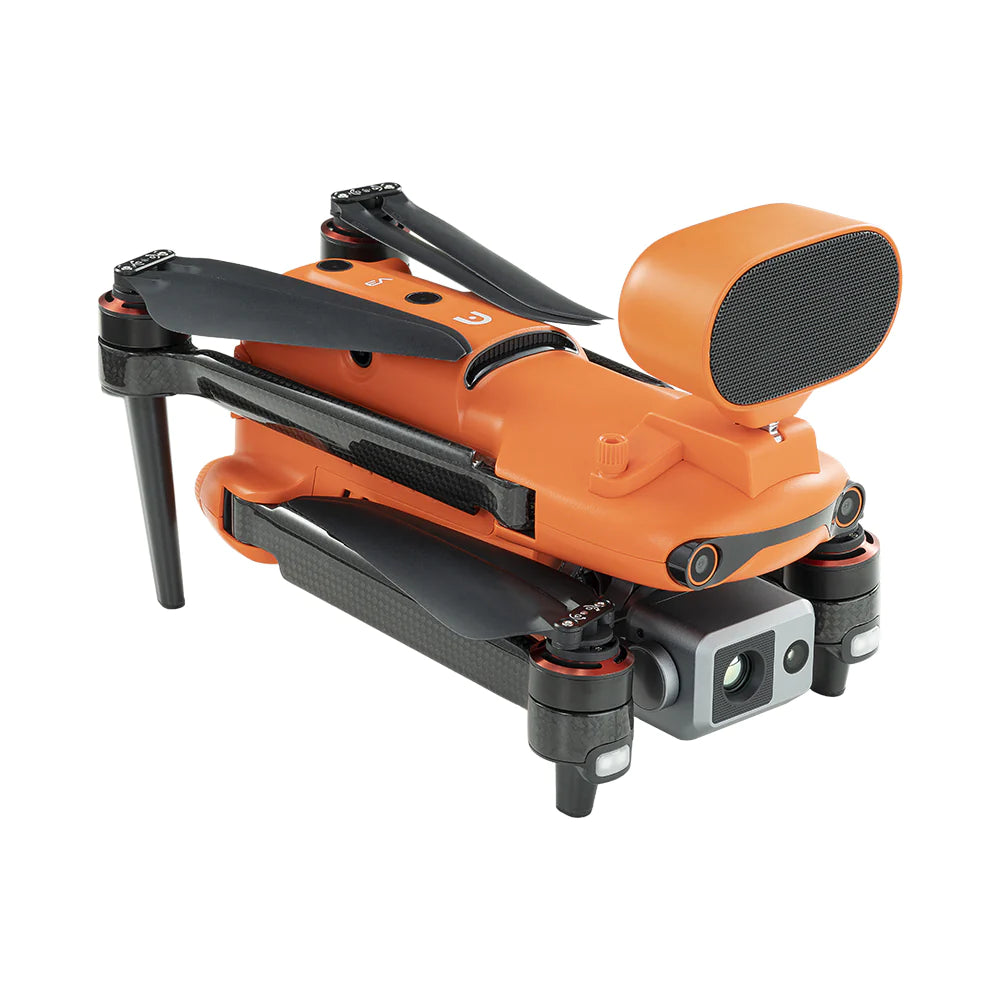

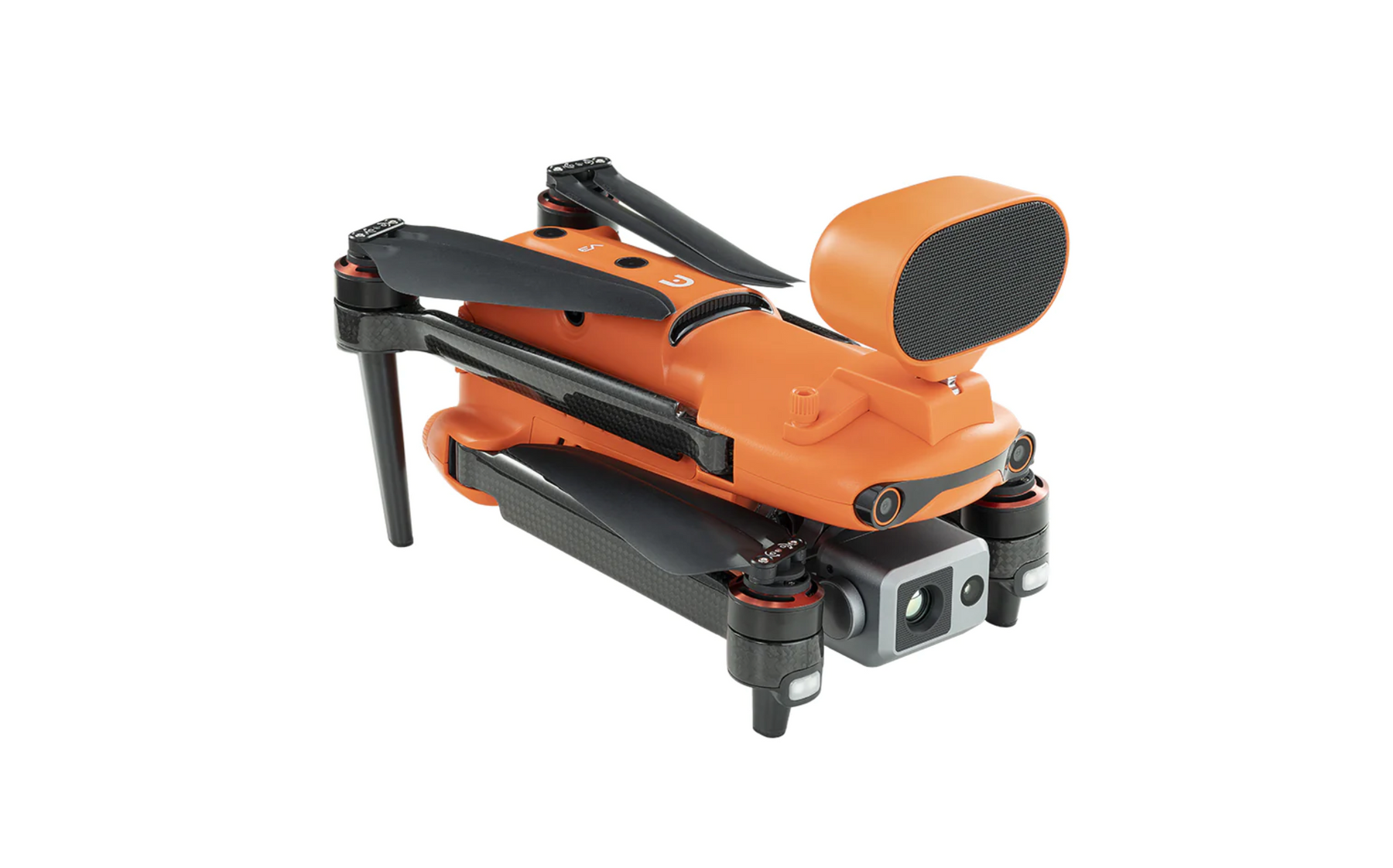

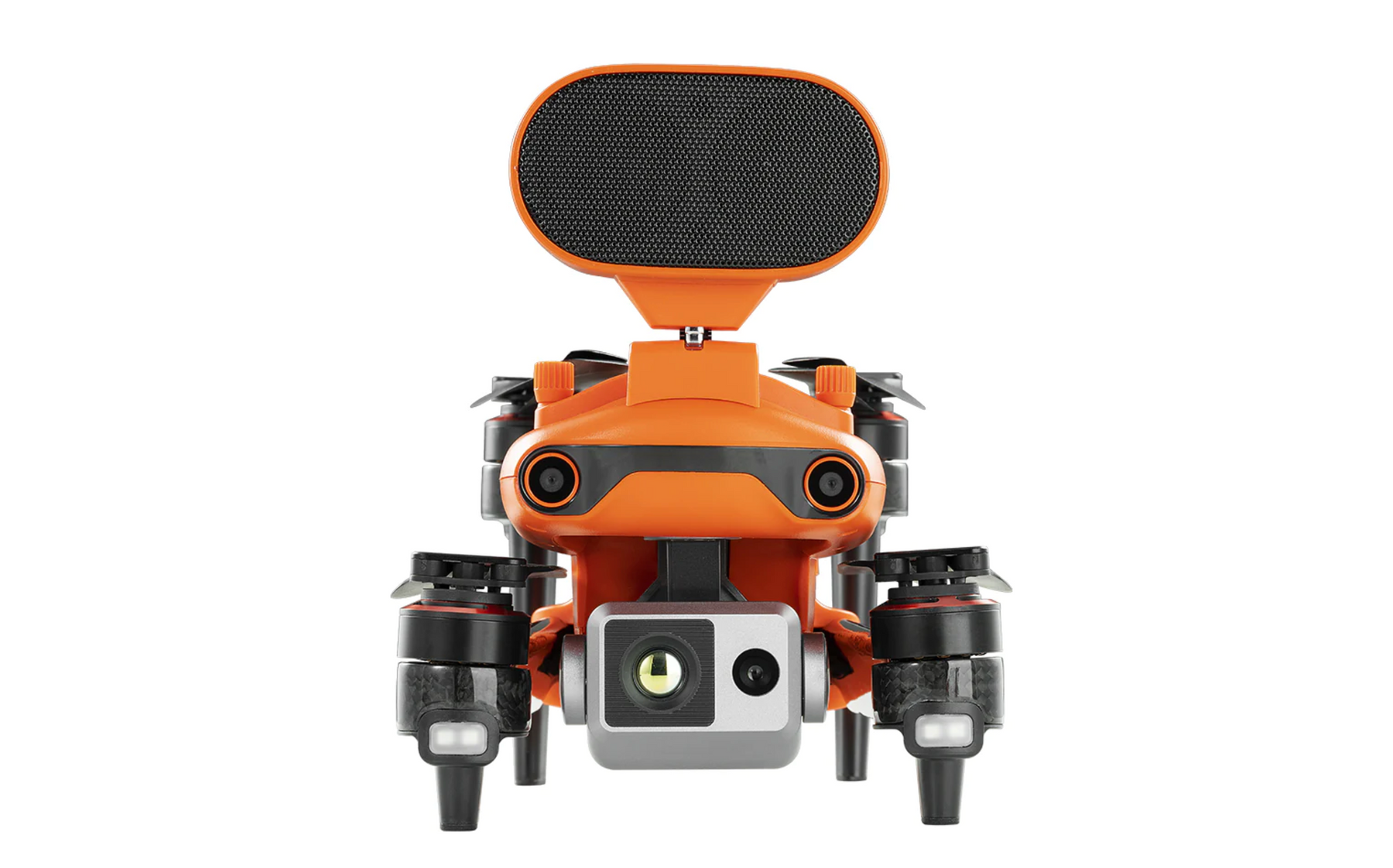

Loudspeaker Dimensions：46*80*77 mm
Weight：98.5 g
Connections：Floating Connectors
Power：Max 18W
Decibel：120dB @ 1m；88dB @ 60m；70dB @ 110m；
Max Bitrate：36kbps
Adjustable Angle Range：0°~45°
Spotlight Dimensions：48.5*72*63 mm
Weight：77 g
Connections：Floating Connectors
Power：Max 35W
Controllable Range：30 m
Adjustable Angle Range：0°~90°
Illuminance：FOV14°, Max：11lux @ 30m Straight
RTK Module Dimensions：55.5*72.5*57 mm
Weight：59.5 g
Connections：Floating Connectors
Power：~ 3W
RTK Positioning Precision：
1.5 cm + 1 ppm（(Vertical）
1 cm + 1 ppm（Horizontal）

Multi-Charger

Voltage 13.2 V
Charging temperature range 5℃ to 45℃
