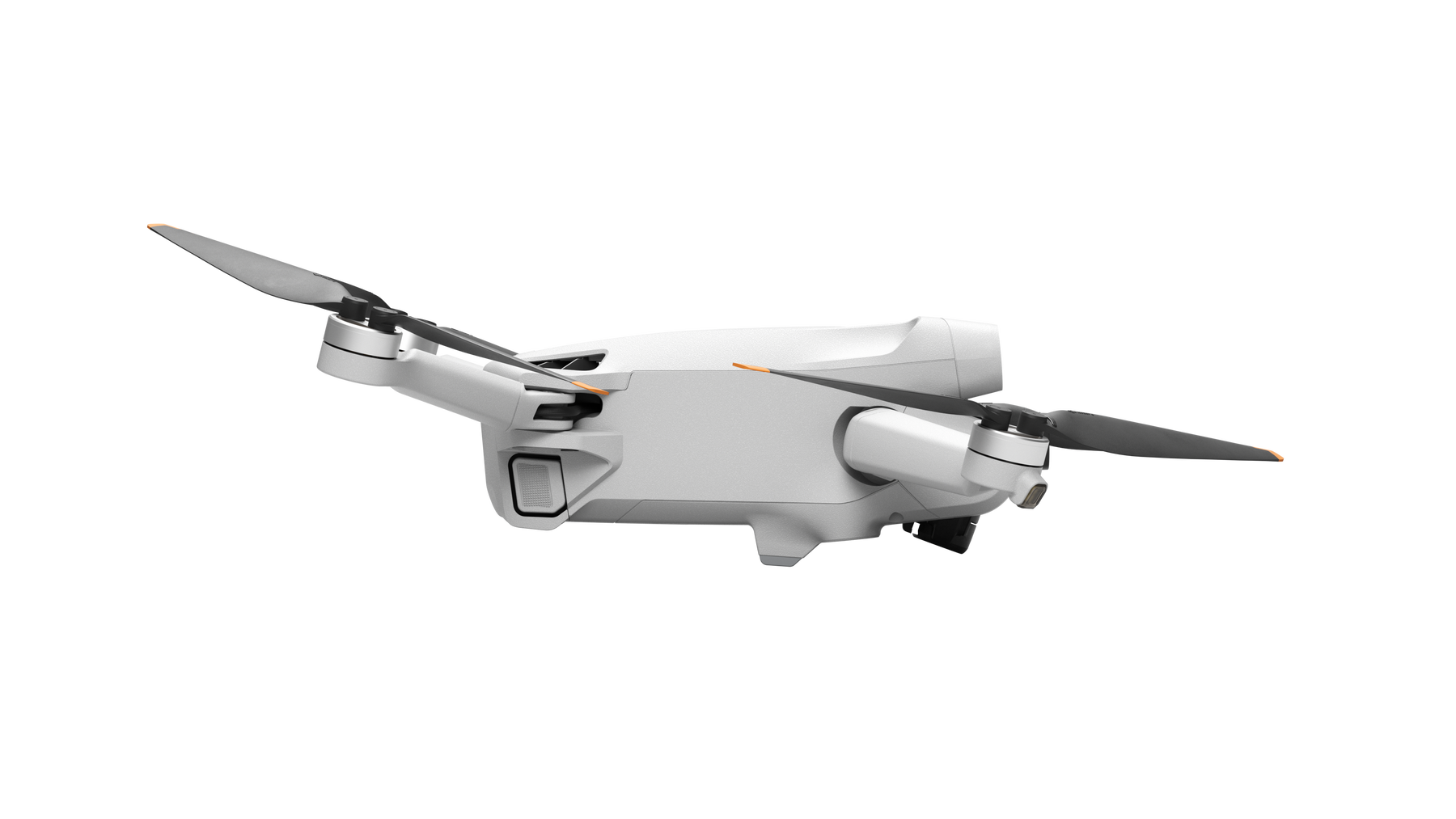

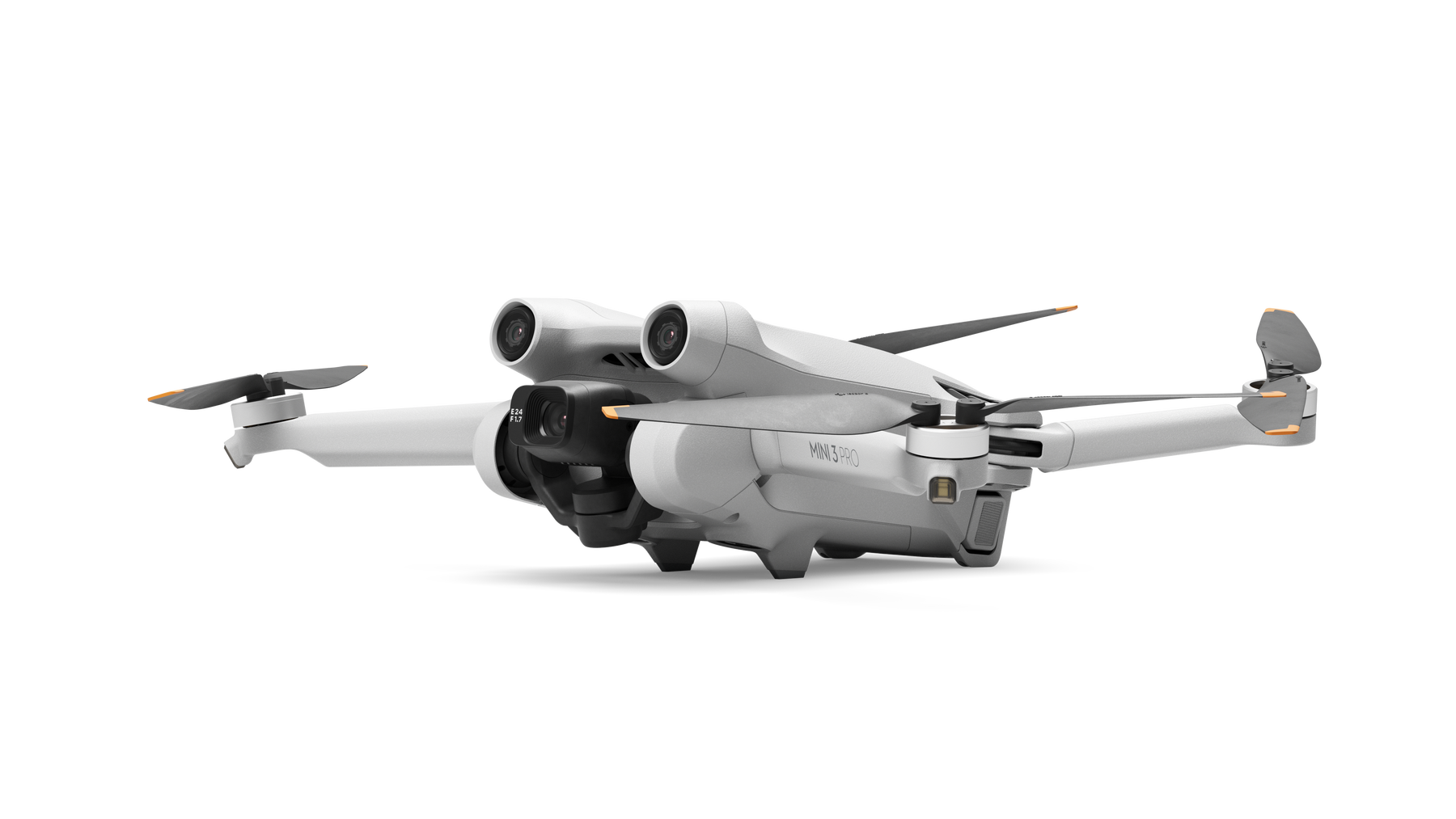

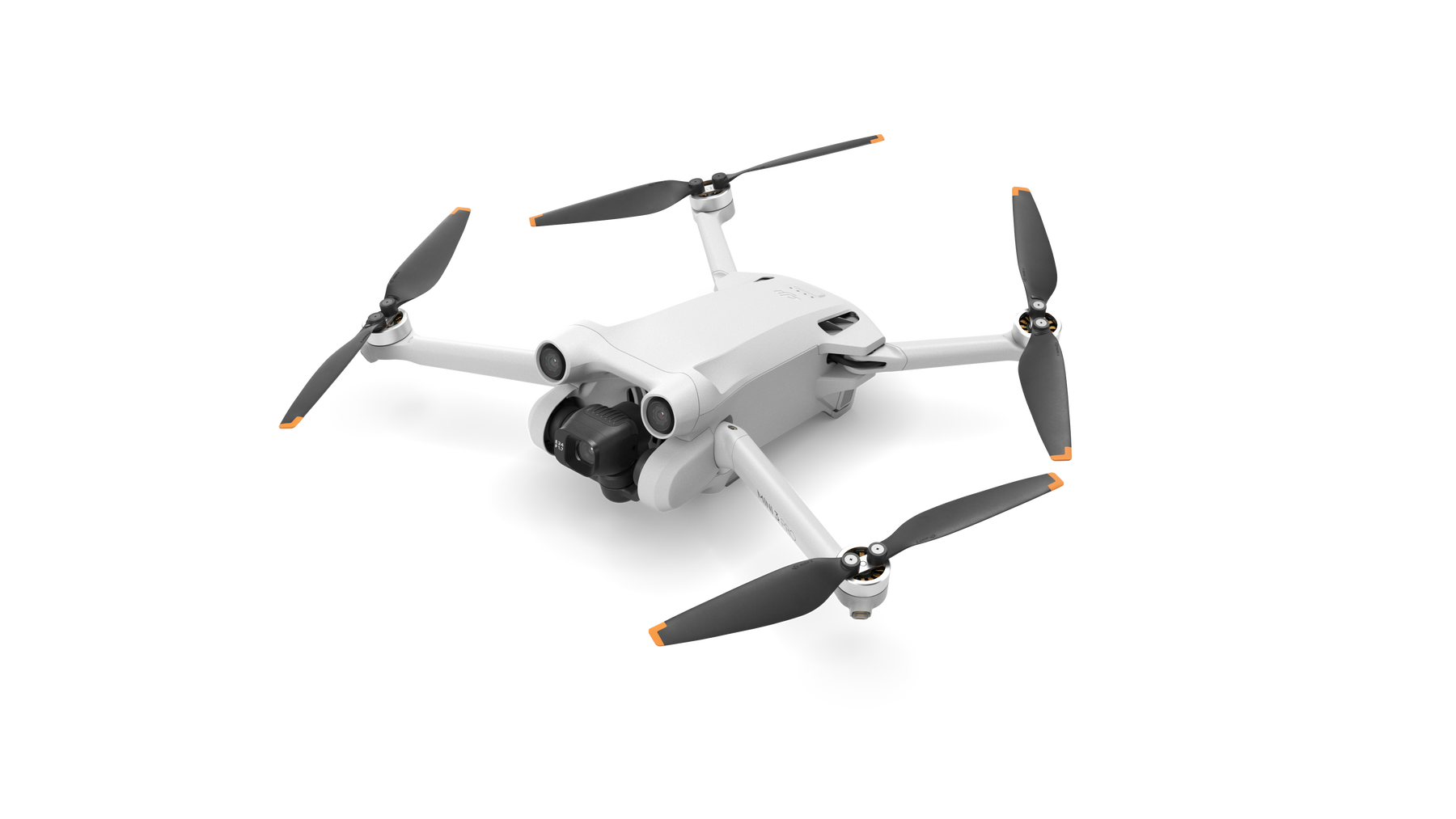

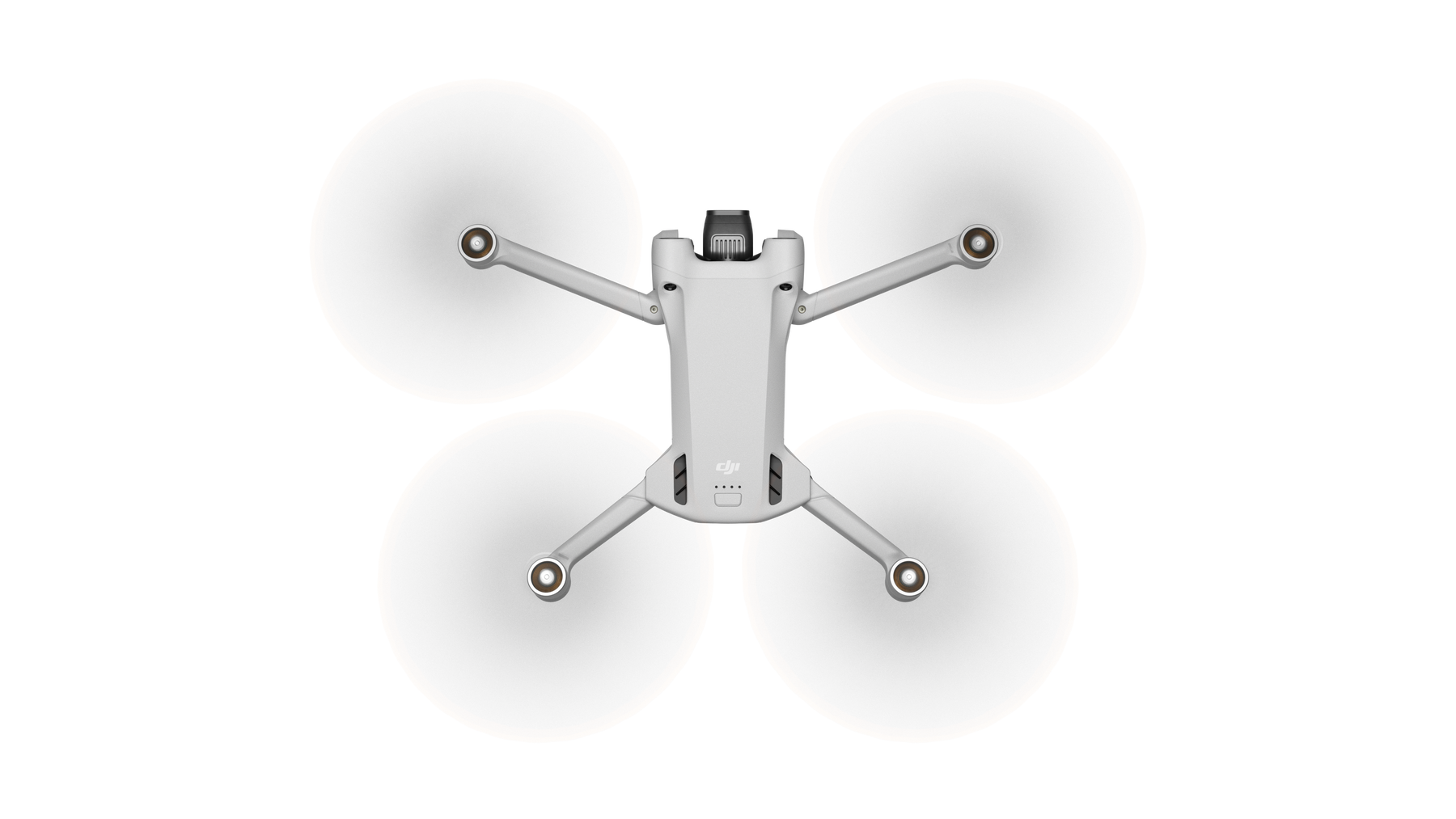

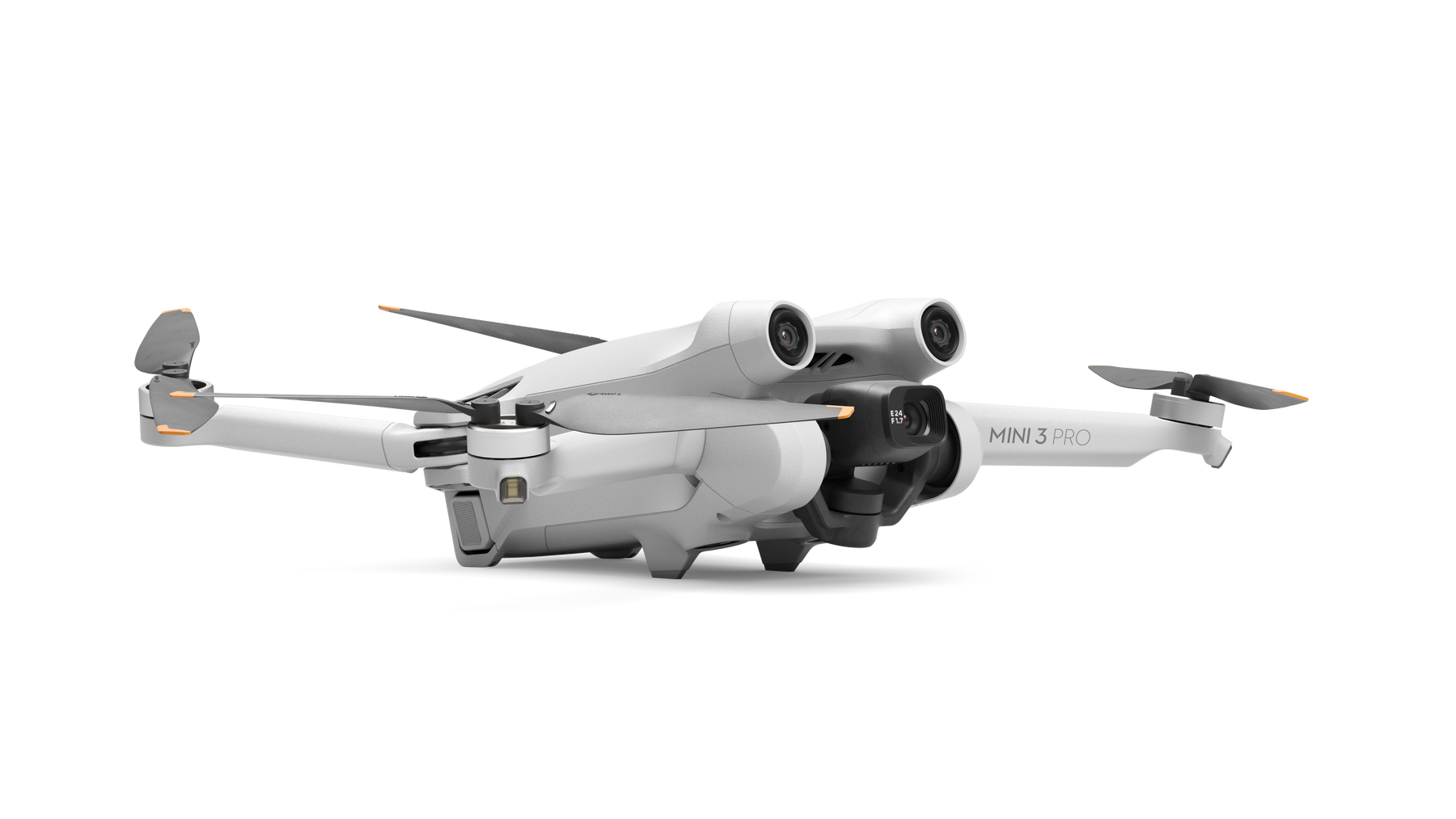

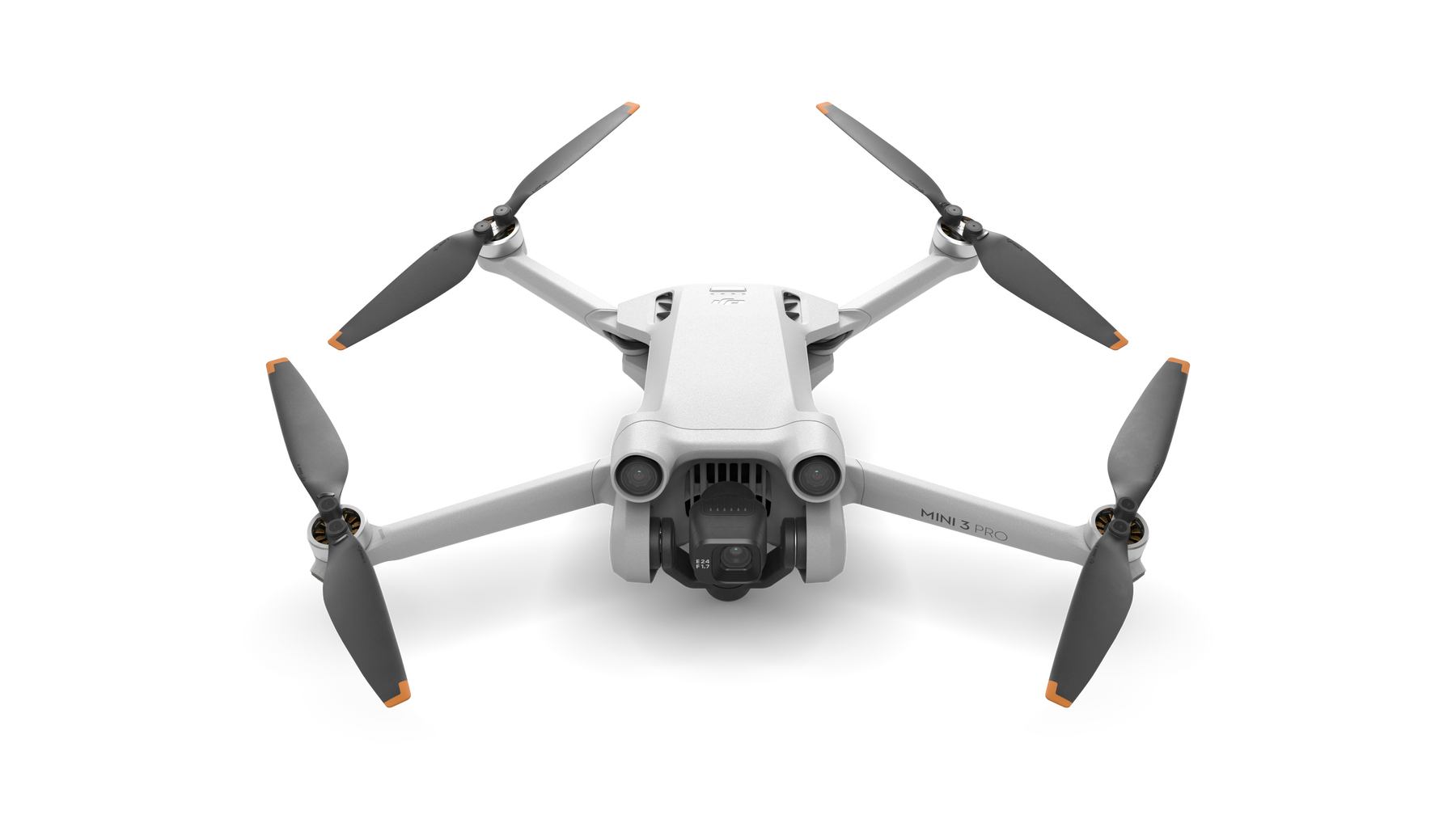

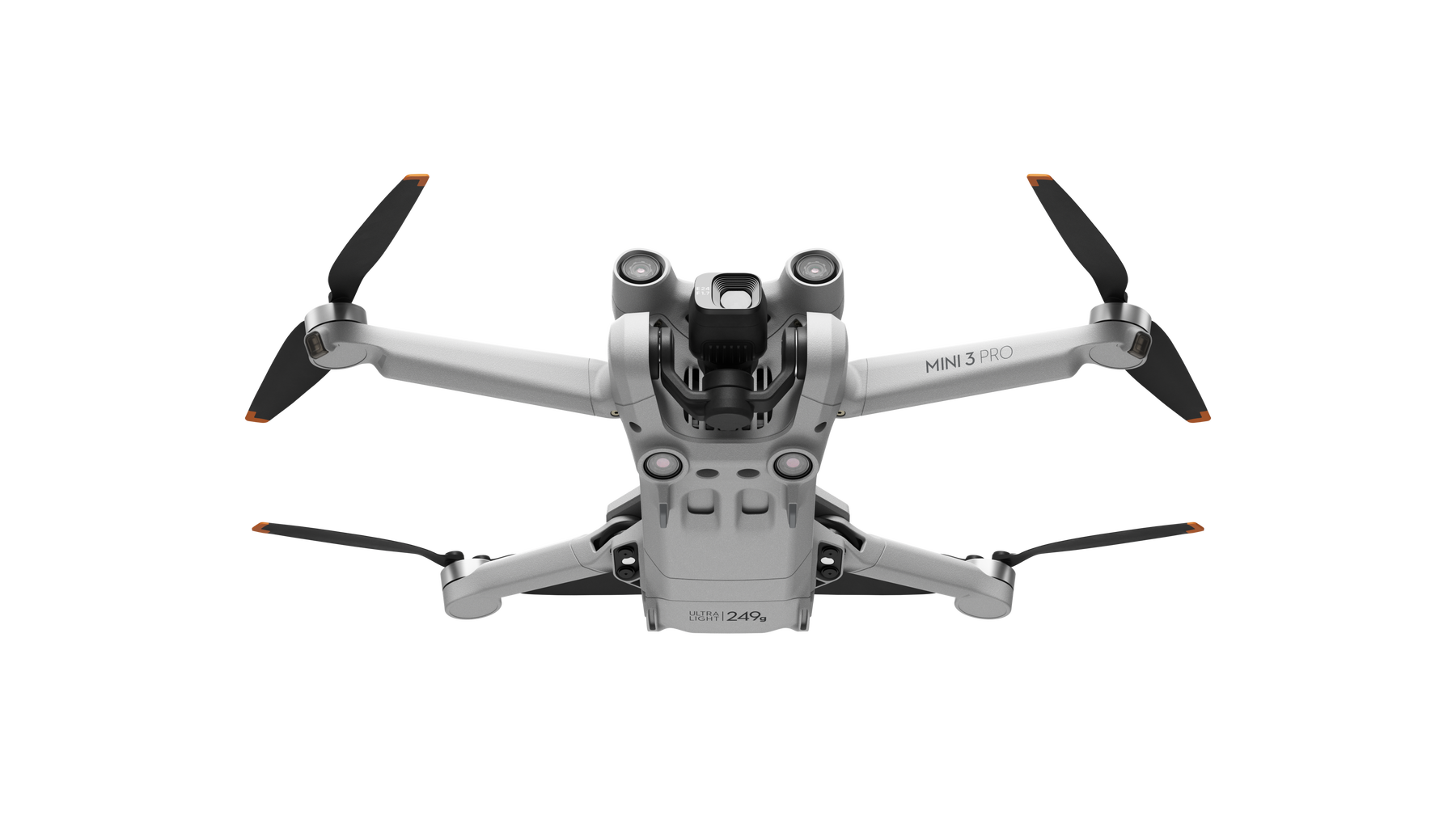

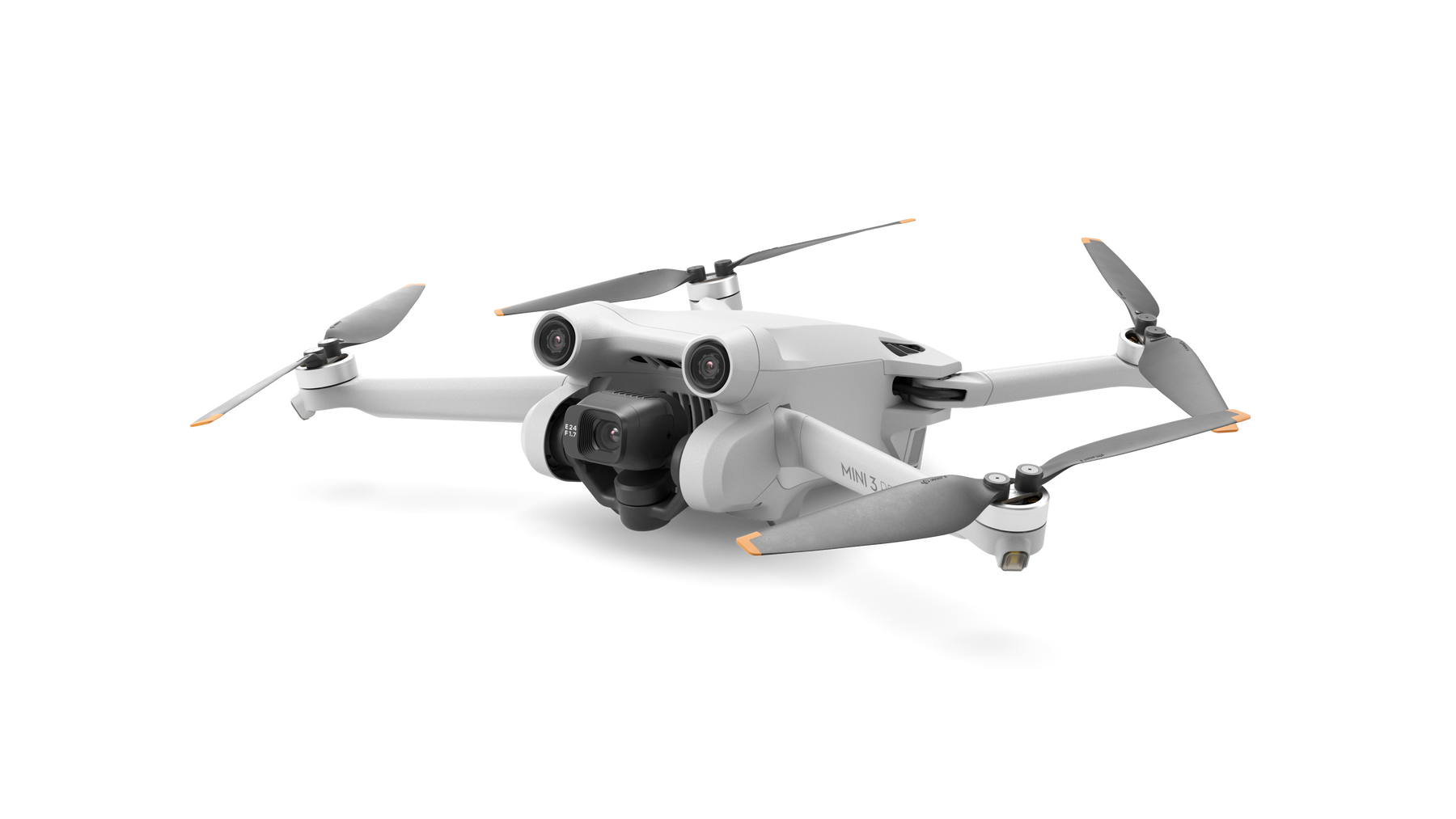

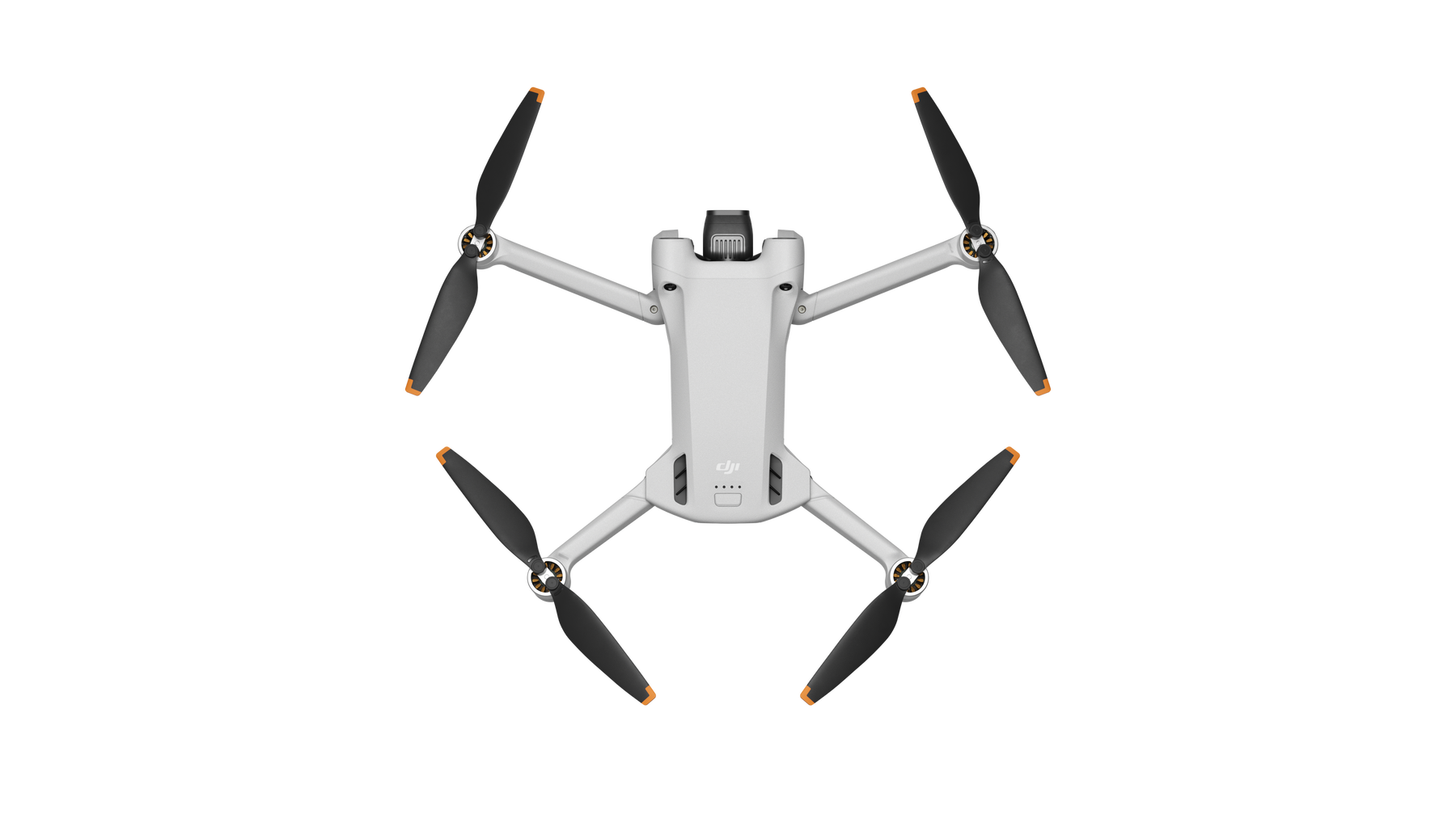

Aircraft
Takeoff Weight <249 g

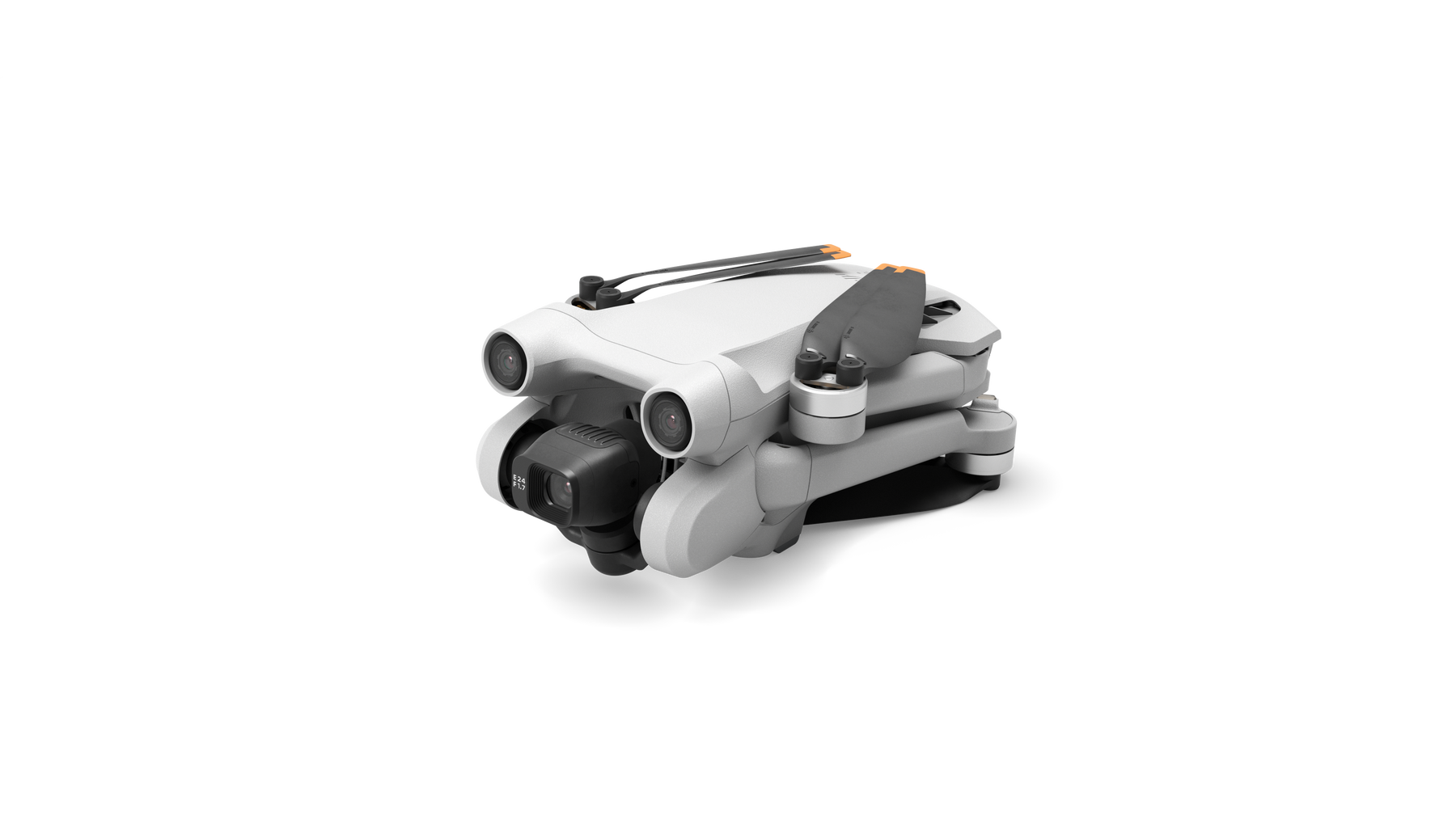

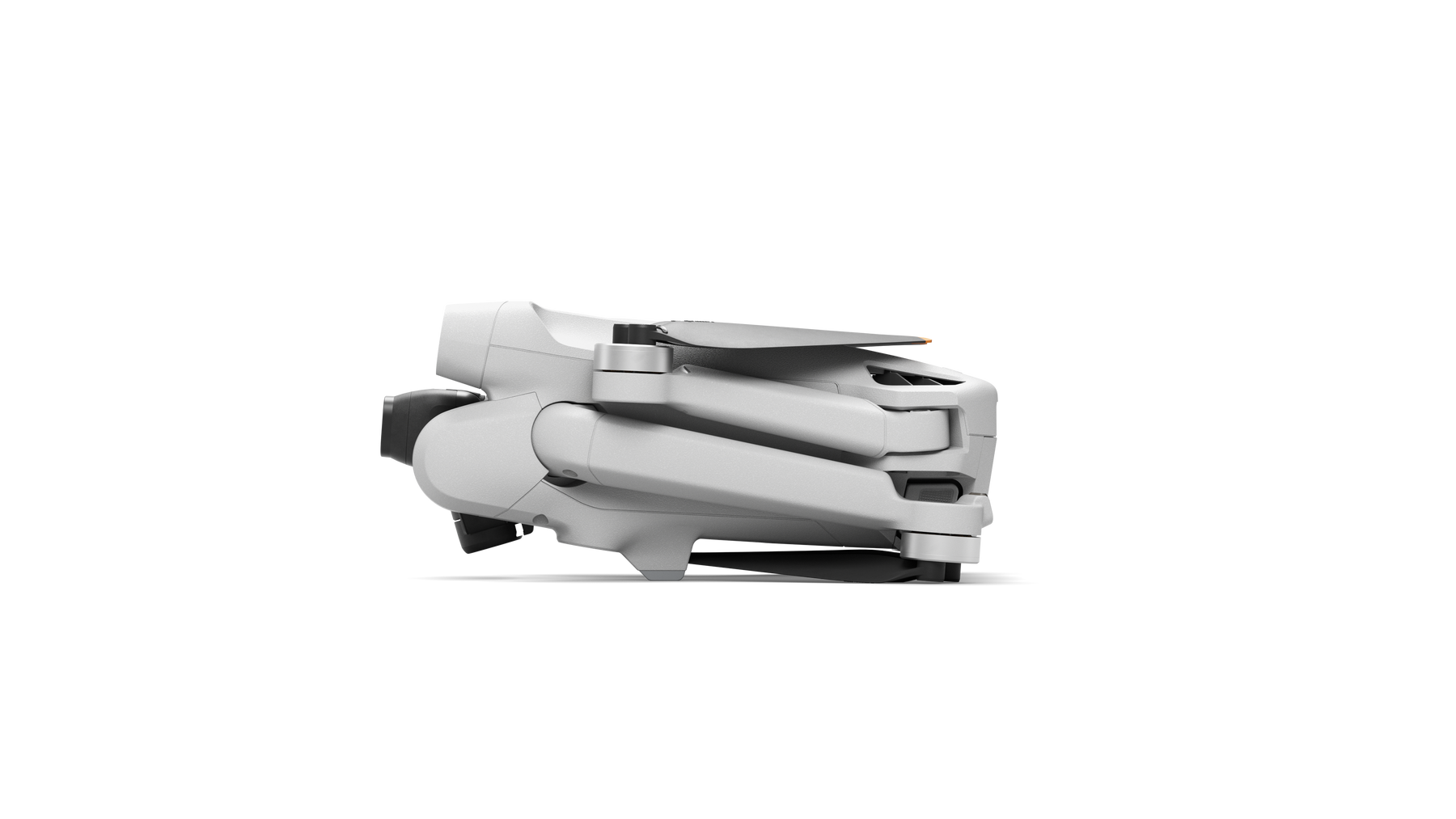

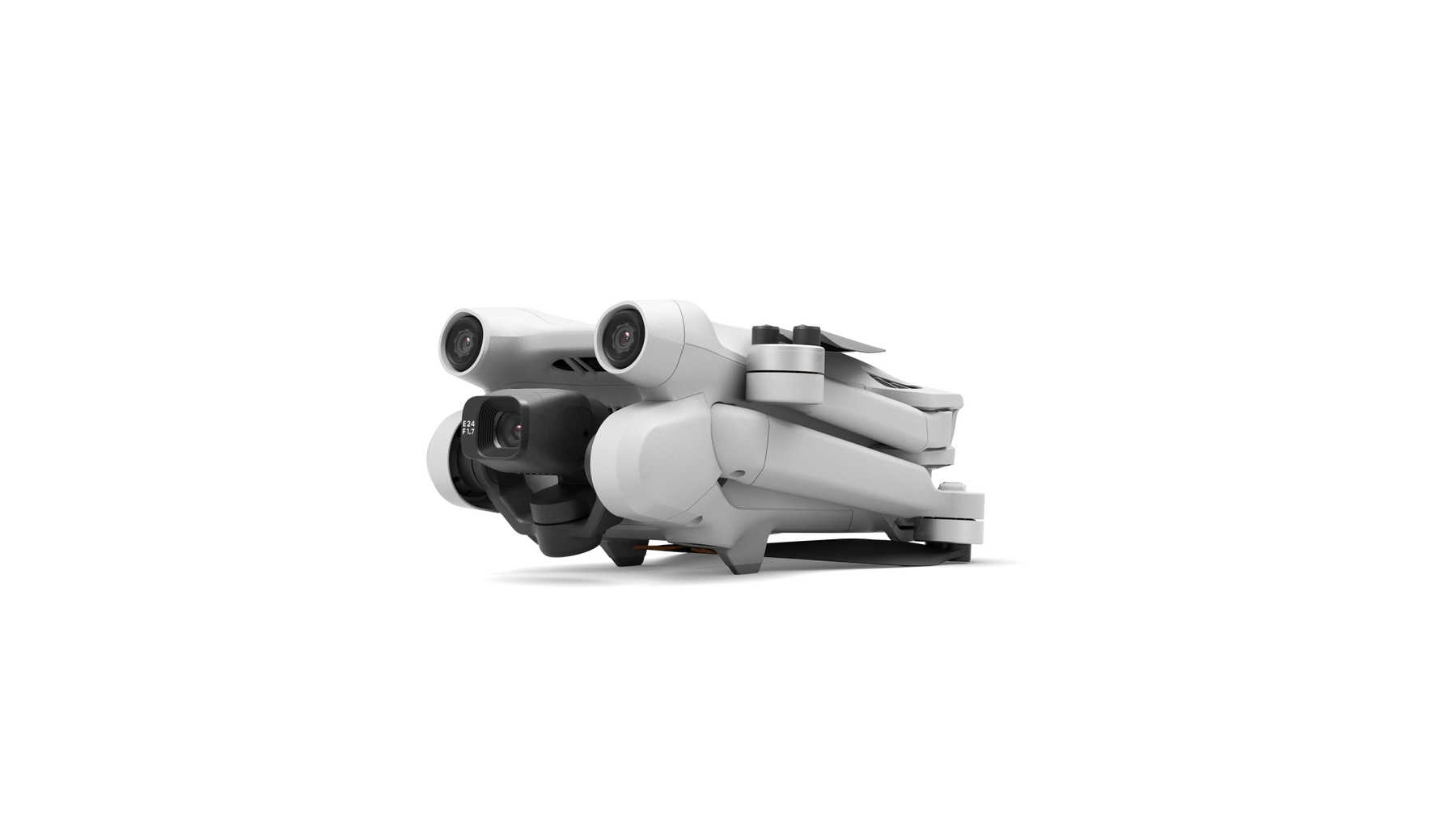

Dimensions (L×W×H) Folded: 145×90×62 mm - Unfolded: 171×245×62 mm - Unfolded (with propellers): 251×362×70 mm
Diagonal Length 247 mm
Max Ascent Speed 5 m/s (S Mode) - 3 m/s (N Mode) - 2 m/s (C Mode)
Max Descent Speed 5 m/s (S Mode) - 3 m/s (N Mode) - 1.5 m/s (C Mode)
Max Speed (at sea level, no wind) <sup>[2]</sup> 16 m/s (S Mode) - 10 m/s (N Mode) - 6 m/s (C Mode)
Max Service Ceiling Above Sea Level With Intelligent Flight Battery: 4000 m - With Intelligent Flight Battery Plus - : 3000 m
Max Flight Time 34 mins (with Intelligent Flight Battery and measured while flying at 21.6 kph in windless conditions) - 47 mins (with Intelligent Flight Battery Plus - and measured while flying at 21.6 kph in windless conditions). Only available in select countries.
Max Hovering Time 30 mins (with Intelligent Flight Battery, no wind) - 40 mins (with Intelligent Flight Battery Plus , no wind)
Max Flight Distance 18 km (with Intelligent Flight Battery and measured while flying at 43.2 kph in windless conditions) - 25 km (with Intelligent Flight Battery Plus - and measured while flying at 43.2 kph in windless conditions)
Max Wind Speed Resistance 10.7 m/s (Level 5)
Max Tilt Angle Forward: 40°, Backward: 35° (S Mode) - 25° (N Mode) - 25° (C Mode)
Max Angular Velocity (by default)* 130°/s (S Mode) - * Can be adjusted between 20°/s to 250°/s in the app - - 75°/s (N Mode) - * Can be adjusted between 20°/s to 120°/s in the app - - 30°/s (C Mode) - * Can be adjusted between 20°/s to 60°/s in the app
Operating Temperature -10° to 40° C
Global Navigation Satellite System (GNSS) GPS + Galileo + BeiDou
Operation Frequency 2.400-2.4835 GHz - 5.725-5.850 GHz
Transmitter Power (EIRP) 2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC) - 5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE)
Hovering Accuracy Range Vertical: - ±0.1 m (with vision positioning) - ±0.5 m (with GNSS positioning) - - Horizontal: - ±0.3 m (with vision positioning) - ±0.5 m (with high-precision positioning system)
Sensing System
Forward Precision Measurement Range: 0.39-25 m - Effective Sensing Speed: Flight speed <10 m/s - FOV: Horizontal 106°, Vertical 90°
Backward Precision Measurement Range: 0.36-23.4 m - Effective Sensing Speed: Flight speed <10 m/s - FOV: Horizontal 58°, Vertical 73°
Downward Precision Measurement Range: 0.15-9 m - Precise Hovering Range: 0.5-12 m - Vision Sensor Hovering Range: 0.5-30 m - Effective Sensing Speed: Flight speed <3 m/s - FOV: Forward/Backward 104.8°, Left/Right 87.6°
Auxiliary Bottom Light N/A
Operating Environment Diffuse reflective surface with a clear pattern and reflectivity >20% (such as cement pavement) - Adequate lighting (lux >15, e.g. normal exposure environment with indoor fluorescent lamp)
Gimbal
Mechanical Range Tilt: -135° to 80° - Roll: -135° to 45° - Pan: -30° to 30°
Controllable Range Tilt: -90° to 60° - Roll: -90° or 0°
Stabilization 3-axis mechanical gimbal (tilt, roll, and pan)
Max Control Speed (tilt) 100°/s
Angular Vibration Range ±0.01°
Camera
Sensor 1/1.3-inch CMOS - Effective Pixels: 48 MP
Lens FOV: 82.1° - Format Equivalent: 24 mm - Aperture: f/1.7 - Focus Range: 1 m to ∞
ISO Range Video: 100-6400 (Auto), 100-6400 (Manual) - Photo: 100-6400 (Auto), 100-6400 (Manual)
Shutter Speed Electronic Shutter: 2-1/8000 s
Max Image Size 4:3: 8064×6048 (48 MP), 4032×3024 (12 MP) - 16:9: 4032×2268 (12 MP)
Still Photography Modes Single Shot - - Interval: - JPEG: 2/3/5/7/10/15/20/30/60 s - JPEG + RAW: 2/3/5/7/10/15/20/30/60 s - - Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 2/3 EV Bias - - Panorama: Sphere, 180°, Wide-angle, and Vertical
Photo Format JPEG/DNG (RAW)
Video Resolution 4K: 3840×2160@24/25/30/48/50/60fps - 2.7K: 2720×1530@24/25/30/48/50/60fps - FHD: 1920×1080@24/25/30/48/50/60fps - Slow Motion: 1920×1080@120fps
HDR Mode Photo: HDR supported in Single Shot mode - Video: HDR supported when shooting at 24/25/30fps
Video Format MP4/MOV (H.264/H.265)
Max Video Bitrate 150 Mbps
Zoom Range 4K: 2x - 2.7K: 3x - FHD: 4x
QuickShot Modes Dronie, Helix, Rocket, Circle, Boomerang, and Asteroid
Color Profiles Normal - D-Cinelike
Supported File System FAT32 (≤32 GB) - exFAT (>32 GB)
Video Transmission
Video Transmission System DJI O3
Live View Quality 1080p/30fps
Operation Frequency 2.400-2.4835 GHz - 5.725-5.850 GHz
Transmitter Power (EIRP) 2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC) - 5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE)
Communication Bandwidth 1.4MHz/3MHz/10MHz/20MHz/40MHz
Latency (depending on environmental conditions and mobile device) Aircraft + Remote Controller: Approx. 120 ms
Max Video Bitrate Aircraft + Remote Controller: 18 Mbps
Max Download Bitrate <sup>[5]</sup> DJI O3: - RC-N1 Remote Controller and DJI RC: 5.5 MB/s - - Wi-Fi 5: Max 30 MB/s
Signal Transmission Ranges (FCC) <sup>[6]</sup> Strong Interference (urban landscape): Approx. 1.5-3 km - Medium Interference (suburban landscape): Approx. 3-7 km - Low Interference (suburb/seaside): Approx. 7-12 km
Antennas 4 antennas, 1T2R
Audio Transmission N/A
Wi-Fi
Protocol 802.11 a/b/g/n/ac
Transmitter Power (EIRP) 2.400-2.4835 GHz: <19 dBm (FCC/CE/SRRC/MIC) - 5.725-5.850 GHz: <20 dBm (FCC/SRRC), <14 dBm (CE)
Bluetooth
Protocol Bluetooth 5.2
Transmitter Power (EIRP) 2.400-2.4835 GHz: <8 dBm
Intelligent Flight Battery
Capacity 2453 mAh
Weight Approx. 80.5 g
Voltage 7.38 V
Charging Voltage Limit 8.5 V
Battery Type Li-ion
Energy 18.1 Wh
Max Charging Power 37 W
Charging Time 64 mins (with DJI 30W USB-C Charger)
Charging Temperature Range 5° to 40° C (41° to 104° F)
Recommended Charger DJI 30W USB-C Charger - or other USB Power Delivery chargers
Capacity 3850 mAh
Weight Approx. 121 g
Voltage 7.38 V
Charging Voltage Limit 8.5 V
Battery Type Li-ion
Energy 28.4 Wh
Max Charging Power 58 W
Charging Time 101 mins (with DJI 30W USB-C Charger)
Charging Temperature Range 5° to 40° C (41° to 104° F)
Recommended Charger DJI 30W USB-C Charger - or other USB Power Delivery chargers
Memory Cards Supported Memory Cards UHS-I Speed Class 3 or above is required. A list of recommended microSD cards can be found below.
Memory Cards Recommended microSD Cards SanDisk Extreme 64GB V30 A1 microSDXC - SanDisk Extreme 128GB V30 A2 microSDXC - SanDisk Extreme 256GB V30 A2 microSDXC - SanDisk Extreme 512GB V30 A2 microSDXC - SanDisk Extreme Pro 64GB V30 A2 microSDXC - SanDisk Extreme Pro 256GB V30 A2 microSDXC - SanDisk Extreme Pro 400GB V30 A2 microSDXC - SanDisk High Endurance 64GB V30 microSDXC - SanDisk High Endurance 256GB V30 microSDXC - SanDisk Max Endurance 32GB V30 microSDHC - SanDisk Max Endurance 128GB V30 microSDXC - SanDisk Max Endurance 256GB V30 microSDXC - Kingston Canvas Go!Plus 64GB V30 A2 microSDXC - Kingston Canvas Go!Plus 256GB V30 A2 microSDXC - Lexar High Endurance 64GB V30 microSDXC - Lexar High Endurance 128GB V30 microSDXC - Lexar 667x 64GB V30 A1 microSDXC - Lexar 633x 256GB V30 A1 microSDXC - Lexar 1066x 64GB V30 A2 microSDXC - Lexar 1066x 128GB V30 A2 microSDXC - Lexar 1066x 256GB V30 A2 microSDXC - Samsung Pro Plus 128GB V30 A2 microSDXC - Samsung EVO Plus 512GB microSDXC
DJI RC-N1 Remote Controller
Transmitter Power (EIRP) 2.400-2.4835 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC) - 5.725-5.850 GHz: <26 dBm (FCC), <23 dBm (SRRC), <14 dBm (CE)
Max Supported Mobile Device Size Length: 180 mm, Width: 86 mm, Height: 10 mm
Supported Port Types Lightning, Micro-USB (Type-B), USB-C
Video Transmission System DJI O3
Max Battery Time 6 hrs (without charging any mobile device) - 4 hrs (when charging a mobile device)
Operating Temperature -10° to 40° C (14° to 104° F)

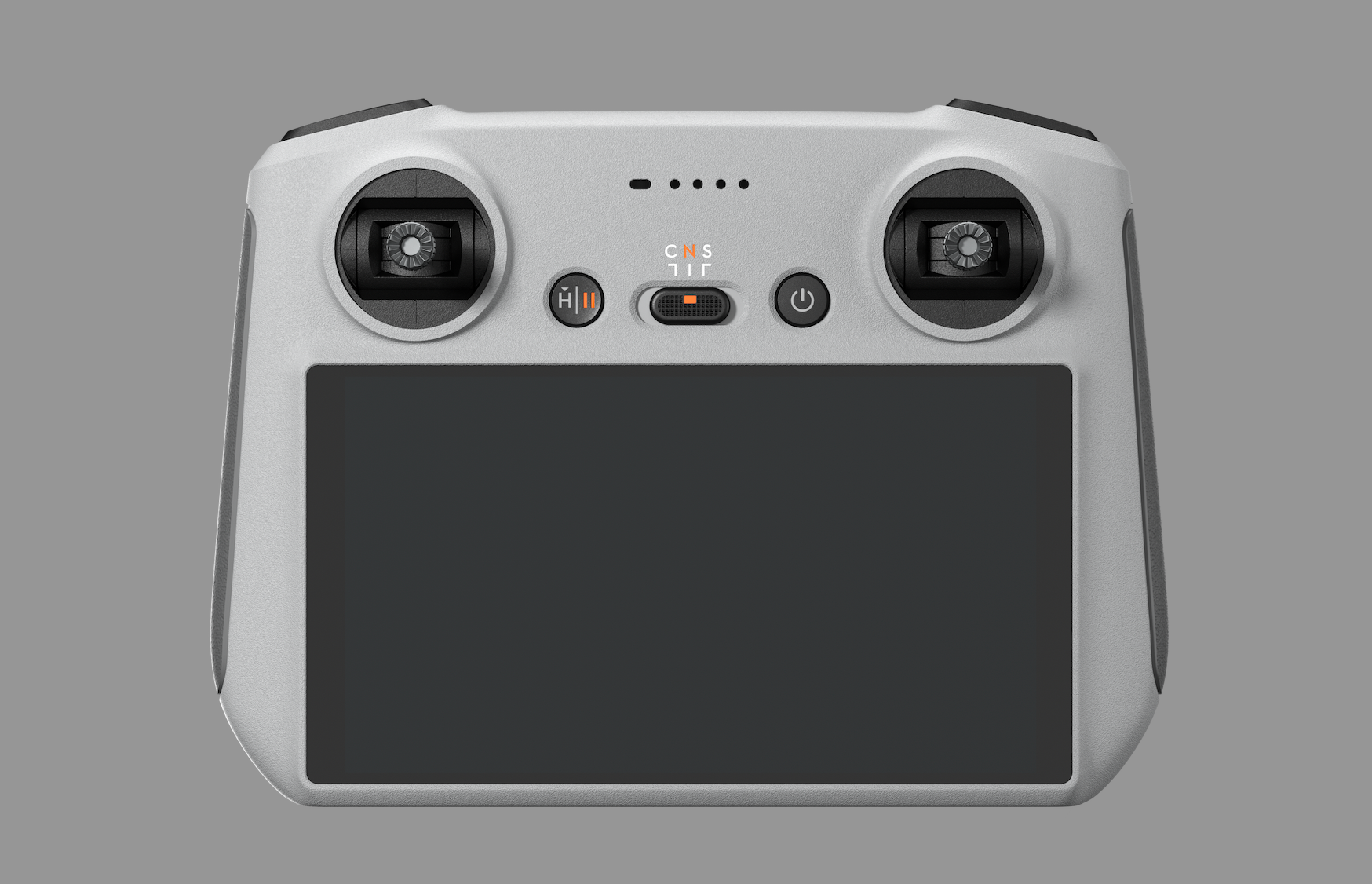

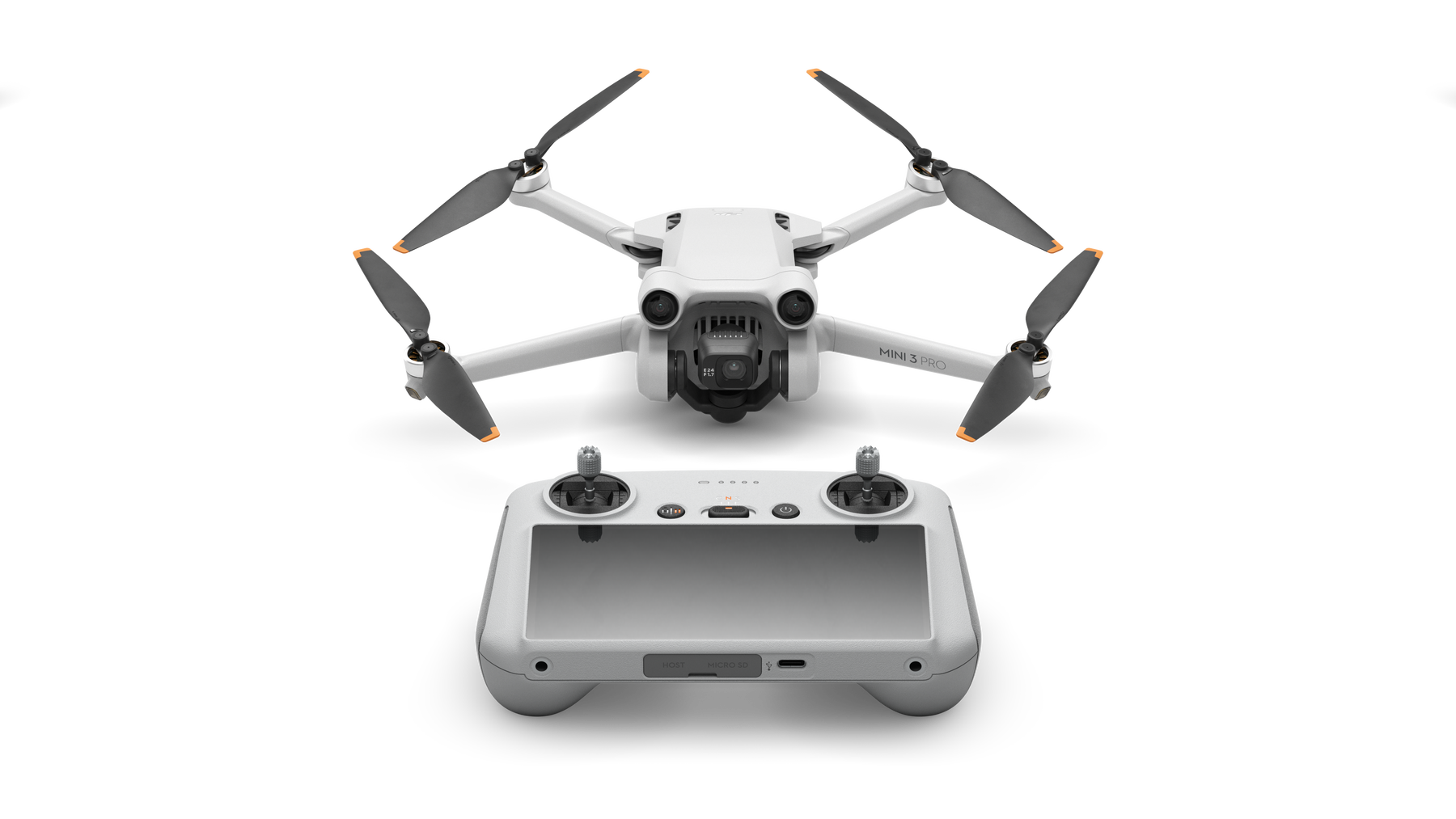

DJI RC
Model RM330
Video Transmission System DJI O3
Transmitter Power (EIRP) 2.400-2.4835 GHz: <26 dBm (FCC); <20 dBm (CE/SRRC/MIC) - 5.725-5.850 GHz: <26 dBm (FCC), <23 dBm (SRRC), <14 dBm (CE)
Storage Capacity DJI RC's storage capacity can be increased by using a microSD card. Users can store images and videos on the card and export them to a computer or other devices.
Video Output Port N/A
Max Battery Life Approx. 4 hours
Operating Temperature -10° to 40° C (14° to 104° F)
Supported SD Cards UHS-I Speed Class 3 or above is required. A list of recommended microSD cards can be found below.
Recommended microSD Cards SanDisk Extreme 64GB V30 A1 microSDXC - SanDisk Extreme 128GB V30 A2 microSDXC - SanDisk Extreme 256GB V30 A2 microSDXC - SanDisk Extreme 512GB V30 A2 microSDXC - SanDisk Extreme Pro 64GB V30 A2 microSDXC - SanDisk Extreme Pro 256GB V30 A2 microSDXC - SanDisk Extreme Pro 400GB V30 A2 microSDXC - SanDisk High Endurance 64GB V30 microSDXC - SanDisk High Endurance 256GB V30 microSDXC - Kingston Canvas Go!Plus 64GB V30 A2 microSDXC - Kingston Canvas Go!Plus 256GB V30 A2 microSDXC - Lexar High Endurance 64GB V30 microSDXC - Lexar High Endurance 128GB V30 microSDXC - Lexar 633x 256GB V30 A1 microSDXC - Lexar 1066x 64GB V30 A2 microSDXC - Samsung EVO Plus 512GB microSDXC
Wi-Fi Protocol 802.11 a/b/g/n
Wi-Fi Transmitter Power (EIRP) 2.400-2.4835 GHz: <23 dBm (FCC), <20 dBm (CE/SRRC/MIC) - 5.150-5.250 GHz: <23 dBm (FCC/CE/SRRC/MIC) - 5.725-5.850 GHz: <23 dBm (FCC/SRRC), <14 dBm (CE)
Bluetooth Protocol Bluetooth 4.2
Bluetooth Transmitter Power (EIRP) 2.400-2.4835 GHz: <10 dBm
Charging Hub
Compatible DJI Charger DJI 30W USB-C Charger - or other USB Power Delivery chargers
Compatible DJI Batteries DJI Mini 3 Pro Intelligent Flight Battery, DJI Mini 3 Pro Intelligent Flight Battery Plus
Input 5 V, 3 A - 9 V, 3 A - 12 V, 3 A
Output (USB) Max Voltage: 5 V, Max Current: 2 A
Charging Type Three batteries being charged in sequence
App
Mobile Device App DJI Fly
Required Operating System iOS v11.0 or later - Android v6.0 or later
