DJI Power Solar Panel Adapter Module (MPPT)

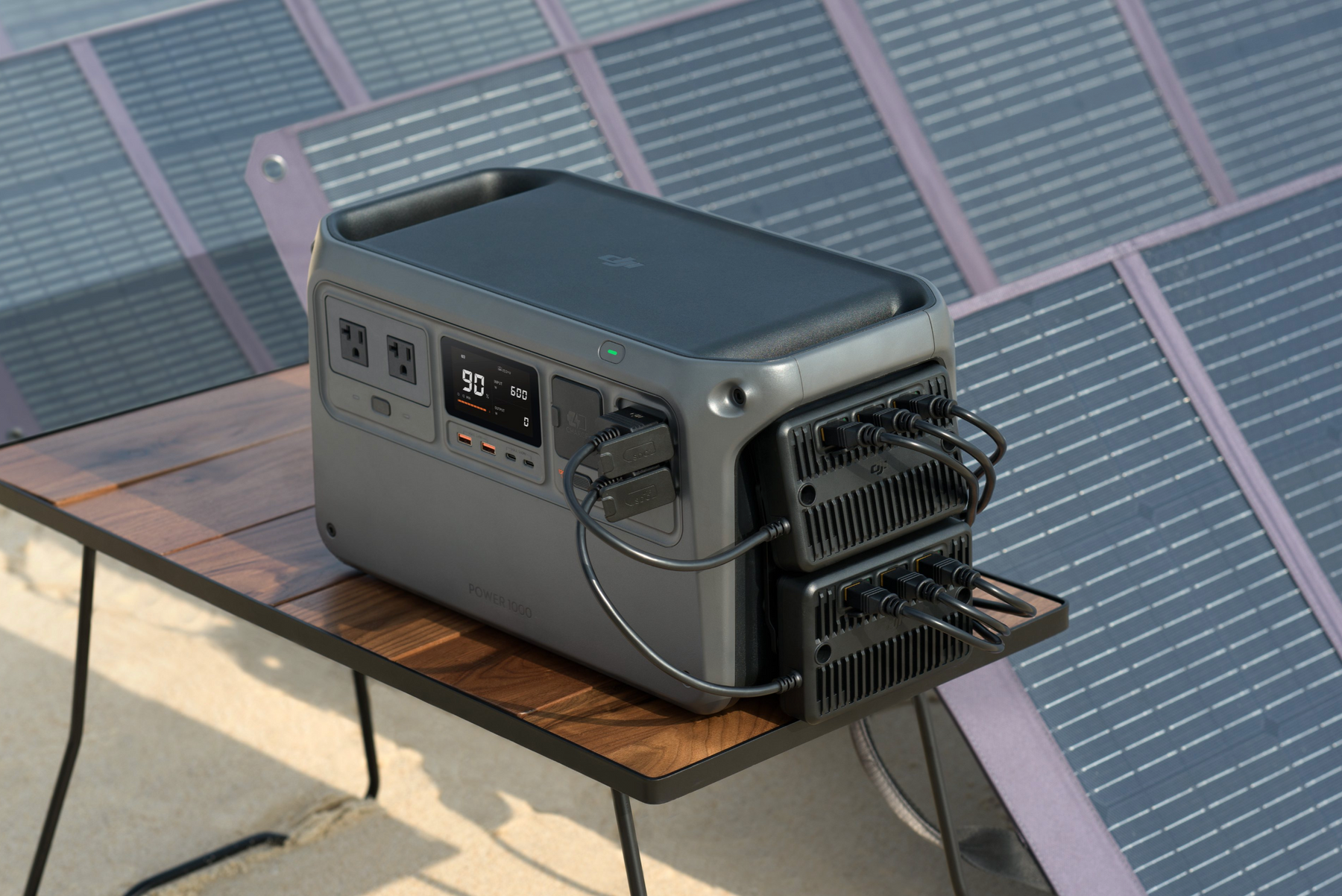

When a DJI Power-series power station is connected to the DJI Power Solar Panel Adapter Module (MPPT), users can link solar panels through the XT60 interface on the adapter panel for eco-friendly recharging of the DJI Power series. It is recommended to use the DJI Power-series power stations in conjunction with solar panels from the DJI-certified brand Zignes. If using solar panels from other brands, using the MPPT module and a conversion of the solar panel port to the XT60 interface are necessary to enable solar recharging for the DJI Power series.
* Required accessories are sold separately.
1. One MPPT module can connect to up to three solar panels.
2. To use solar panels not officially recommended by DJI, and to prevent damage to the MPPT module and the power station, ensure the open-circuit voltage of the solar panel is less than 30 V. The power output of each solar panel should not exceed 200 W, with the total output power of solar panels connected to the entire MPPT module capped at 400 W.
3. While using solar panels with the MPPT module, install the included metal heat dissipation bracket.
4. When used with the DJI Power 500, the max output power of the solar panels connected to the entire adapter module should not exceed 300 W.

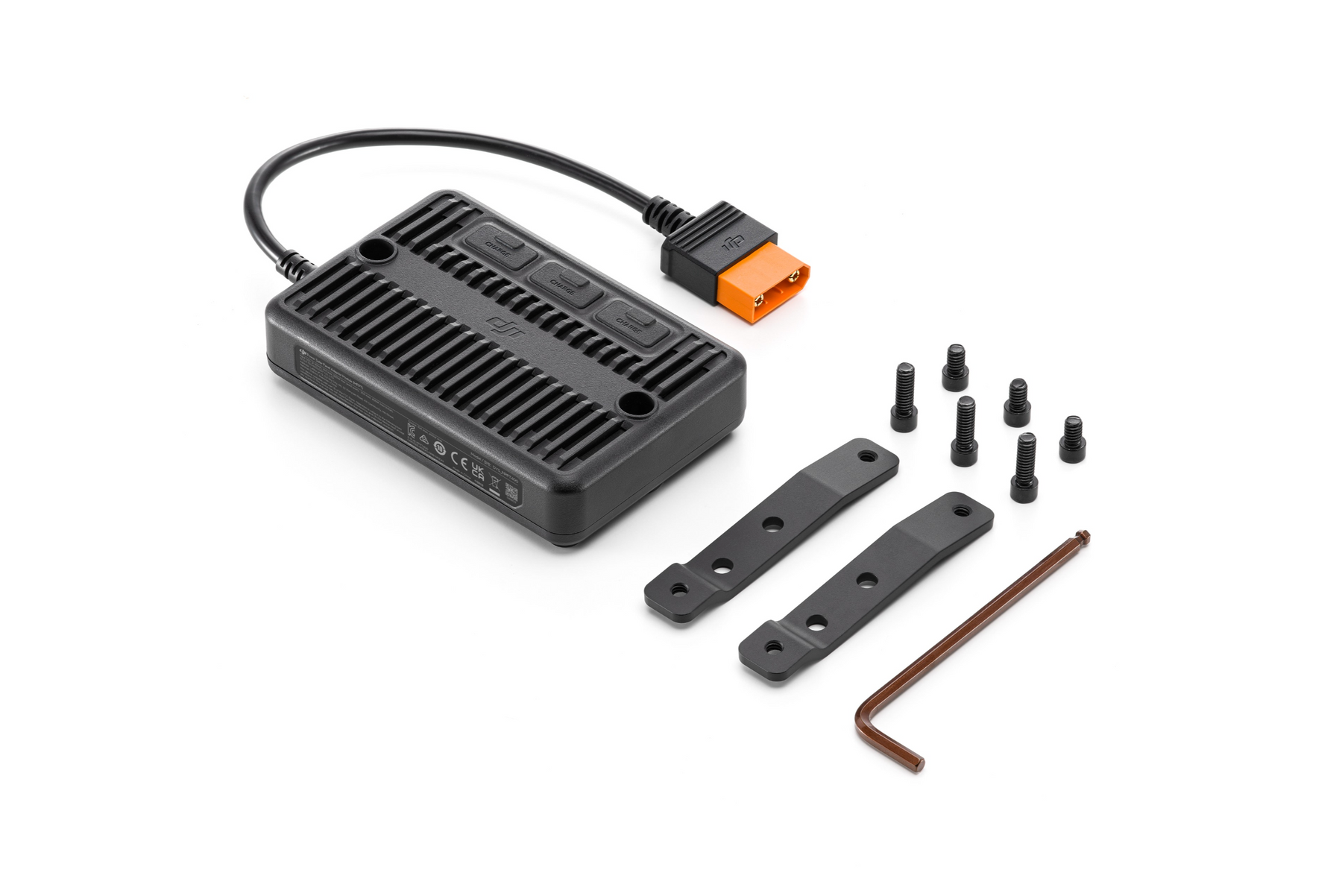

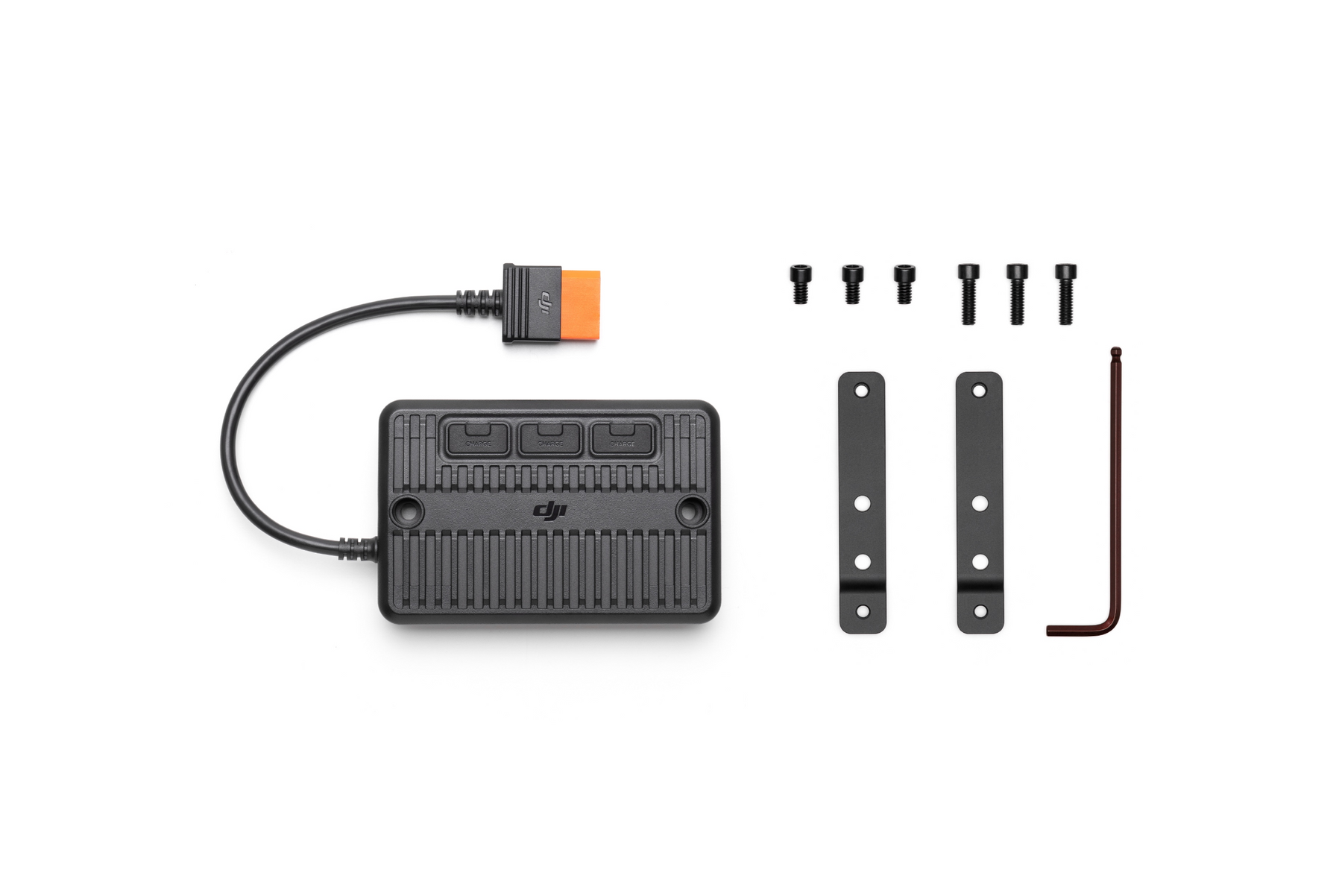

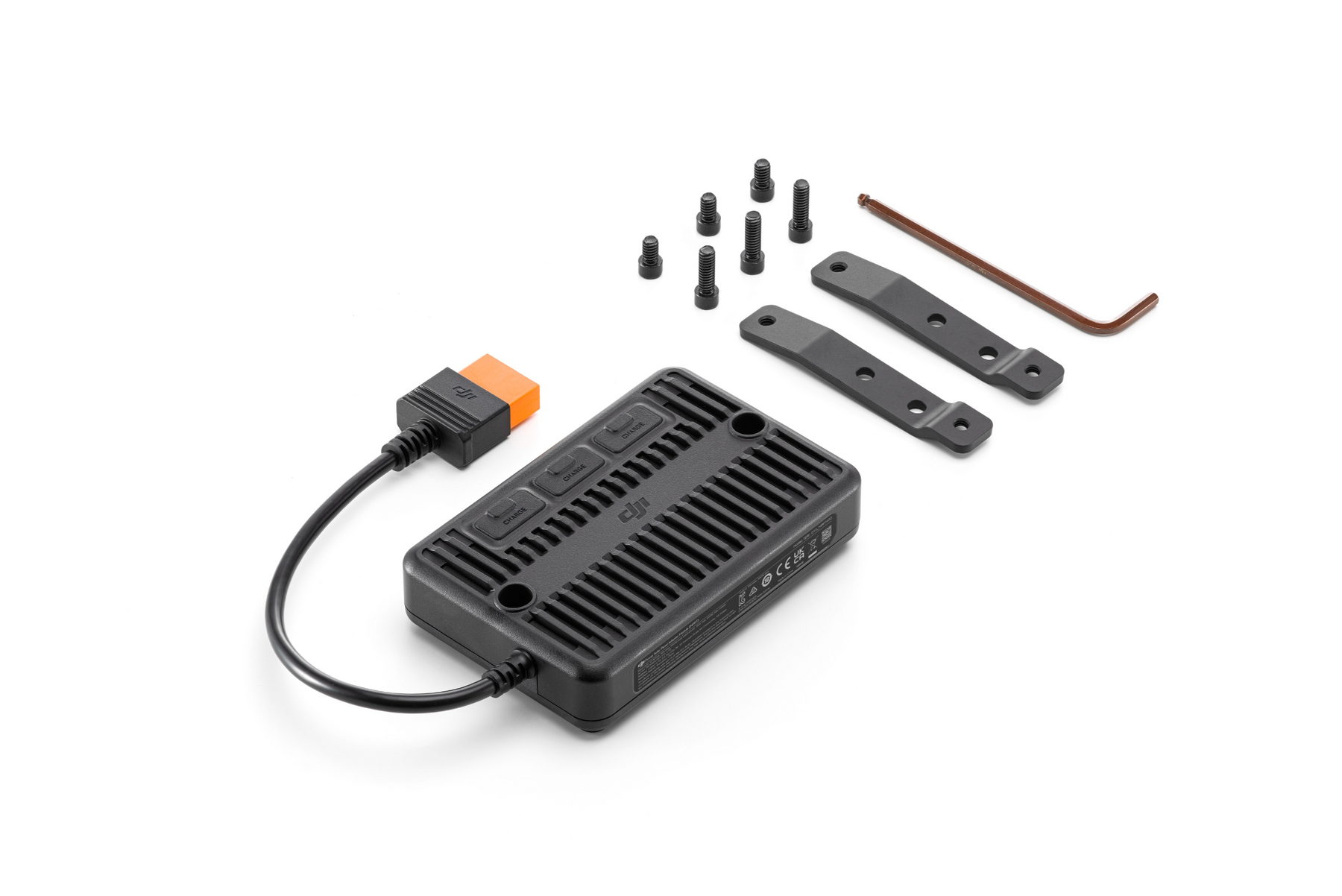

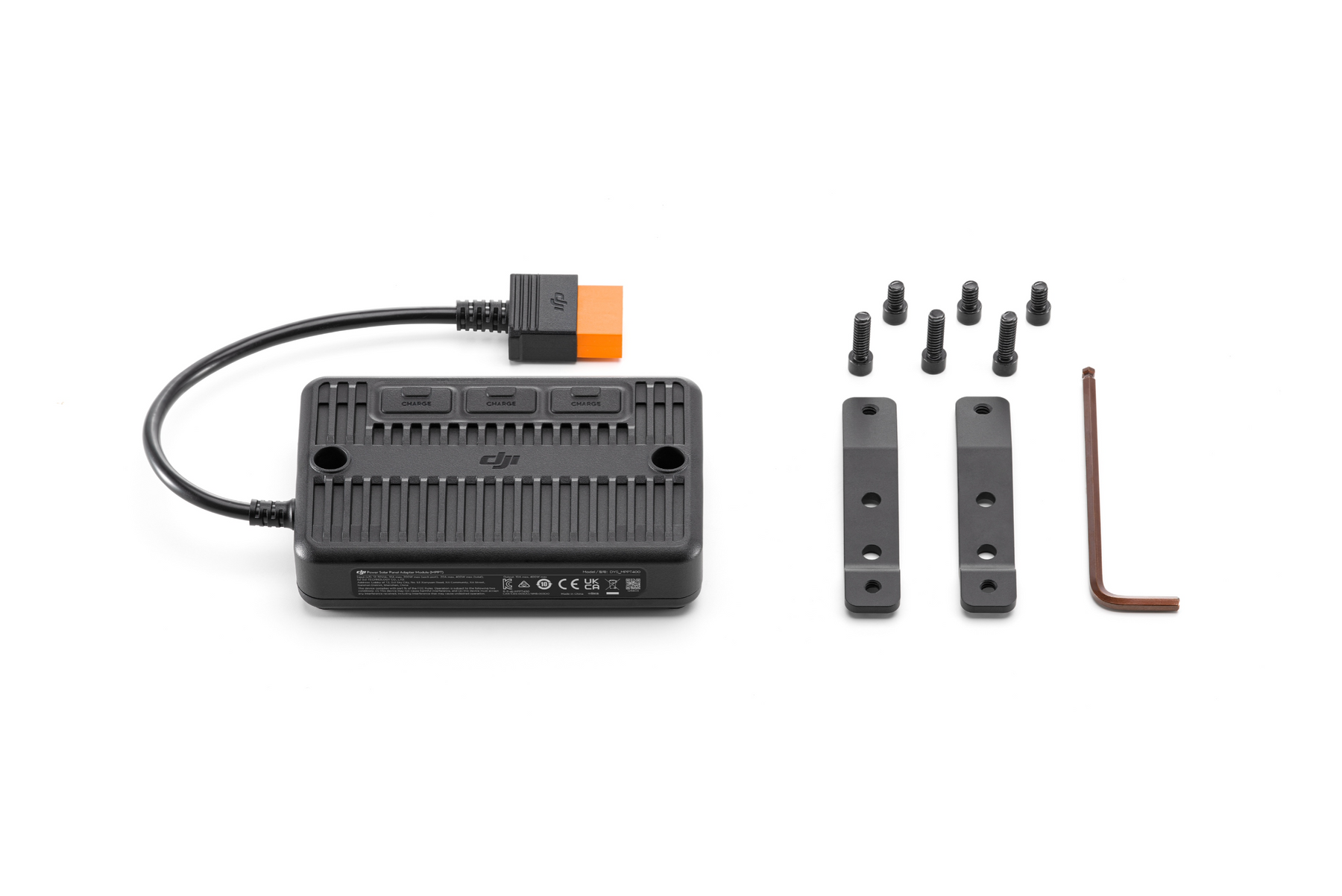

DJI Power Solar Panel Adapter Module (MPPT) × 1
Metal Heat Dissipation Bracket × 2
Ball-End Hex Key × 1
10mm Screw × 3
20mm Screw × 3
Total Output:
Single Channel:
Max 200 W
Triple Channels:
Max 400 W (with DJI Power 1000)
Max 300 W (with DJI Power 500)
Input Voltage: 12-30 V, DC
Max Input Current:
Single Channel: 10 A
Triple Channels: 16 A
Operating Temperature: -10° to 45° C (41° to 113° F)
DJI Power 1000
DJI Power 500
