DJI

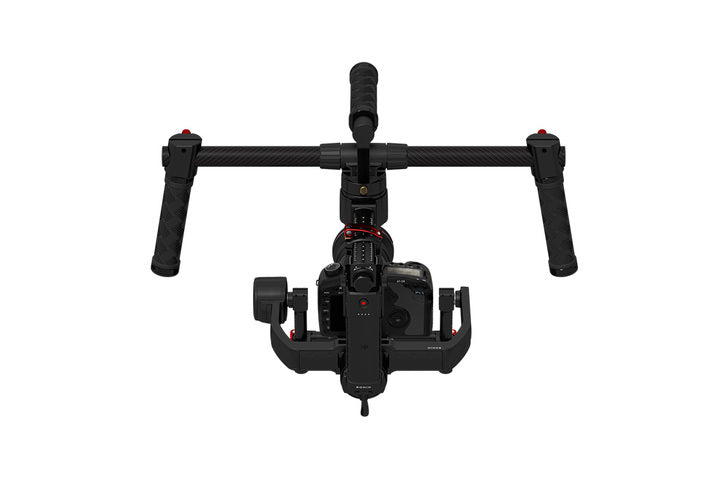

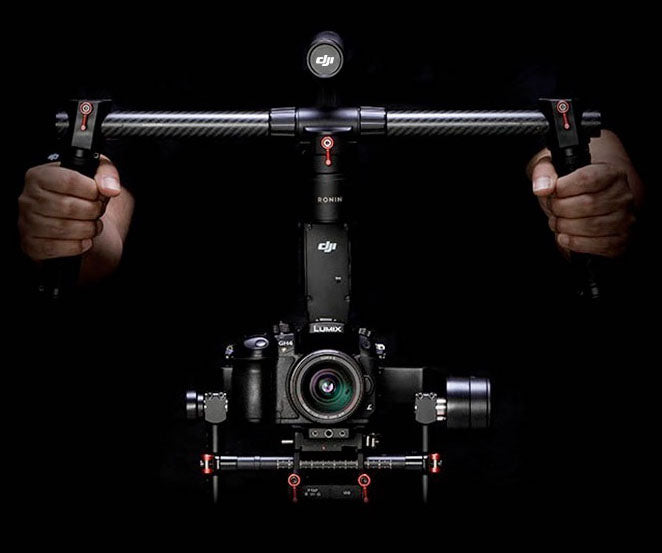

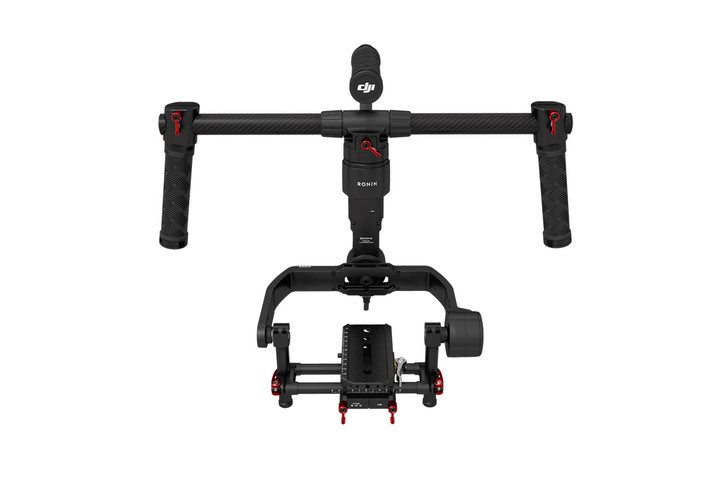

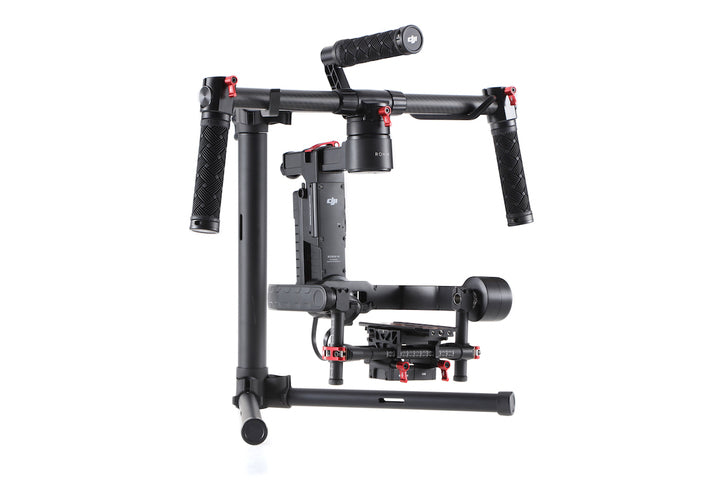

DJI Ronin-M 3-Axis Handheld Gimbal Stabilizer

Sale price$1,299.00 CAD Regular price$1,888.00 CAD
Sold out

Pre-Order Only

  • Total weight of 2.3 kg (5.07 lb.)
  • Support cameras up to 3.6 kg (8 lb.)
  • Precision of Control: ±0.02°
  • Tool-Less Balance Adjustment System
  • Transmitter for Remote Pan/Tilt Control
  • Silent mode for quiet operation
  • USB and Power Tap Power Outputs
  • Assistant Software for iOS and Windows
  • Bluetooth Wireless Interface for Setup

Specification

Performance
Load Weight (Reference Value) 8 lb / 3.6 kg
Angular Vibration Range ±0.02°
Maximum Controlled Rotation Speed Pan Axis: 90°/s
Tilt Axis: 100°/s
Roll Axis: 30°/s
Mechanical Endpoint Range Pan Axis Control: 360°/s
Tilt Axis Control: +105° /-165°/s
Roll Axis Control: ± 110°/s
Controlled Rotation Range Pan Axis Control: 360°/s
Tilt Axis Control: +105° /-165°/s
Roll Axis Control: ± 25°/s
Electrical and Mechanical
Motor Type 3 x Brushless
Working Current Static Current: 300 mA (at 16 VDC)
Dynamic Current: 600 mA (at 16 VDC)
Locked Motor Current: 10 A maximum (at 16 VDC)
Sensors Independent IMU module
Temperature sensor
Processing 32-bit DSP processor
Receiver
Frequency 2.4 GHz
Expandability D-Bus receiver supported
Connectivity
Wireless 2.4 GHz for transmitter (remote controller)
Bluetooth 4.0
Wired 2 x 12 VDC regulated PowerTap
1 x USB power output (500 mW)
1 x DJI Lightbridge interface
System Requirements
Assistant Software Desktop: Windows (32- or 64-bit): 8, 7, XP SP3
Mac OS X: 10.9 or above

Mobile:
iOS 7.0 or later
General
Control Modes Underslung Mode
Upright Mode
Briefcase Mode
Supported Camera Dimensions Maximum depth at center of mass on camera base plate: 4.7" / 120 mm
Maximum height measured from top of camera base plate: 7.7" / 195 mm
Maximum width: 6.3" / 160 mm
Power Requirements 4S Ronin-M Battery
Operating Temperature -5 to 122°F / -15 to 50°C
Dimensions (W x D x H) 19.7 x 8.3 x 16.5" / 500 x 210 x 420 mm
Weight 5.07 lb / 2.3 kg (fully loaded with handlebar)
