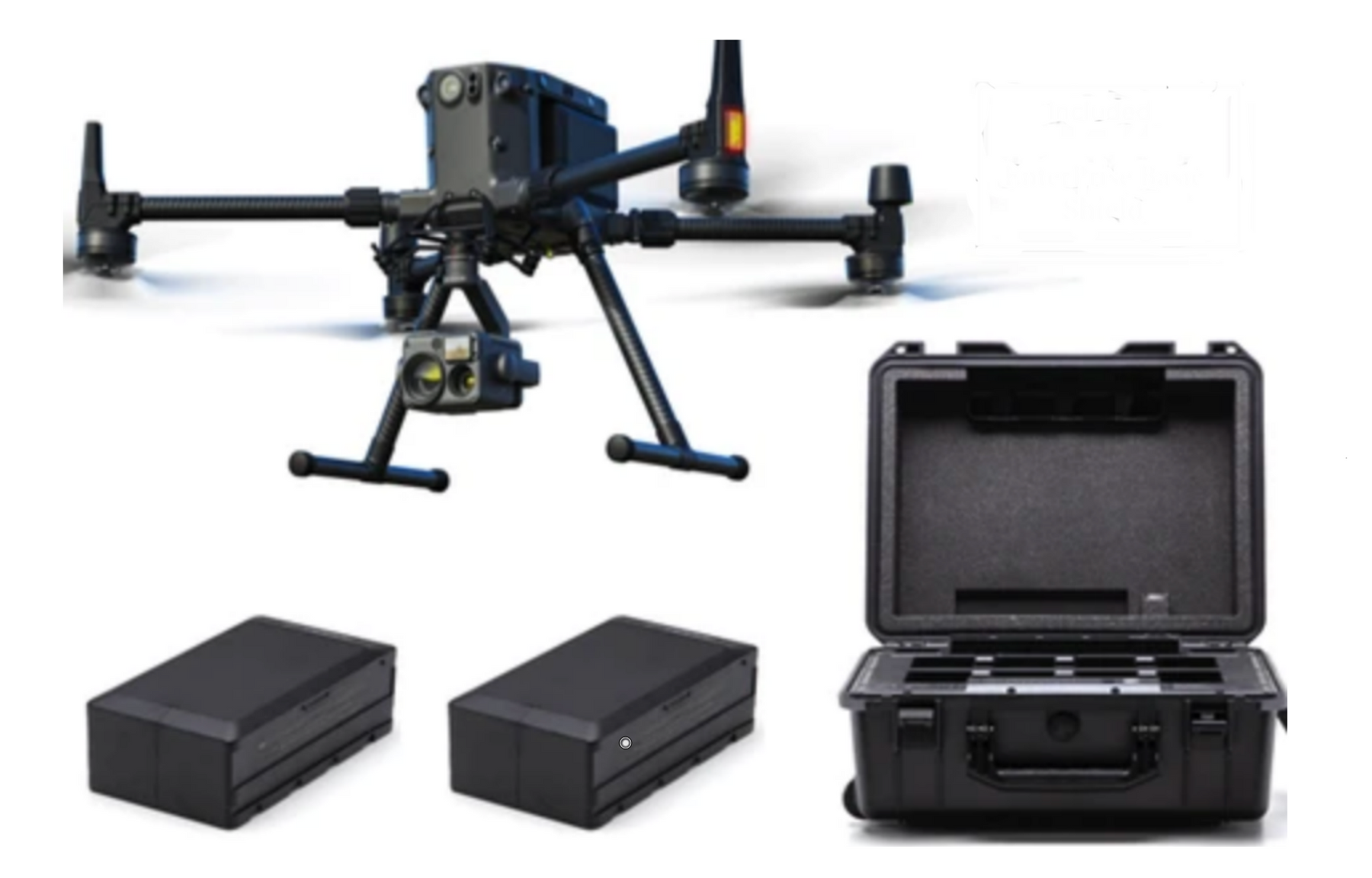

Matrice 300 RTK (NA) Combo (SP)
Matrice 300 RTK (NA) Combo (SP)
Matrice 300 RTK (NA) Combo (SP)

DronePoint Canada

Matrice 300 RTK (NA) Combo (SP)
$13,390.00 CAD
Quantity:
The Matrice 300 RTK is DJI’s latest commercial drone platform that takes inspiration from modern aviation systems. Offering up to 55 minutes of flight time, advanced AI capabilities, 6 Directional Sensing & Positioning and more, the M300 RTK sets a whole new standard by combining intelligence with high-performance and unrivaled reliability.
  • 15 km Max Transmission1
  • 55-min Max Flight Time2
  • 6 Directional Sensing & Positioning
  • Primary Flight Display
  • IP45 Rating
  • -20°C to 50°C Operating Temperature
  • Hot-swappable Battery
  • UAV Health Management System

Superior Performance

Improved Transmission System

The all-new OcuSync Enterprise enables transmission up to 15 km away and supports triple-channel3 1080p video. Real-time auto-switching between 2.4 GHz and 5.8 GHz4 enables more reliable flight near high-interference environments, while AES-256 encryption offers secure data transmission.

15km

Transmission Range

1080p

Triple-channel Video

2.4 /5.8GHz

Real-time Auto-switching


Enhanced Flight Performance

The refined airframe and propulsion system design gives you a more efficient and stable flight, even in harsh conditions.

55min

Max Flight Time

7m/s

Max Descend Speed5

7000m

Service Ceiling6

15m/s

Wind Resistance

23m/s

Max Speed

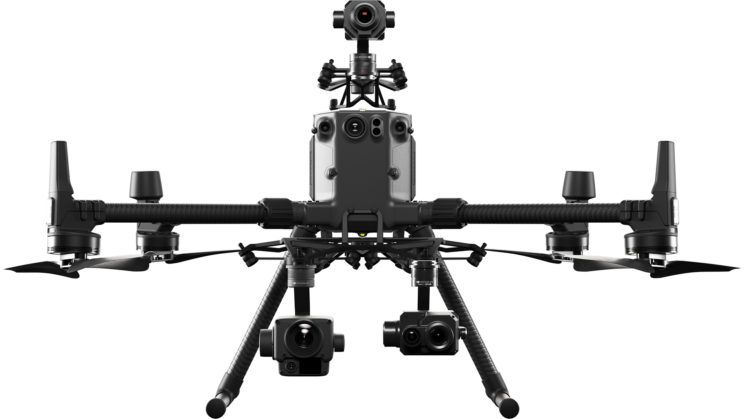

Multiple Payload Configurations

Configure your M300 RTK to fit your mission needs. Mount up to 3 payloads simultaneously, with a maximum payload capacity of 2.7 kg.


Single Downward Gimbal

Single Upward Gimbal x Single Downward Gimbal

Single Upward Gimbal x Dual Downward Gimbals

Advanced Intelligence





Smart Inspection

Live Mission Recording

Record mission actions such as aircraft movement, gimbal orientation, photo shooting, and zoom level to create sample mission files for future automated inspections.

AI Spot-Check7

Automate routine inspections and capture consistent results every time. Onboard AI recognizes the subject of interest and identifies it in subsequent automated missions to ensure consistent framing.

Waypoints 2.0

Create up to 65,535 waypoints and set multiple actions for one or more payloads, including 3rd party ones, at each waypoint. Flightpath planning is also optimized to maximize flexibility and efficiency for your missions.




Smart Pin & Track8

PinPoint

Mark an object in camera or map view with a quick tap, and advanced sensor fusion algorithms will immediately calculate its coordinates, which are projected to all camera views as an AR icon. The location of the subject is automatically shared with another remote controller, or to online platforms such as DJI FlightHub9.

Smart Track

Identify and follow moving subjects like people, vehicles, and boats with the Smart Track function, where auto-zoom is applied for steady tracking and viewing. The subject’s dynamic location is continuously acquired and shared to another remote controller or to DJI FlightHub9.

Aviation-Grade Situational Awareness

The M300 RTK adopts a new Primary Flight Display (PFD) that integrates flight, navigation, and obstacle information to empower the pilot with exceptional situational awareness.


Flight Information

Flight Information

Flight information such as aircraft attitude, altitude, and velocity, as well as wind speed and wind direction, are all intuitively presented.
Flight information such as aircraft attitude, altitude, and velocity, as well as wind speed and wind direction, are all intuitively presented.

Navigation Display

Navigation Display

Pilots can also view the live status of the aircraft’s heading, trajectory, PinPoint information, and home point projection, in a more efficient way. Visualize all nearby obstacles at once with the new obstacle map, so you can be fully informed.
Pilots can also view the live status of the aircraft’s heading, trajectory, PinPoint information, and home point projection, in a more efficient way. Visualize all nearby obstacles at once with the new obstacle map, so you can be fully informed.

Advanced Dual Control

Either operator can now obtain control of the aircraft or payload with a single tap. This creates new possibilities for mission strategies as well as higher flexibility during operations.

Safety and Reliability

A Powerful Vision System You Can Rely On

To enhance in-flight safety and aircraft stability, dual-vision and ToF sensors appear on all six sides of the aircraft, offering a maximum detection range of up to 40 m, with options to customize the aircraft’s sensing behavior via the DJI Pilot App. Even in complex operating environments, this 6 Directional Sensing and Positioning system helps keep the aircraft and the mission safe.



Professional Maintenance for Your Drone Fleet

The new integrated Health Management System displays the current status of all systems, notification logs, and a preliminary troubleshooting guide. Also in the system are the aircraft’s flight logs, duration, and mileage throughout its entire lifecycle, and tips on aircraft care and maintenance.

Download the Maintenance Manual Now


Redundancy Systems for Safer Flights

The M300 RTK’s built-in advanced redundancy systems help keep your critical missions going even in unexpected scenarios.

How Redundant is the M300 RTK?
Explore All Redundant Systems in this Report


More Adaptable Than Ever Before

IP45



Self-Heating Battery



-20°C to 50°C



Anti-Collision Beacon



AirSense ADS-B Receiver




Accessories

Battery Station

Learn More

TB60 Intelligent Flight Battery

Learn More

DJI Smart Controller Enterprise

Learn More

D-RTK 2 Mobile Station10

Learn More

CSM Radar11

Learn More

Compatible Payloads

Zenmuse H20

Hybrid sensor solution with LRF, zoom and wide camera

Learn More

Zenmuse H20T

Hybrid sensor solution with LRF, zoom, wide and thermal camera

Learn More

Zenmuse XT2

Dual-sensor camera with a 4K visual sensor and thermal imaging with <50 mK sensitivity

Learn More

Zenmuse Z30

30× optical zoom camera ideal for detailed inspections

Learn More

Third-Party Payloads

For specialized missions and tasks

Learn More




Flight Time

Estimate your M300 RTK’s flight time based on the payload configuration.

Purpose-built Applications

DJI Pilot

DJI Pilot is developed specifically for enterprise users to unleash the power of their DJI drones. With development made specifically for the M300 RTK, DJI Pilot optimizes your flight capability for peak performance.

DJI FlightHub

DJI FlightHub is a one-stop solution for managing your drone operations, supporting large organizations to effectively scale their aerial operations. Compatible with the M300 RTK, you can integrate FlightHub directly into your existing fleet of DJI drones and leverage its aerial intel across your organization.

Leverage The DJI Ecosystem for Extended Solutions

Payload SDK

Integrate a variety of 3rd party payloads like gas detectors, loudspeakers, multispectral sensors, and more. Payload SDK supports DJI SkyPort, DJI SkyPort V2, and DJI X-Port. These greatly reduce the payload development lifecycle and maximize the potential of your payloads in more diverse scenarios.

Learn More

Onboard SDK

Harness the full computing power of your M300 RTK. Onboard SDK supports customized development of a wide range of features such as 6 Directional Sensing and Positioning, UAV Health Management System, Waypoints 2.0, and more.

Learn More

Mobile SDK

With a large network of 3rd party mobile applications, you can unlock the capabilities of your drone platform to meet specialized mission needs. Utilizing Mobile SDK, the M300 RTK supports highly customizable mobile app development.

Learn More

Applications

Firefighting

Fight fires and save lives without endangering personnel.

Learn More

Search & Rescue

Act quickly to locate missing people and better plan rescue missions.

Learn More

Law Enforcement

Quickly assess a situation and plan accordingly while improving officer and bystander safety.

Learn More

Powerline Inspection

Easily visualize extensive power line networks in remote areas.

Learn More

Oil & Gas

Conduct inspections of pipelines, well sites, and more while keeping workers away from risky areas.

Learn More

Footnote

1.Unobstructed, free of interference, when FCC compliant. Maximum flight range specification is a proxy for radio link strength and resilience. Always fly your drone within visual line of sight unless otherwise permitted.

2. Actual flight time may vary because of the environment and payload configurations.

3. Each RC supports two streams. Triple-stream channeling is only supported with dual RC.

4. Due to local policies, some countries do not support 5.8 GHz transmission.

5. Achieved in Forward Flight using S Mode.

6. The service ceiling of 7000 m is achievable with high altitude propellers.

7. This feature is only supported when the aircraft is paired with the Zenmuse H20 Series payloads.

8. This feature is only supported when the aircraft is paired with the Zenmuse H20 Series payloads.

9. Support for location sharing via DJI FlightHub is coming soon.

10. D-RTK 2 Mobile Station for Matrice 200 Series V2 and Phantom 4 RTK can be upgraded to support Matrice 300 RTK.

11. The CSM Radar will be available soon.

12. The Zenmuse XT S is only available in select countries and regions.

Built Tough. Works Smart.

  • 15 km Max Transmission
  • 55-min Max Flight Time
  • IP45 Rating
  • Smart Inspection
  • Smart Pin & Track
  • Primary Flight Display

Specifications:

Aircraft

  • Dimensions

  • Unfolded, propellers excluded, 810×670×430 mm (L×W×H)
    Folded, propellers included, 430×420×430 mm (L×W×H)

  • Diagonal Wheelbase

  • 895 mm

  • Weight (with single downward gimbal)

  • Approx. 3.6 kg (without batteries)
    Approx. 6.3 kg (with two TB60 batteries)

  • Max Payload

  • 2.7 kg

  • Max Takeoff Weight

  • 9 kg

  • Operating Frequency

  • 2.4000-2.4835 GHz
    5.725-5.850 GHz

  • EIRP

  • 2.4000-2.4835 GHz:
    29.5 dBm (FCC); 18.5dBm (CE)
    18.5 dBm (SRRC); 18.5dBm (MIC)

    5.725-5.850 GHz:
    28.5 dBm (FCC); 12.5dBm (CE)
    28.5 dBm (SRRC)

  • Hovering Accuracy (P-mode with GPS)

  • Vertical:
    ±0.1 m (Vision System enabled)
    ±0.5 m (GPS enabled)
    ±0.1 m (RTK enabled)

    Horizontal:
    ±0.3 m (Vision System enabled)
    ±1.5 m (GPS enabled)
    ±0.1 m (RTK enabled)

  • RTK Positioning Accuracy

  • When RTK enabled and fixed:
    1 cm+1 ppm (Horizontal)
    1.5 cm + 1 ppm (Vertical)

  • Max Angular Velocity

  • Pitch: 300°/s, Yaw: 100°/s

  • Max Pitch Angle

  • 30° (P-mode, Forward Vision System enabled: 25°)

  • Max Ascent Speed

  • S mode: 6 m/s
    P mode：5 m/s

  • Max Descent Speed (vertical)

  • S mode: 5 m/s
    P mode：3 m/s

  • Max Descent Speed (tilt)

  • S Mode: 7 m/s

  • Max Speed

  • S mode: 23 m/s
    P mode：17 m/s

  • Service Ceiling Above Sea Level

  • 5000 m (with 2110 propellers, takeoff weight ≤ 7 kg) / 7000 m (with 2195 propellers, takeoff weight ≤ 7 kg)

  • Max Wind Resistance

  • 15 m/s

  • Max Flight Time

  • 55 min

  • Supported DJI Gimbals

  • Zenmuse XT2/XT S/Z30/H20/H20T

  • Supported Gimbal Configurations

  • Single Downward Gimbal, Dual Downward Gimbals, Single Upward Gimbal, Upward and Downward Gimbals, Triple Gimbals

  • Ingress Protection Rating

  • IP45

  • GNSS

  • GPS+GLONASS+BeiDou+Galileo

  • Operating Temperature

  • -20°C to 50°C (-4°F to 122° F)

Remote Controller

  • Operating Frequency

  • 2.4000-2.4835 GHz
    5.725-5.850 GHz

  • Max Transmitting Distance (unobstructed, free of interference)

  • NCC/FCC: 15 km
    CE/MIC: 8 km
    SRRC: 8 km

  • EIRP

  • 2.4000-2.4835 GHz:
    29.5 dBm (FCC) 18.5dBm (CE)
    18.5 dBm (SRRC); 18.5dBm (MIC)

    5.725-5.850 GHz:
    28.5 dBm (FCC); 12.5dBm (CE)
    20.5 dBm (SRRC)

  • External battery

  • Name: WB37 Intelligent Battery
    Capacity: 4920 mAh
    Voltage: 7.6V
    Type: LiPo
    Energy: 37.39Wh
    Charging time (using BS60 Intelligent Battery Station): 70 minutes (15°C to 45°C); 130 minutes (0°C to 15°C)

  • Built-in battery

  • Type: 18650 lithium ion battery (5000 mAh @ 7.2 V)
    Charging: Use a USB charger with specification of 12V / 2A
    Rated power: 17 W
    Charging time: 2 hours and 15 minutes (Using a USB charger with specification of 12V / 2A)

  • Battery Life

  • Built-in battery: Approx. 2.5h
    Built-in battery+External battery: Approx. 4.5h

  • USB Power Supply

  • 5 V / 1.5 A

  • Operating Temperature

  • -20°C to 40°C (-4 °F to 104 °F)

Vision System

  • Obstacle Sensing Range

  • Forward/Backward/Left/Right: 0.7-40m
    Upward/Downward: 0.6-30m

  • FOV

  • Forward/Backward/Downward: 65° (H), 50° (V)
    Left/Right/Upward: 75°(H), 60°(V)

  • Operating Environment

  • Surfaces with clear patterns and adequate lighting (> 15 lux)

Infrared ToF Sensing System

  • Obstacle Sensing Range

  • 0.1-8m

  • FOV

  • 30° (±15°)

  • Operating Environment

  • Large, diffuse and reflective obstacles (reflectivity >10%)

Top and bottom auxiliary light

  • Effective lighting distance

  • 5 m

FPV Camera

  • Resolution

  • 960p

  • FOV

  • 145°

  • Frame rate

  • 30 fps

Intelligent Flight Battery

  • Name

  • TB60

  • Capacity

  • 5935 mAh

  • Voltage

  • 52.8 V

  • Battery Type

  • LiPo 12S

  • Energy

  • 274 Wh

  • Net Weight

  • Approx. 1.35 kg

  • Operating Temperature

  • -4°F to 122°F (-20°C to 50°C)

  • Ideal storage temperature

  • 71.6°F to 86°F (22°C to 30°C)

  • Charging Temperature

  • -4°F to 104°F (-20°C to 40°C)
    (When the temperature is lower than 5°C, the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)

  • Charging time

  • Using BS60 Intelligent Battery Station:
    220V input: 60 minutes (fully charging two TB60 batteries), 30 minutes (charging two TB60 batteries from 20% to 90%)
    110V input: 70 minutes (fully charging two TB60 batteries), 40 minutes (charging two TB60 batteries from 20% to 90%)

BS60 Intelligent Battery Station

  • Dimensions

  • 501*403*252mm

  • Net Weight

  • 8.37kg

  • Maximum Capacity

  • TB60 Intelligent Flight Battery × 8
    WB37 Intelligent Battery × 4

  • Input

  • 100-120 VAC, 50-60 Hz / 220-240 VAC, 50-60 Hz

  • Max. Input Power

  • 1070W

  • Output Power

  • 100-120 V: 750 W
    220-240 V: 992 W

  • Operating Temperature

  • -4°F to 104°F (-20°C to 40°C)
