Zignes 100W Solar Panel (CA)

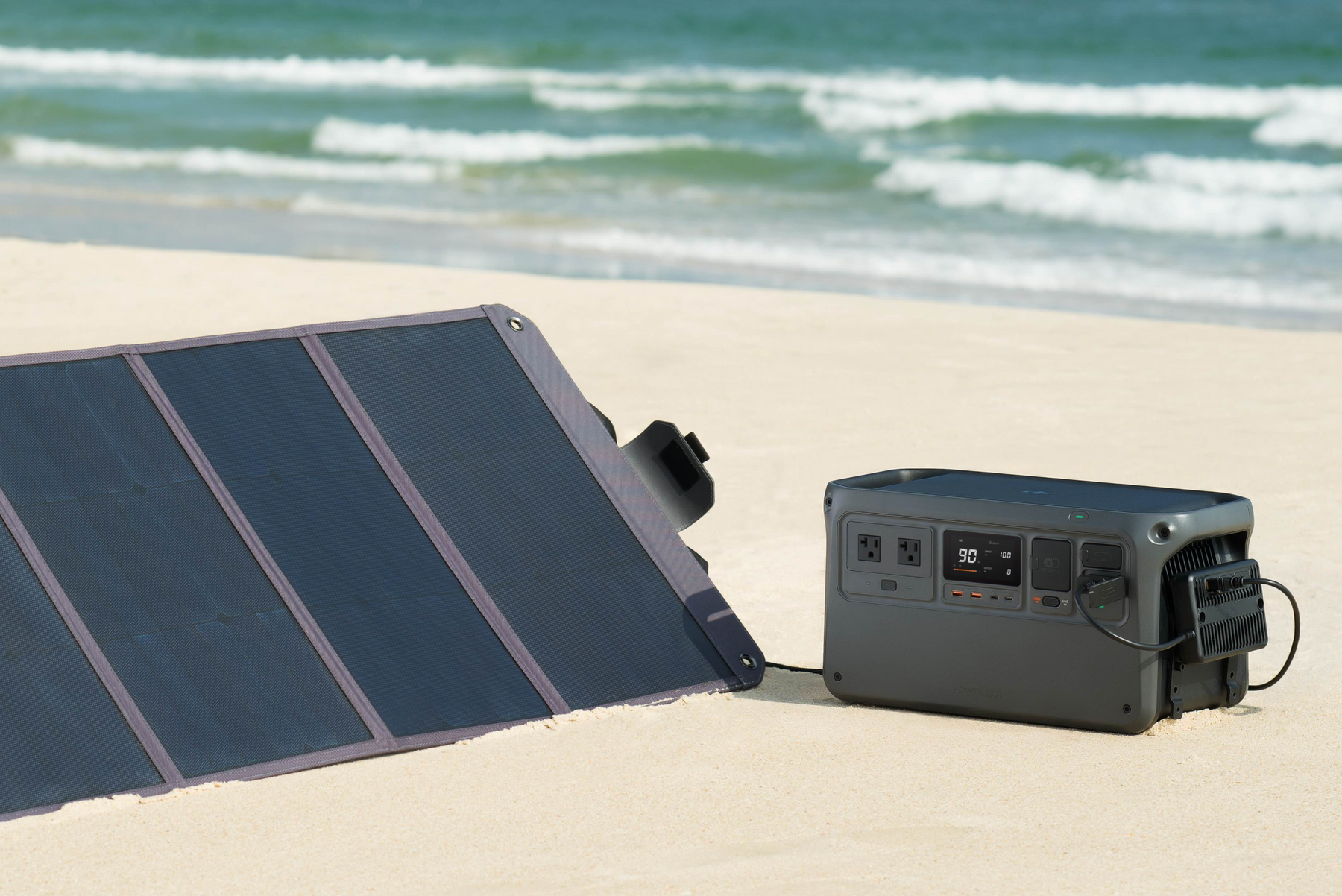

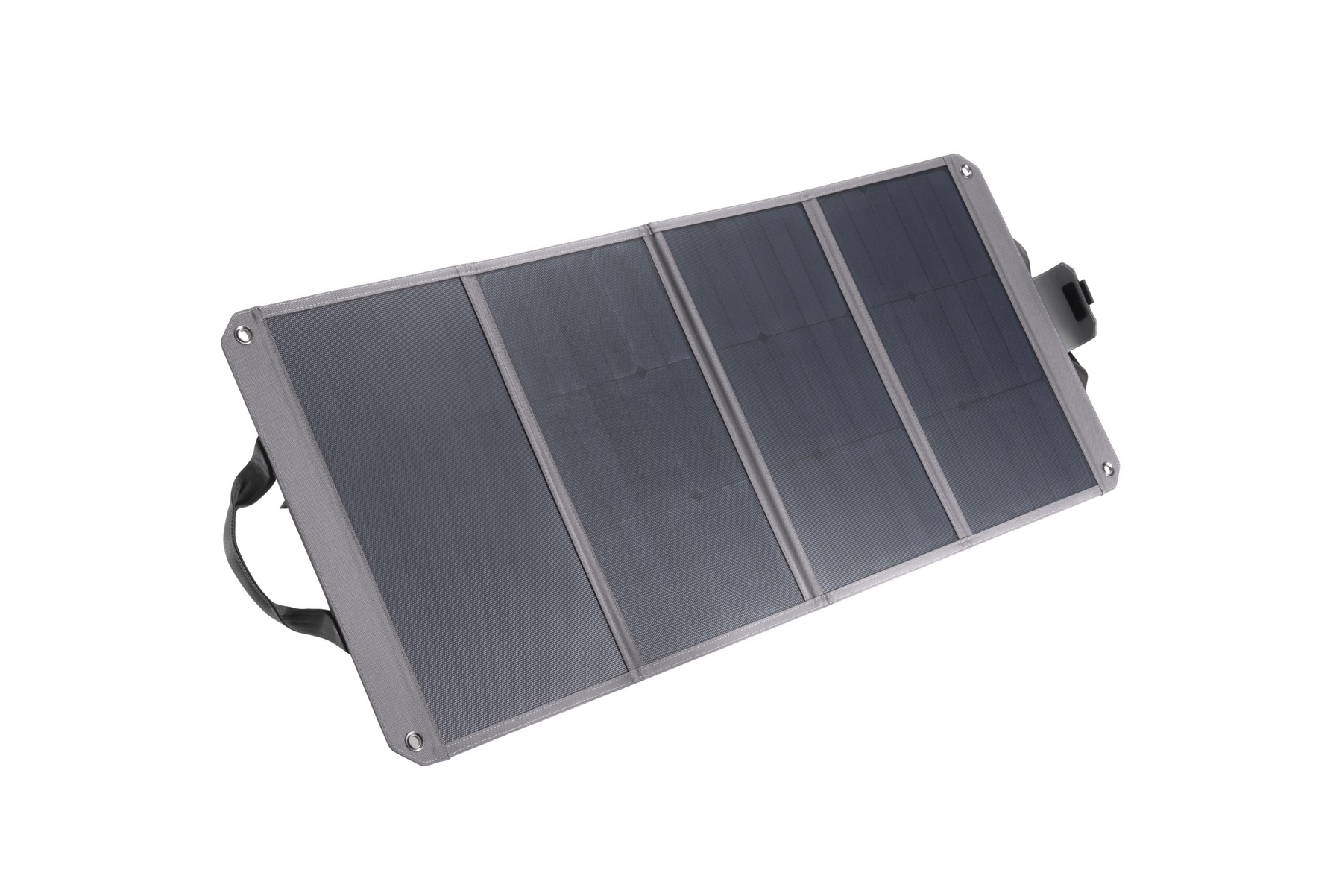

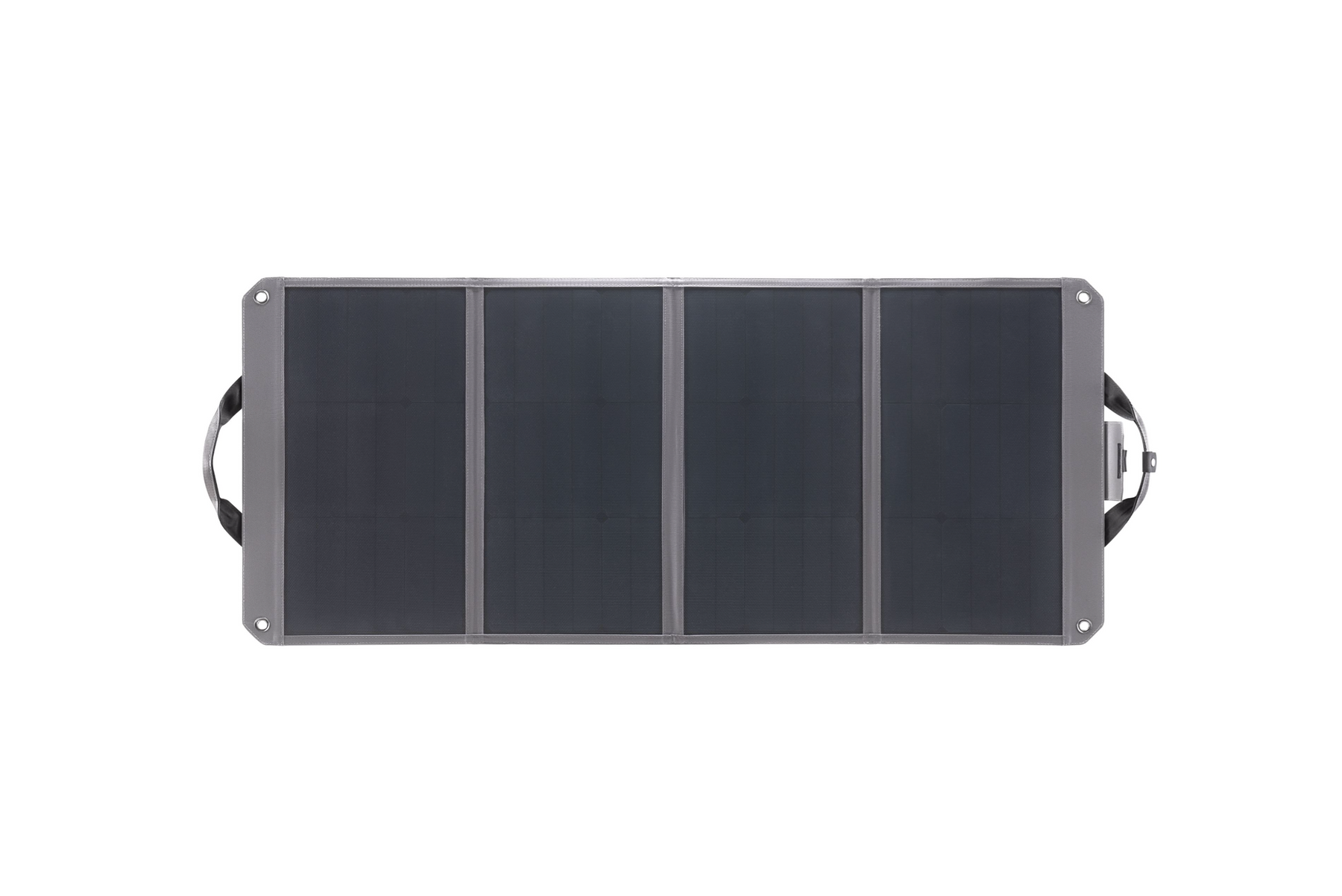

The Zignes solar panel leverages solar energy to eco-recharge the DJI Power-series power stations, with a single panel reaching a max charging output of 100 W.

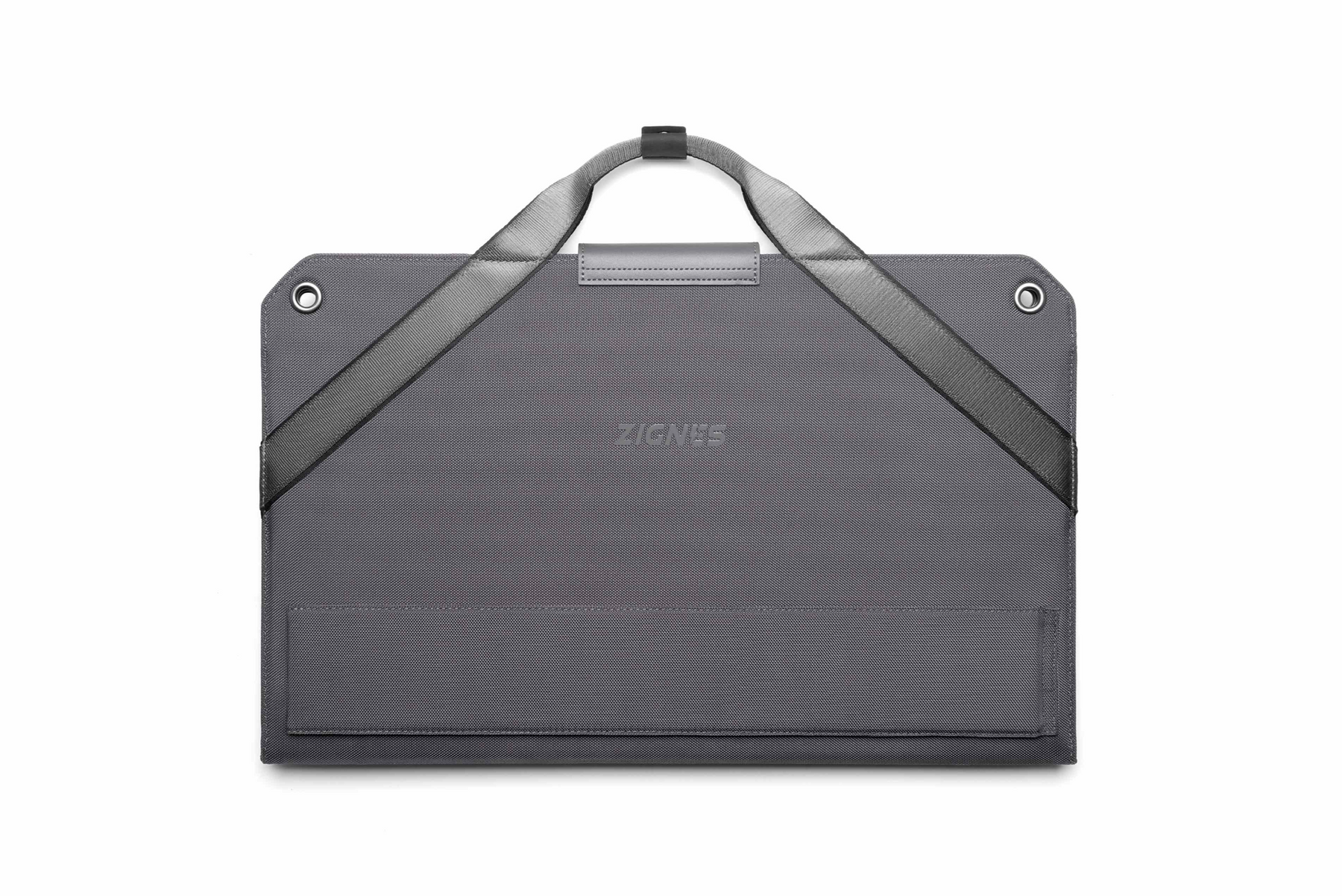

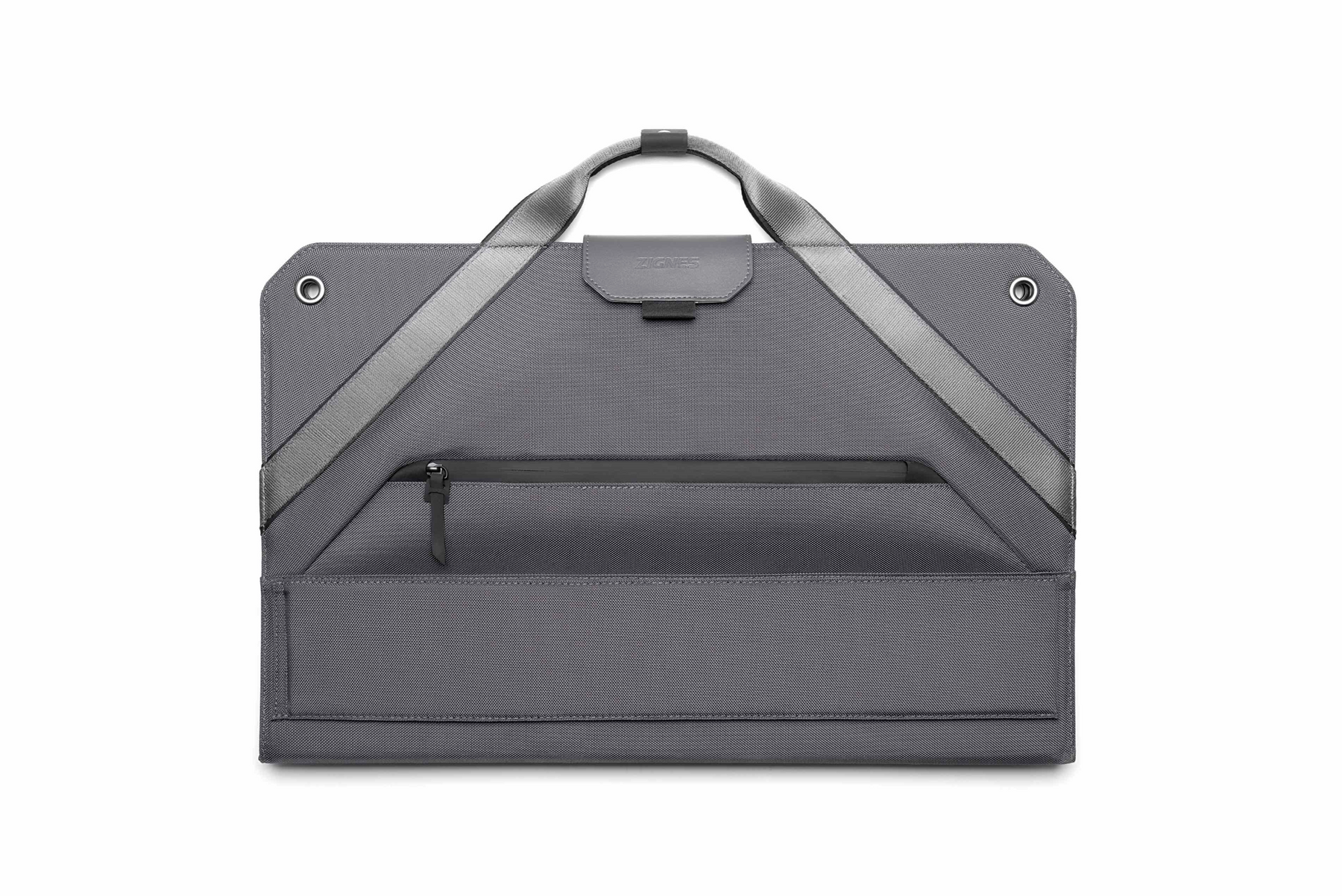

Featuring a foldable design, it is convenient to store and transport, and comes with a stand for easy setup without the need for additional supports.
It includes a 3m extension cable, allowing for flexible placement, such as positioning it in well-lit areas.
Designed with an IP65 rating for dust and water resistance, it accommodates a variety of everyday use scenarios.
Zignes 100W Solar Panel requires the use of a DJI Power Solar Panel Adapter Module (MPPT) or a DJI Power Car Power Outlet to SDC Power Cable (12V/24V)
for connection to the DJI Power-series power stations. Purchase the accessories as needed.
Each DJI Power Solar Panel Adapter Module (MPPT) can then connect to one to three solar panels, while the DJI Power Car Power Outlet to SDC Power Cable (12V/24V) can connect to one solar panel at most.
Warranty Period: 2 year
* After-sales services are provided by DJI.
Zignes 100W Solar Panel × 1
Rated Power: 100 W
Open-circuit Voltage: Max 29 V
Short-circuit Current: Max 6 A
Weight: Approx. 4.1 kg
Unfolded Dimensions: 1286×532×25 mm (L×W×H)
Folded Dimensions: 343×532×50 mm (L×W×H)
Operating Temperature: -20° to 60° C (-4° to 140° F)
DJI Power Solar Panel Adapter Module (MPPT)
DJI Power Car Power Outlet to SDC Power Cable (12V/24V)
• Please read the following shipping instructions carefully. Product that arrives damaged in shipment, without an RMA number or without appropriate warranty information, will be, returned to the sender non-repaired. Products, damaged through neglect due to improper packaging or in shipment, will have the warranty voided and will be processed and returned to you non-repaired. Note: An example of improper packaging would be sending a product back in an envelope.
• Only products and quantities authorized through the Return Material Authorization process will be accepted. If your RMA packing list is in error, ie. Wrong product description, wrong model number, wrong capacity please contact DronePoint Customer Support prior to shipment.
• All products require stable and sufficient packing material, needed to protect the product from ESD (Electro Static Discharge) influences and possible damage during transport. Required Packaging Steps:
A. Place item in ESD (Electro Static Discharge) Bag (For electronics only.)
B. Wrap with 2 inches of bubble wrap or non-movable foam cushioning
C. Place in sturdy cardboard box. Do not use chipboard, as it is not strong enough to withstand the rigors of transit. Please make sure the corrugated carton is free from defects and is structurally sound. Note: Returning an item in an envelope, will void the warranty.
D. Please write the Return Material Authorization number on outside packaging, on three sides in bold print.
E. When shipping multiple items, each item must be, packed as above, items must not directly touch each other and cannot move inside the packaging. All products must be, packed in individual anti-static bags and in a sturdy cardboard box. Please utilize original packaging when available. DO NOT USE peanuts or packing material that can shift or settle during transit. Warning: Returning an item in an envelope, will void the warranty.
• Send your product to the address located on our Page. Retain a record of your RMA number and all tracking/shipping numbers for your records. This will allow DronePoint to better serve you with possible inquiries.
• Your Return Material Authorization number must be visible on 3 sides of the box. Any package sent in without an RMA number will be returned to you non-repaired.
• Use a traceable carrier. Use a traceable carrier for transport or a signed for service (i.e., Airborne, Fed Ex, UPS, XpressPost, etc.) with the post office (Canadian customers only) as they provide you with a tracking number and proof of delivery. The cost of sending an item to our service center for warranty service, is paid by the customer. DronePoint pays for the return shipment. If upon arrival your products are out of warranty the shipment will be returned to you at YOUR COST.
